58
A0608-14.0
HBM:
public
T10F
9.8
Type
of speed output signal
You can use switch S7 to change the symmetrical 5 V
output signal (factory setting) to an asymmetrical signal
of 0 V ... 5 V.
Switch S
7
asymmetrical
symmetrical
Pos.1
Pos.2

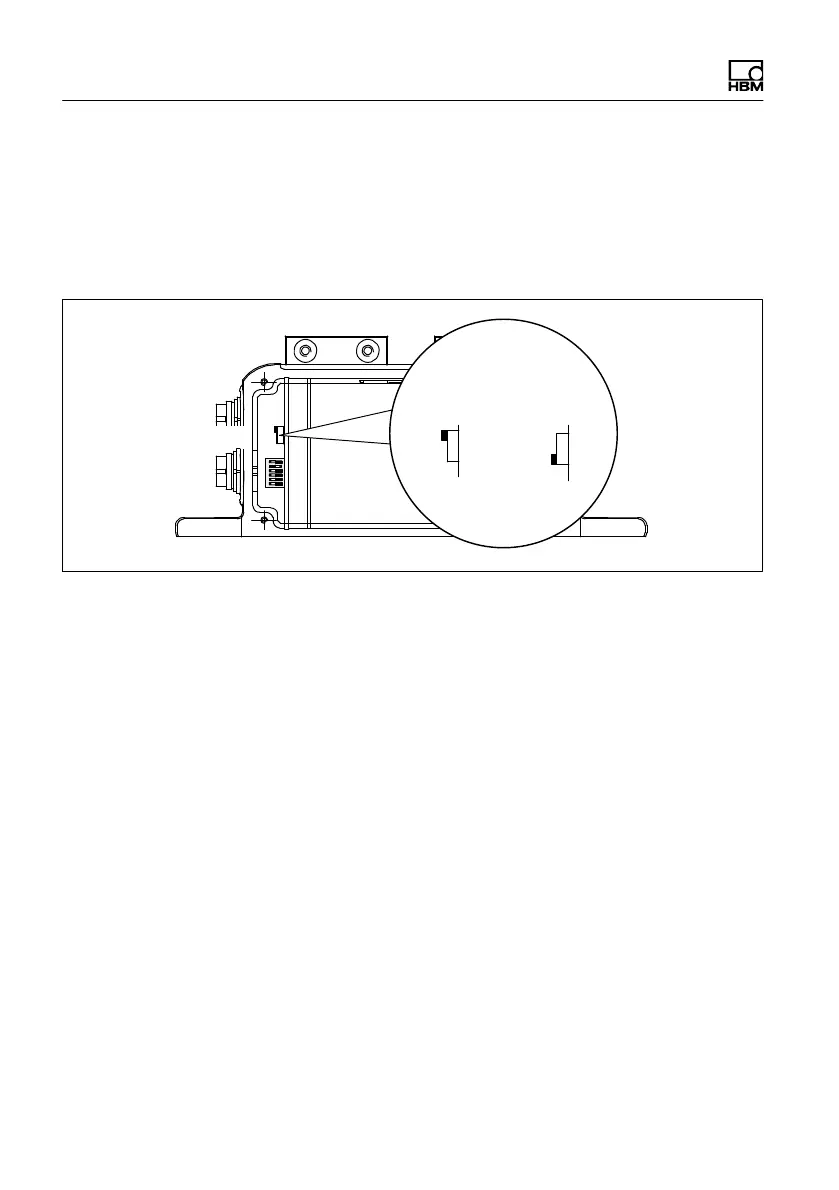

Fig. 9.11
Switch S7; symmetrical/asymmetrical output signal
