HBM T10F - Page 57

Settings
T10F A0608-14.0 HBM: public 57
Direction of
rotation arrow

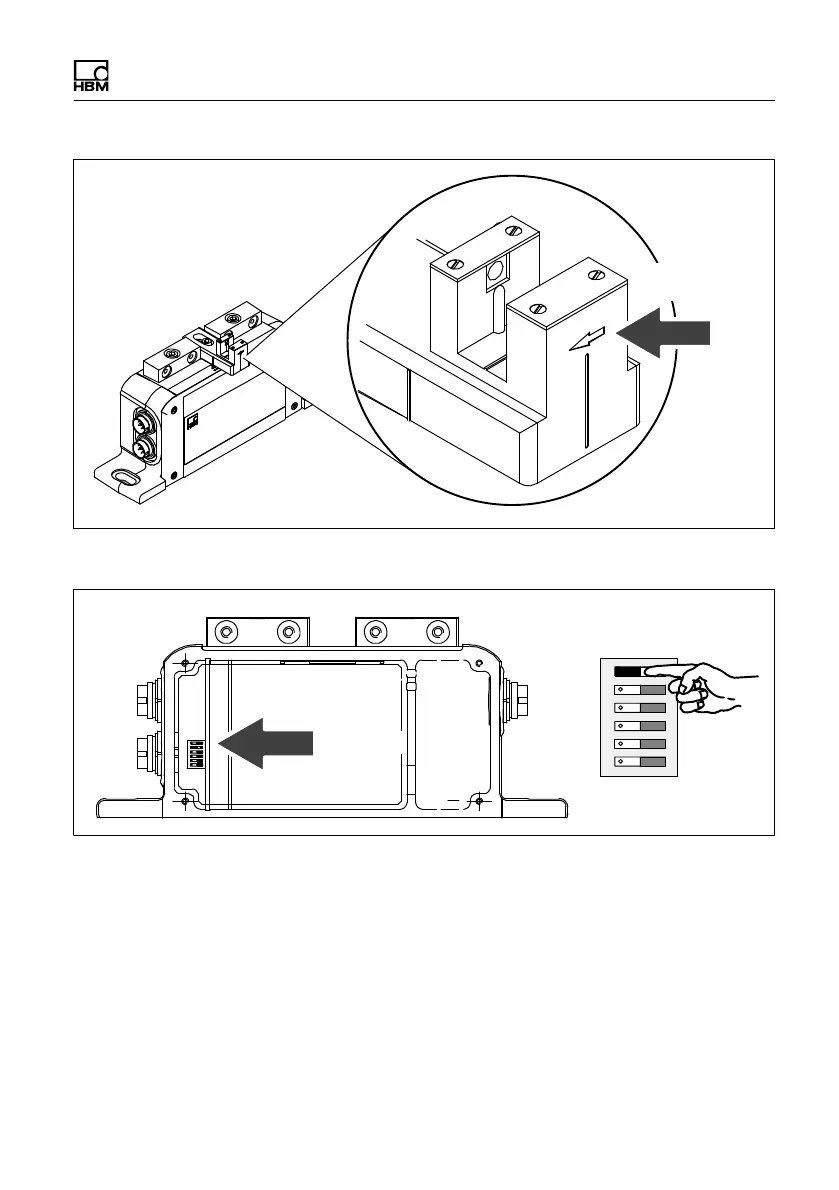

Fig. 9.9 Direction of rotation arrow on the head of the sensor
On Off
S6
Switch S6
Doubling the pulses
Fig. 9.10 Switch for doubling the pulses
