Mechanical installation
32 A0608-14.0 HBM: public T10F
3. Clamp a suitable support element (we recommend a
threaded rod ∅ 3…6mm) between the upper and
lower parts of the clamp fixture and tighten the
clamping screws.
Support
supplied by the
customer, e.g.
threaded rod
Clamp fixture
Fan‐type lock
washers
Antenna segments

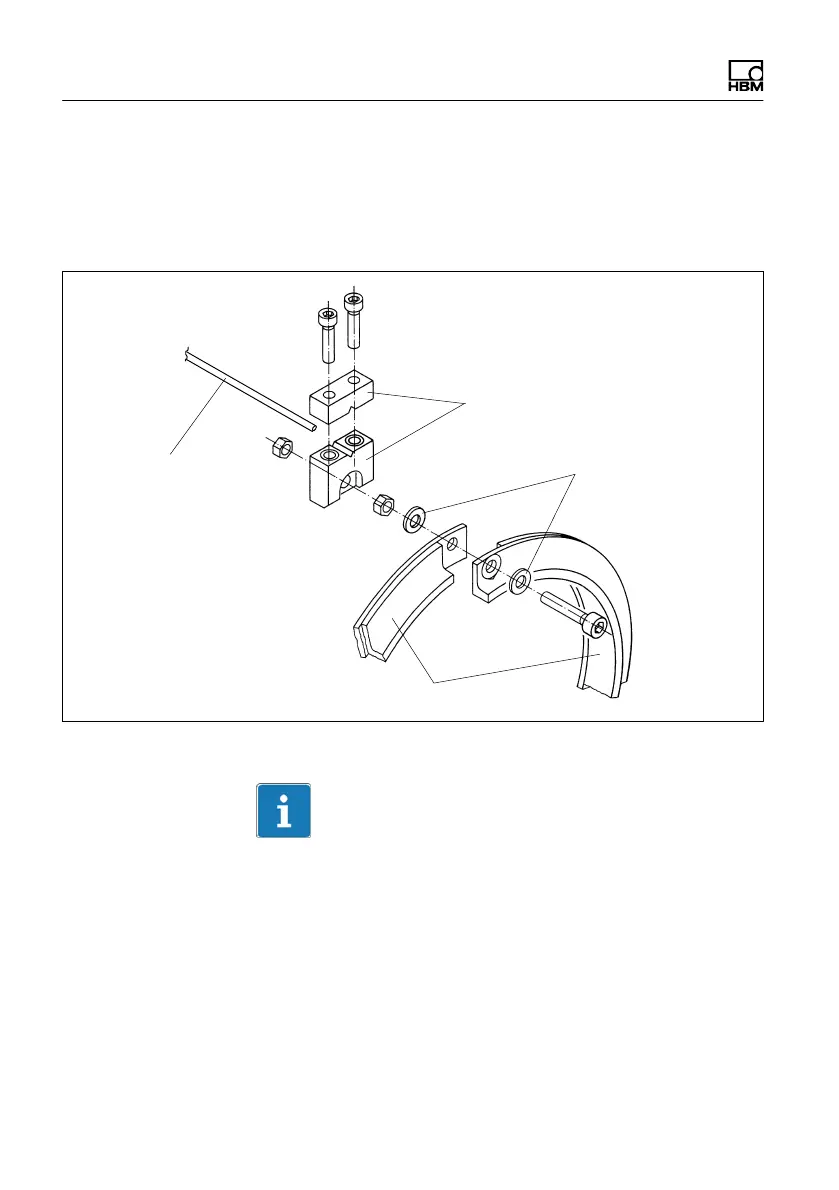

Fig. 6.7 Installing the clamp fixture
Important
Use, e.g. plastic as the material. Do not use metallic
material as this can affect the function of the antenna
(signal transmission).
