Mechanical installation
30 A0608-14.0 HBM: public T10F
4. Install the two antenna segments' upper connecting
screw so that the antenna ring is closed. Also pay
attention to the fantype lock washers.
5. Now fasten all the bolted antenna‐segment
connections with a tightening torque of 5 N⋅m.
6. Align the antenna and rotor so that the antenna
encloses the rotor coaxially. Please comply with the
permissible alignment tolerances stated in the
specifications.
7. Now fully tighten the bolted stator housing connection.

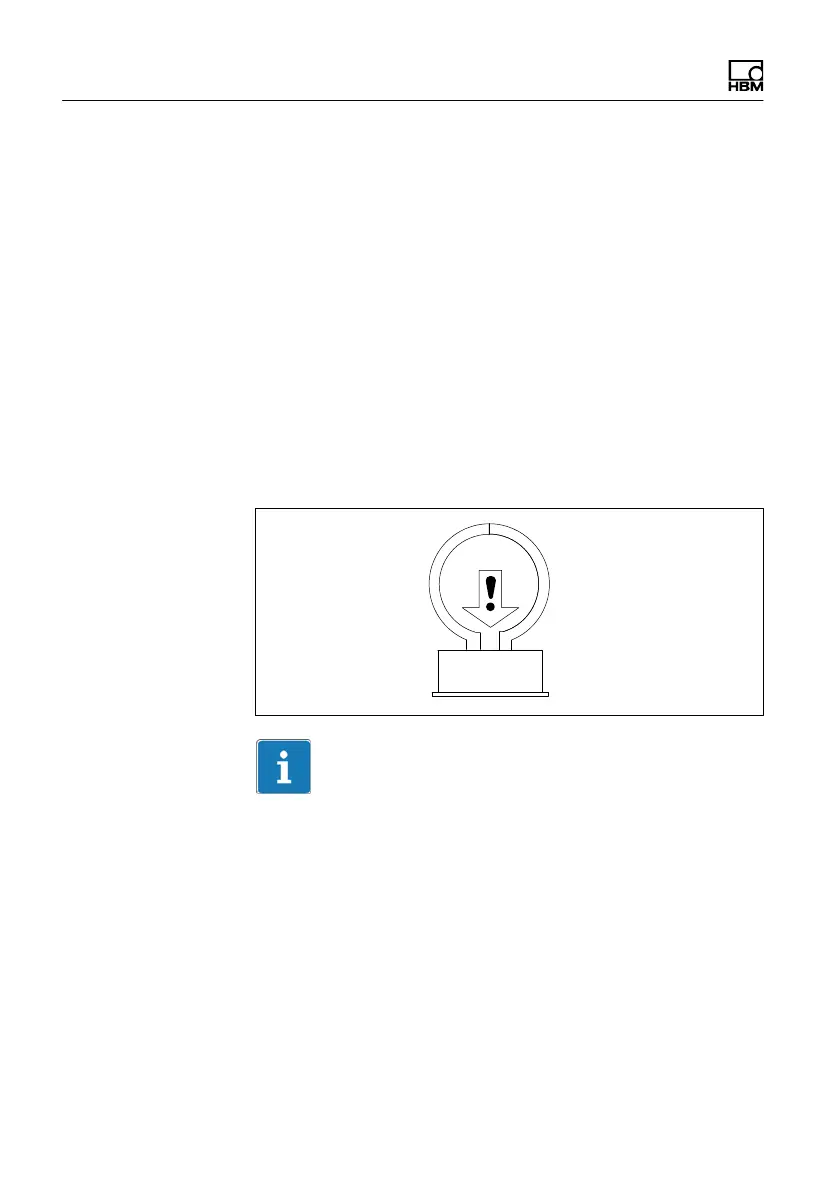

8. Make sure that the gap in the lower antenna segment
area is free of electrically conductive foreign bodies.
Gap
Important
To guarantee that they function perfectly, the fan‐type
lock washers (A5, 3-FST DIN 6798 ZN/galvanized) must
be replaced after the bolted antenna connection has
been loosened three times.
