76 Introduction

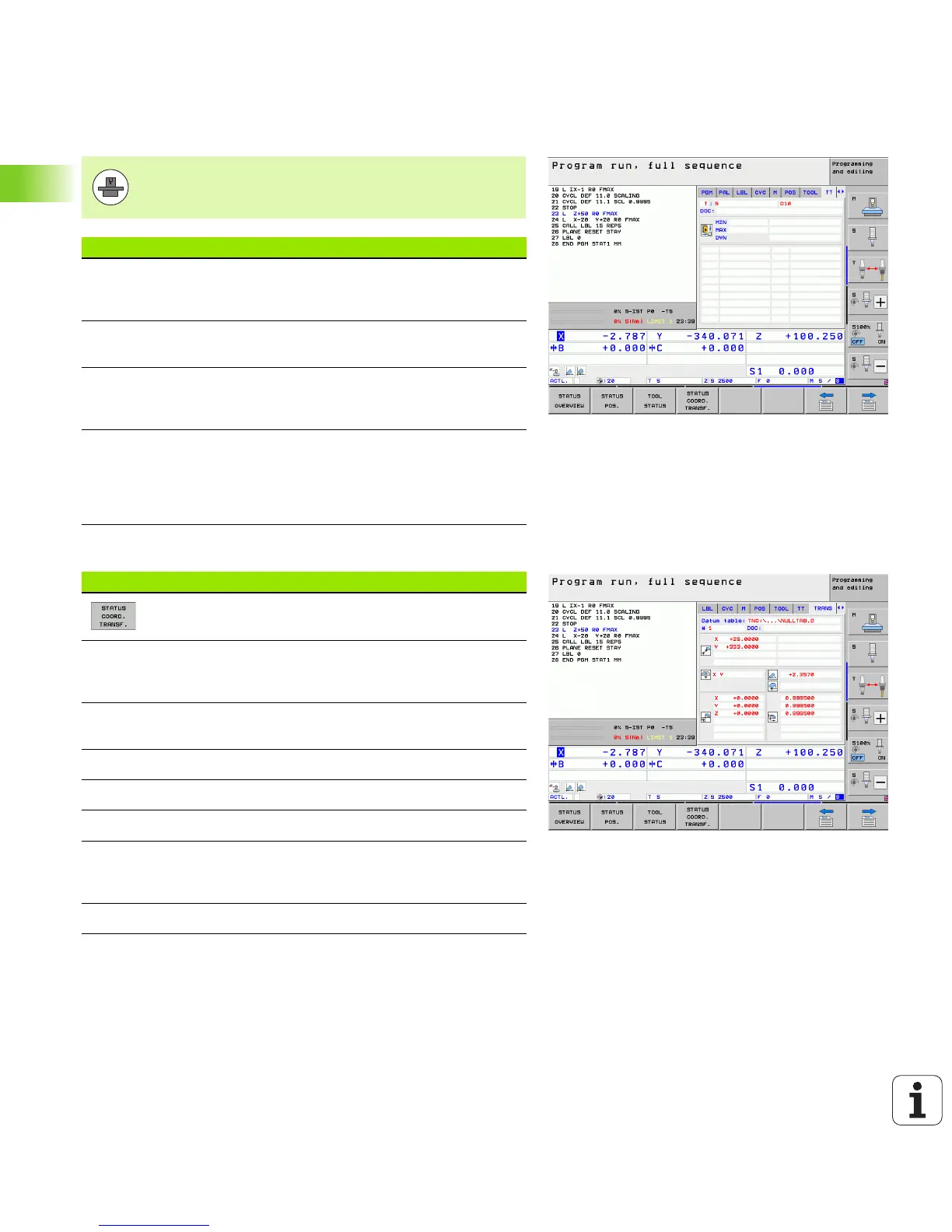

2.4 Status Displays
Tool measurement (TT tab)
Coordinate transformations (TRANS tab)
For further information, refer to the User's Manual for Cycles,
"Coordinate Transformation Cycles."
The TNC only displays the TT tab if the function is active
on your machine.
Soft key Meaning
No direct
selection
possible
Number of the tool to be measured
Display whether the tool radius or the tool length
is being measured
MIN and MAX values of the individual cutting
edges and the result of measuring the rotating
tool (DYN = dynamic measurement)
Cutting edge number with the corresponding
measured value. If the measured value is
followed by an asterisk, the allowable tolerance in
the tool table was exceeded The TNC displays the
measured values of up to 24 teeth.
Soft key Meaning
Name of the active datum table
Active datum number (#), comment from the
active line of the active datum number (DOC) from
Cycle G53
Active datum shift (Cycle G54); The TNC displays
an active datum shift in up to 8 axes
Mirrored axes (Cycle G28)
Active basic rotation
Active rotation angle (Cycle G73)
Active scaling factor/factors (Cycles G72); The
TNC displays an active scaling factor in up to 6
axes
Scaling datum
