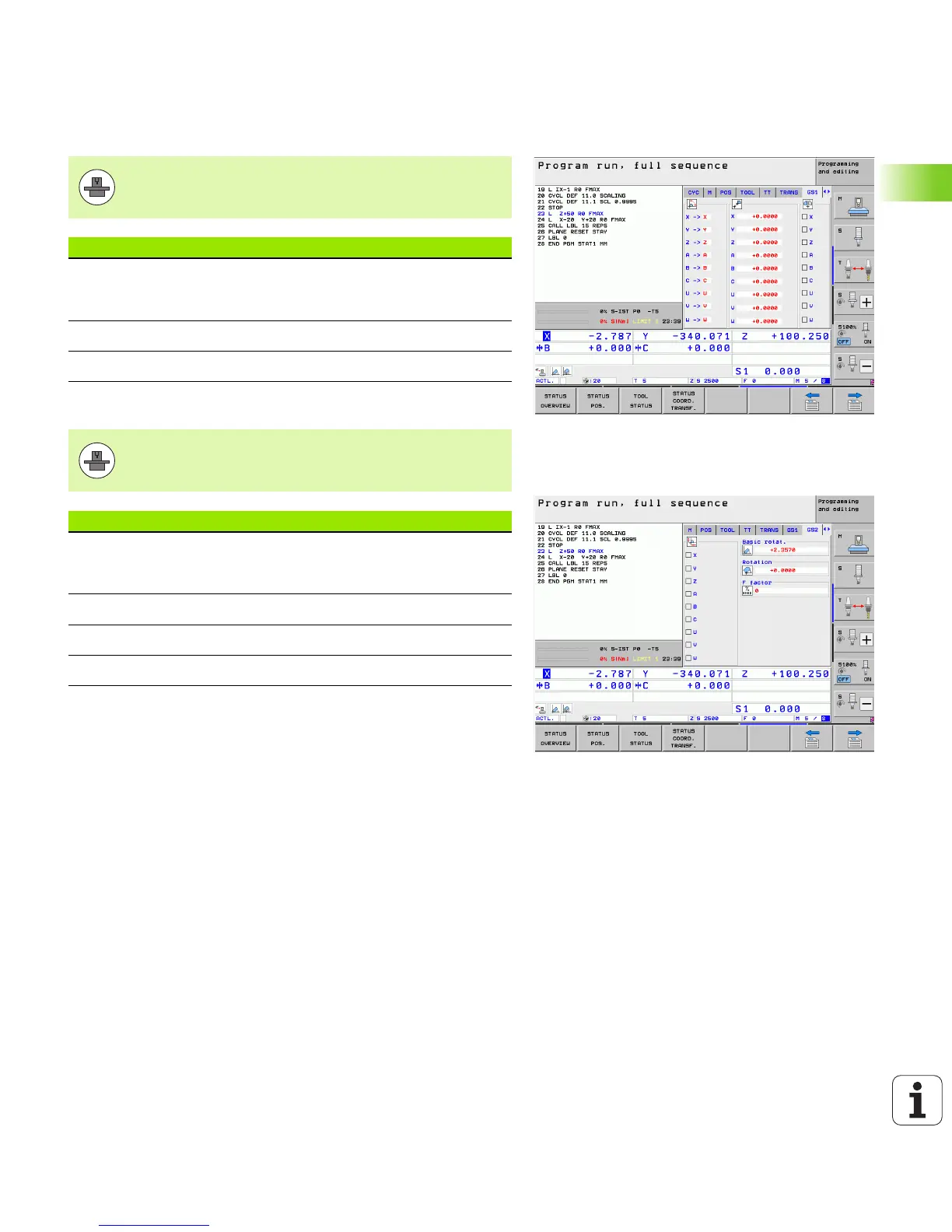

2.4 Status Displays
Global program settings 1 (GPS1 tab, software option)
Global program settings 2 (GPS2 tab, software option)
The TNC only displays the tab if the function is active on
your machine.
Soft key Meaning
No direct
selection
possible
Swapped axes
Superimposed datum shift
Superimposed mirroring
The TNC only displays the tab if the function is active on
your machine.
Soft key Meaning
No direct
selection
possible
Locked axes
Superimposed basic rotation
Superimposed rotation
Active feed rate factor
