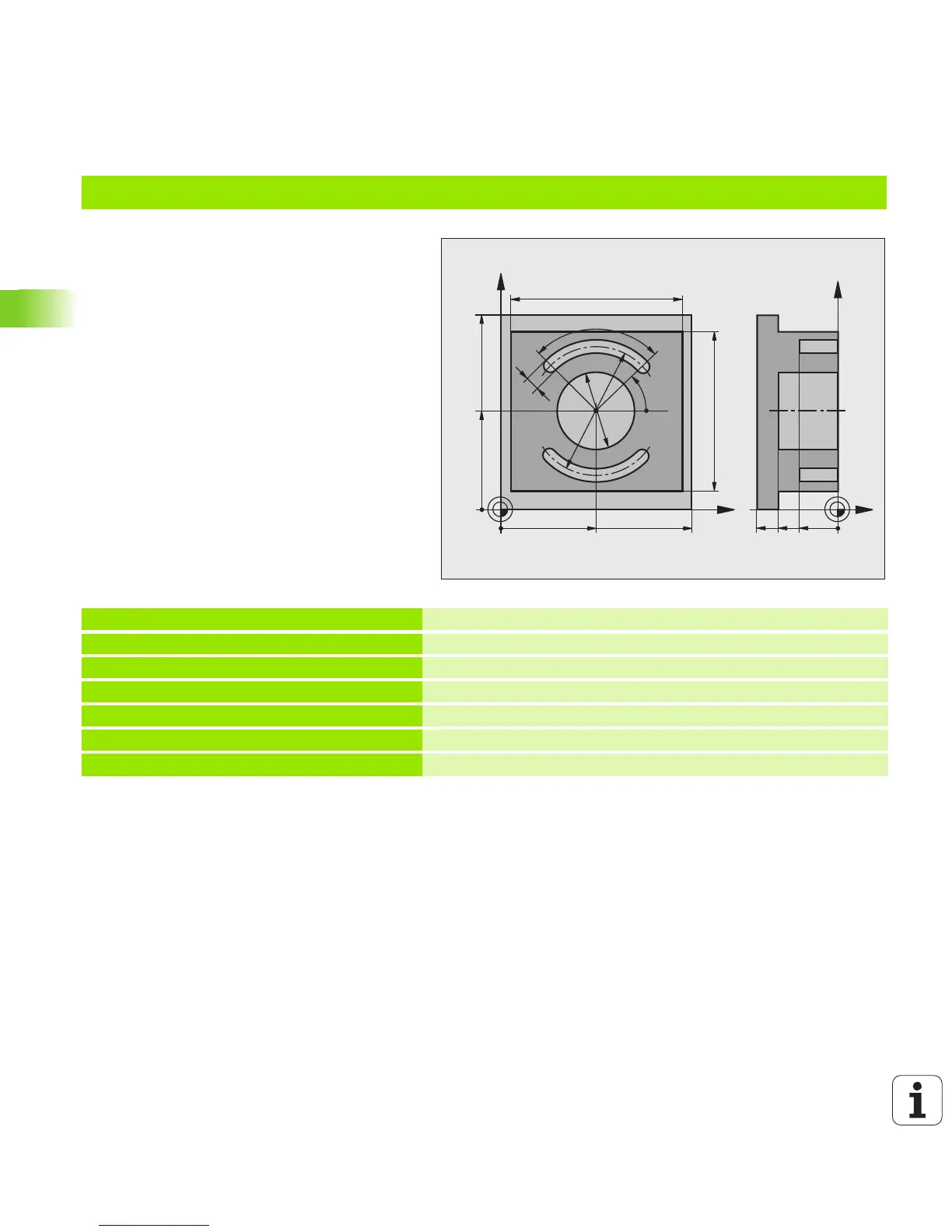

Example: Milling pockets, studs and slots
0 BEGIN PGM C210 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-40 Definition of workpiece blank
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL DEF 1 L+0 R+6 Define the tool for roughing/finishing
4 TOOL DEF 2 L+0 R+3 Define slotting mill
5 TOOL CALL 1 Z S3500 Call the tool for roughing/finishing
6 L Z+250 R0 FMAX Retract the tool
X
Y
50
50
100
100
80
90
8
90°
45°
50
70
Z
Y
-40 -20-30
