HEIDENHAIN ITNC 530 - CYCLE PROGRAMMING - Contour Machining with Sl Cycles

HEIDENHAIN iTNC 530 245
9.1 SL Cycles with Complex Contour Formula

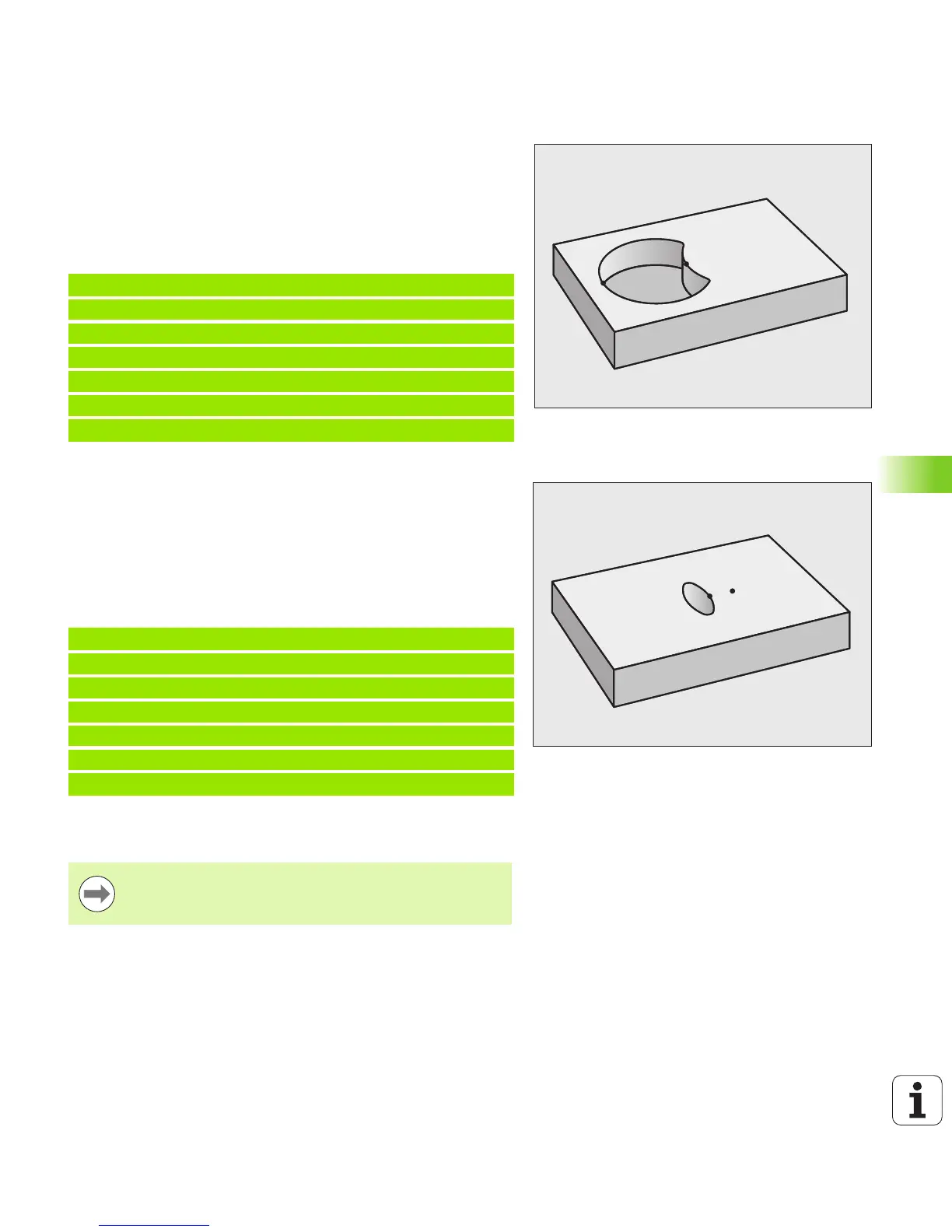

Area of exclusion
Surface A is to be machined without the portion overlapped by B:
 The surfaces A and B must be entered in separate programs without
radius compensation.
 In the contour formula, the surface B is subtracted from the surface
A with the “joined with complement of” function.
Contour definition program:
Area of intersection
Only the area where A and B overlap is to be machined. (The areas
covered by A or B alone are to be left unmachined.)
 The surfaces A and B must be entered in separate programs without
radius compensation.
 In the contour formula, the surfaces A and B are processed with the
“intersection with” function.
Contour definition program:
Contour machining with SL Cycles
A
B
50 ...
51 ...
52 DECLARE CONTOUR QC1 = “POCKET_A.H“
53 DECLARE CONTOUR QC2 = “POCKET_B.H“
54 QC10 = QC1 \ QC2
55 ...
56 ...
A
B
50 ...
51 ...
52 DECLARE CONTOUR QC1 = “POCKET_A.H“
53 DECLARE CONTOUR QC2 = “POCKET_B.H“
54 QC10 = QC1 & QC2
55 ...
56 ...
The complete contour is machined with the SL Cycles 20
to 24 (see “Overview” on page 184).
