72 Fixed Cycles: Drilling
3.1 Basics
3.1 Basics

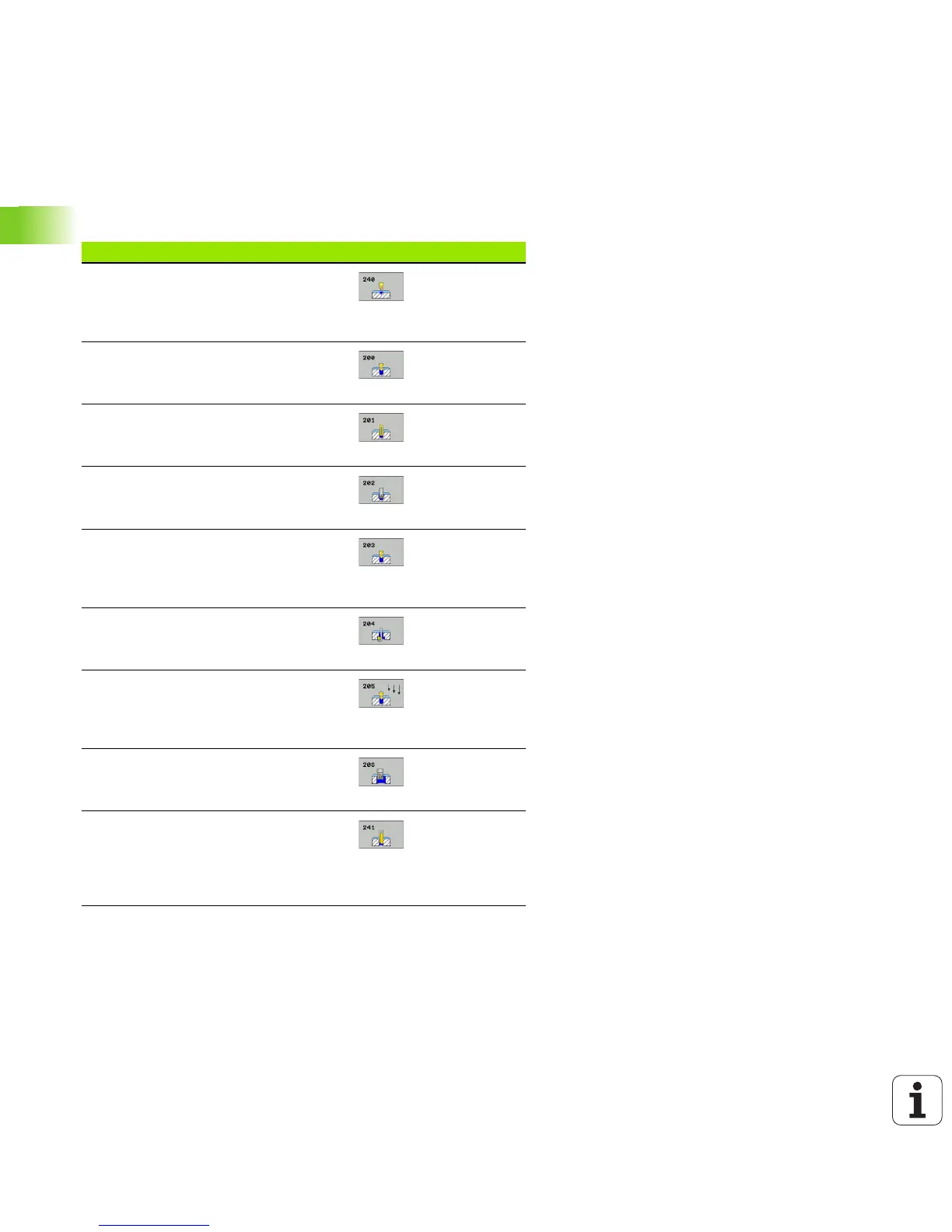

Overview
The TNC offers 9 cycles for all types of drilling operations:
Cycle Soft key Page
240 CENTERING
With automatic pre-positioning, 2nd
set-up clearance, optional entry of the
centering diameter or centering depth
Page 73
200 DRILLING
With automatic pre-positioning, 2nd
setup clearance
Page 75
201 REAMING
With automatic pre-positioning, 2nd
setup clearance
Page 77
202 BORING
With automatic pre-positioning, 2nd
setup clearance
Page 79
203 UNIVERSAL DRILLING
With automatic pre-positioning, 2nd
setup clearance, chip breaking, and
decrementing
Page 83
204 BACK BORING
With automatic pre-positioning, 2nd
setup clearance
Page 87
205 UNIVERSAL PECKING
With automatic pre-positioning, 2nd
setup clearance, chip breaking, and
advanced stop distance
Page 91
208 BORE MILLING
With automatic pre-positioning, 2nd
setup clearance
Page 95
241 SINGLE-LIP DEEP-HOLE
DRILLING
With automatic pre-positioning to
deepened starting point, shaft speed
and coolant definition
Page 98
