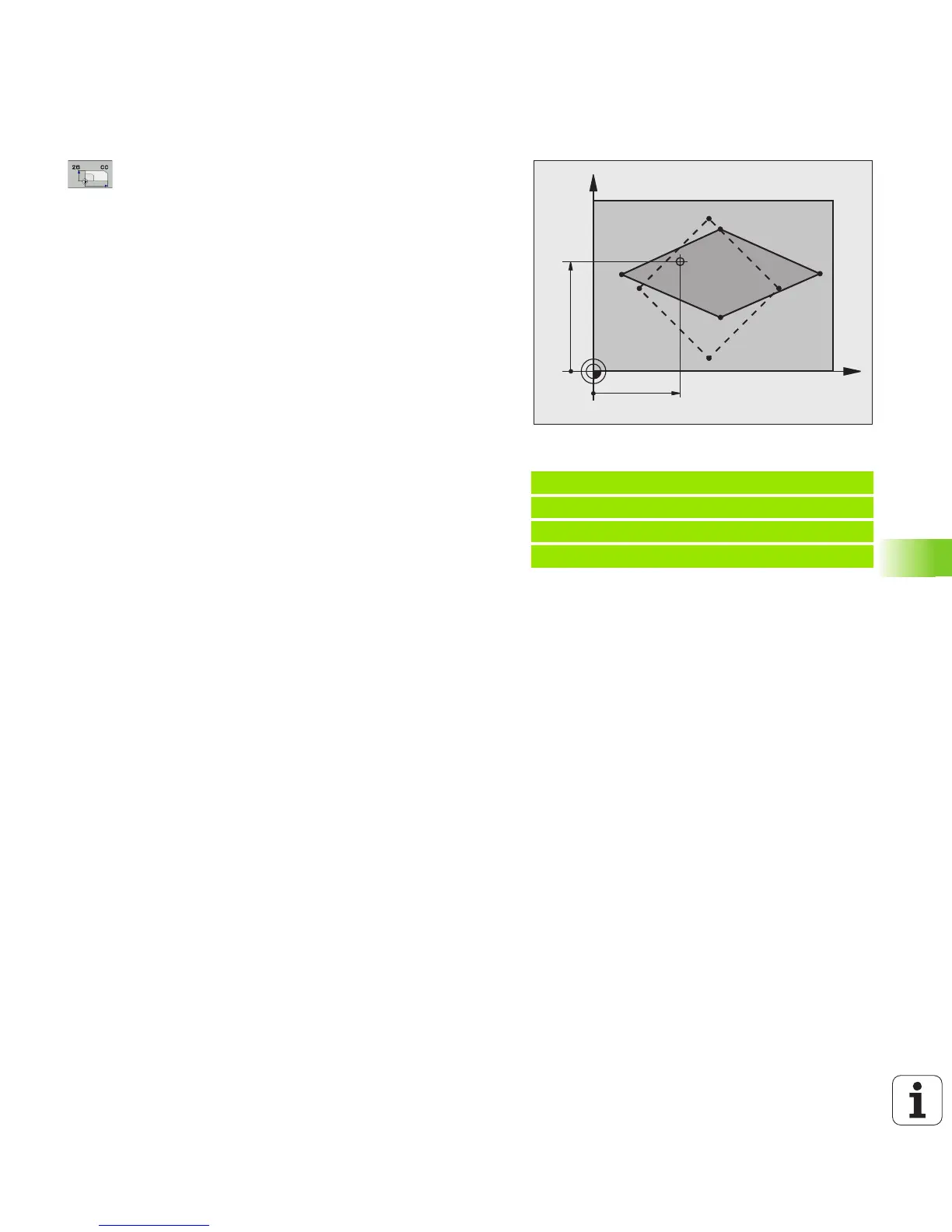

11.8 AXIS-SPECIFIC SCALING (Cycle 26)
Cycle parameters
U Axis and scaling factor: Select the coordinate
axis/axes by soft key and enter the factor(s) involved
in enlarging or reducing. Input range: 0.000000 to
99.999999
U Center coordinates: Enter the center of the axis-
specific enlargement or reduction. Input range:
-99999.9999 to 99999.9999
Example: NC blocks
25 CALL LBL 1
26 CYCL DEF 26.0 AXIS-SPECIFIC SCALING
27 CYCL DEF 26.1 X 1.4 Y 0.6 CCX+15 CCY+20
28 CALL LBL 1
15
X
Y
20
CC
