292 Cycles: Coordinate Transformations

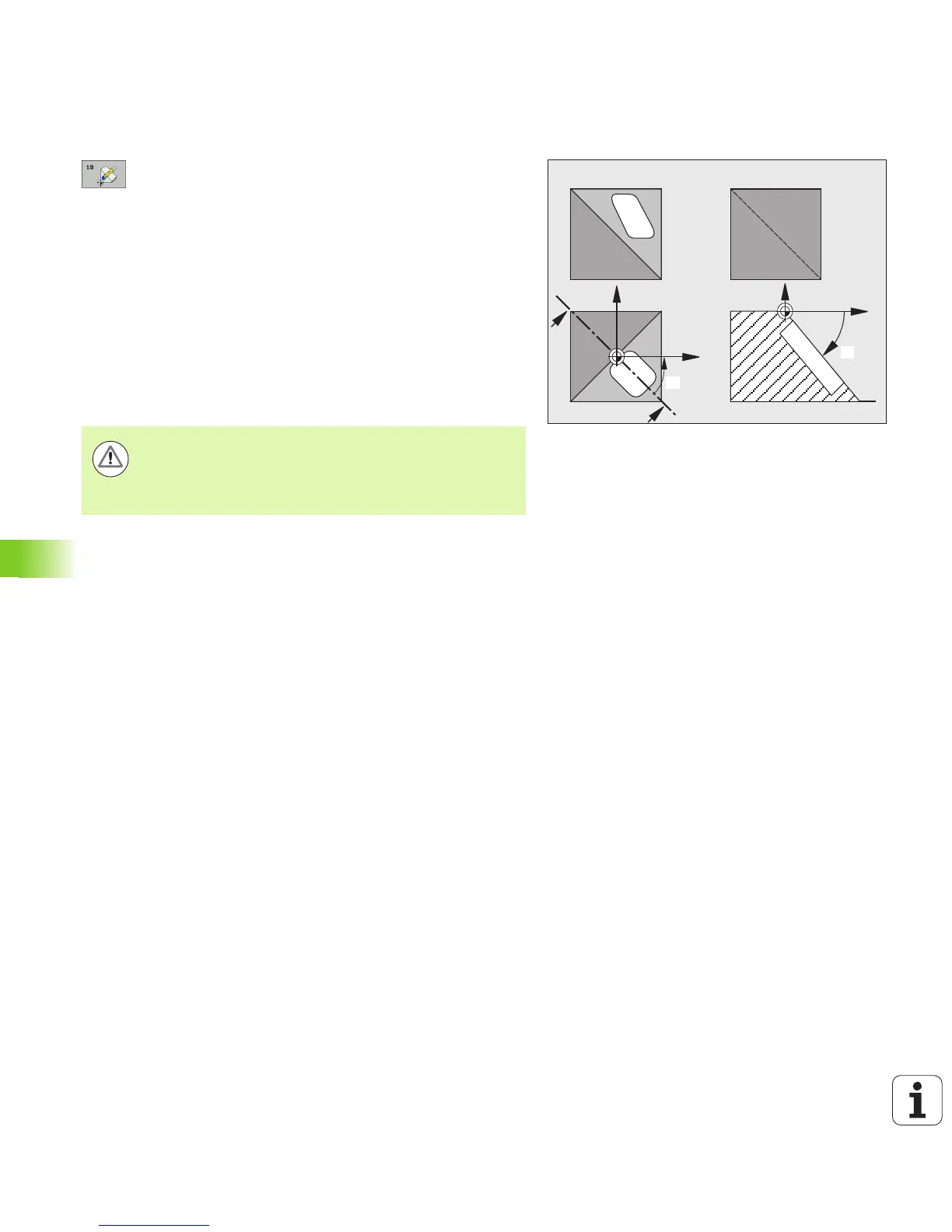

11.9 WORKING PLANE (Cycle 19, DIN/ISO: G80, Software Option 1)
Cycle parameters
U Rotary axis and tilt angle?: Enter the axes of
rotation together with the associated tilt angles. The
rotary axes A, B and C are programmed using soft
keys. Input range: -360.000 to 360.000
If the TNC automatically positions the rotary axes, you can enter the
following parameters:
U Feed rate? F=: Traverse speed of the rotary axis
during automatic positioning. Input range: 0 to
99999.999
U Setup clearance? (incremental value): The TNC
positions the tilting head so that the position that
results from the extension of the tool by the set-up
clearance does not change relative to the workpiece.
Input range: 0 to 99999.9999
Resetting
To cancel the tilt angle, redefine the WORKING PLANE cycle and enter
an angular value of 0° for all axes of rotation. You must then program
the WORKING PLANE cycle once again by answering the dialog
question with the NO ENT key to disable the function.
Danger of collision!
Please note that the setup clearance in Cycle 19 does not
refer to the upper edge of the workpiece (as is the case in
the fixed cycles) but rather to the active datum.
