HEIDENHAIN iTNC 530 329

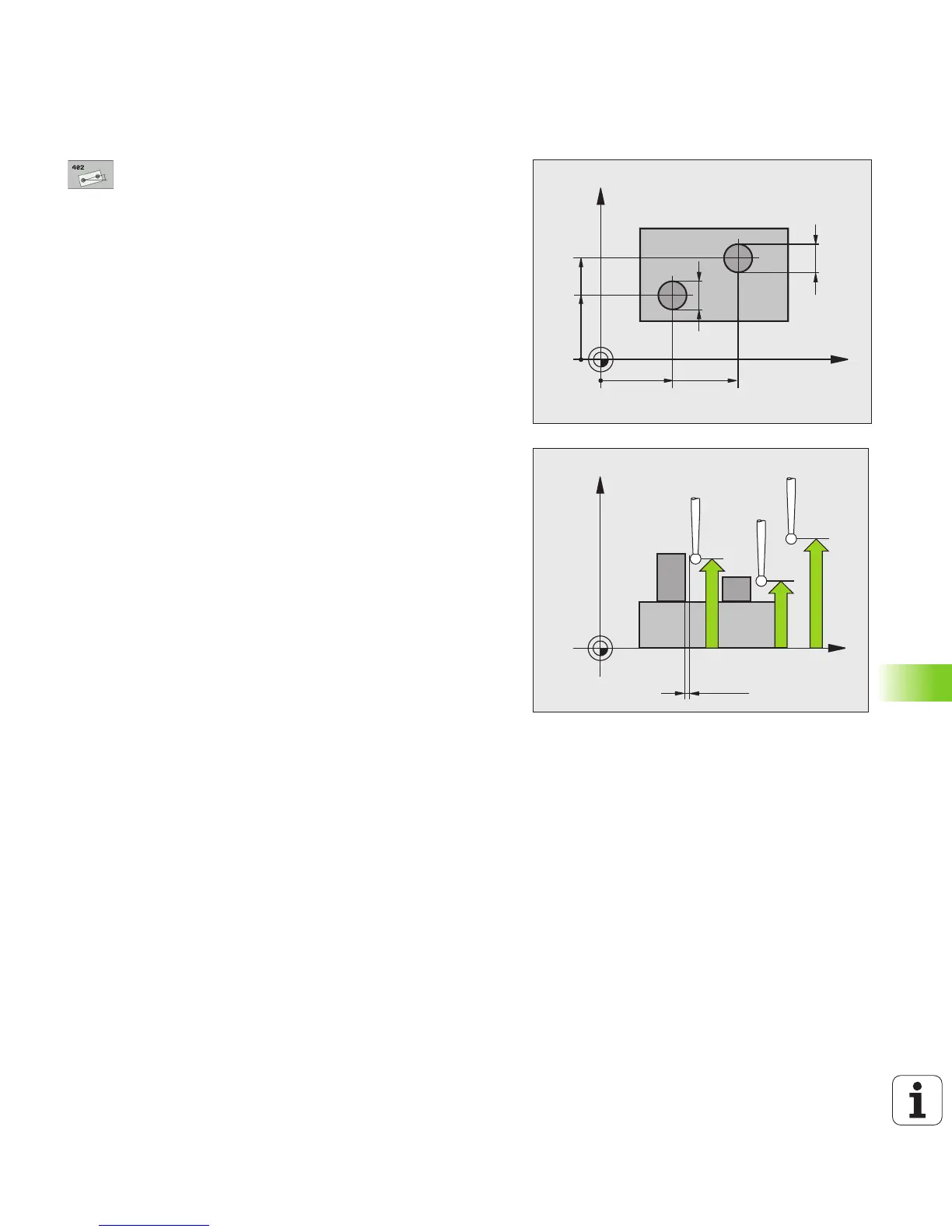

14.4 BASIC ROTATION over Two Studs (Cycle 402, DIN/ISO: G402)
Cycle parameters
U 1st stud: Center in 1st axis (absolute): Center of
the first stud in the reference axis of the working
plane. Input range -99999.9999 to 99999.9999
U 1st stud: Center in 2nd axis Q269 (absolute):
Center of the first stud in the minor axis of the
working plane. Input range -99999.9999 to
99999.9999
U Diameter of stud 1 Q313: Approximate diameter of
the 1st stud. Enter a value that is more likely to be too
large than too small. Input range 0 to 99999.9999
U Measuring height 1 in the probe axis Q261
(absolute): Coordinate of the ball tip center (= touch
point in the touch probe axis) at which stud 1 is to be
measured. Input range -99999.9999 to 99999.9999
U 2nd stud: Center in 1st axis Q270 (absolute):
Center of the second stud in the reference axis of the
working plane. Input range -99999.9999 to
99999.9999
U 2nd stud: Center in 2nd axis Q271 (absolute):
Center of the second stud in the minor axis of the
working plane. Input range -99999.9999 to
99999.9999
U Diameter of stud 2 Q314: Approximate diameter of
the 2nd stud. Enter a value that is more likely to be
too large than too small. Input range 0 to 99999.9999
U Measuring height 2 in the probe axis Q315
(absolute): Coordinate of the ball tip center (= touch
point in the touch probe axis) at which stud 2 is to be
measured. Input range -99999.9999 to 99999.9999
U Setup clearance Q320 (incremental): Additional
distance between measuring point and ball tip. Q320
is added to MP6140. Input range 0 to 99999.9999,
alternatively PREDEF
U Clearance height Q260 (absolute): Coordinate in the
touch probe axis at which no collision between touch
probe and workpiece (fixtures) can occur. Input range
-99999.9999 to 99999.9999, alternatively PREDEF
