350 Touch Probe Cycles: Automatic Datum Setting
15.3 RIDGE CENTER REF PT (Cycle 409, DIN/ISO: G409, FCL 3 function)

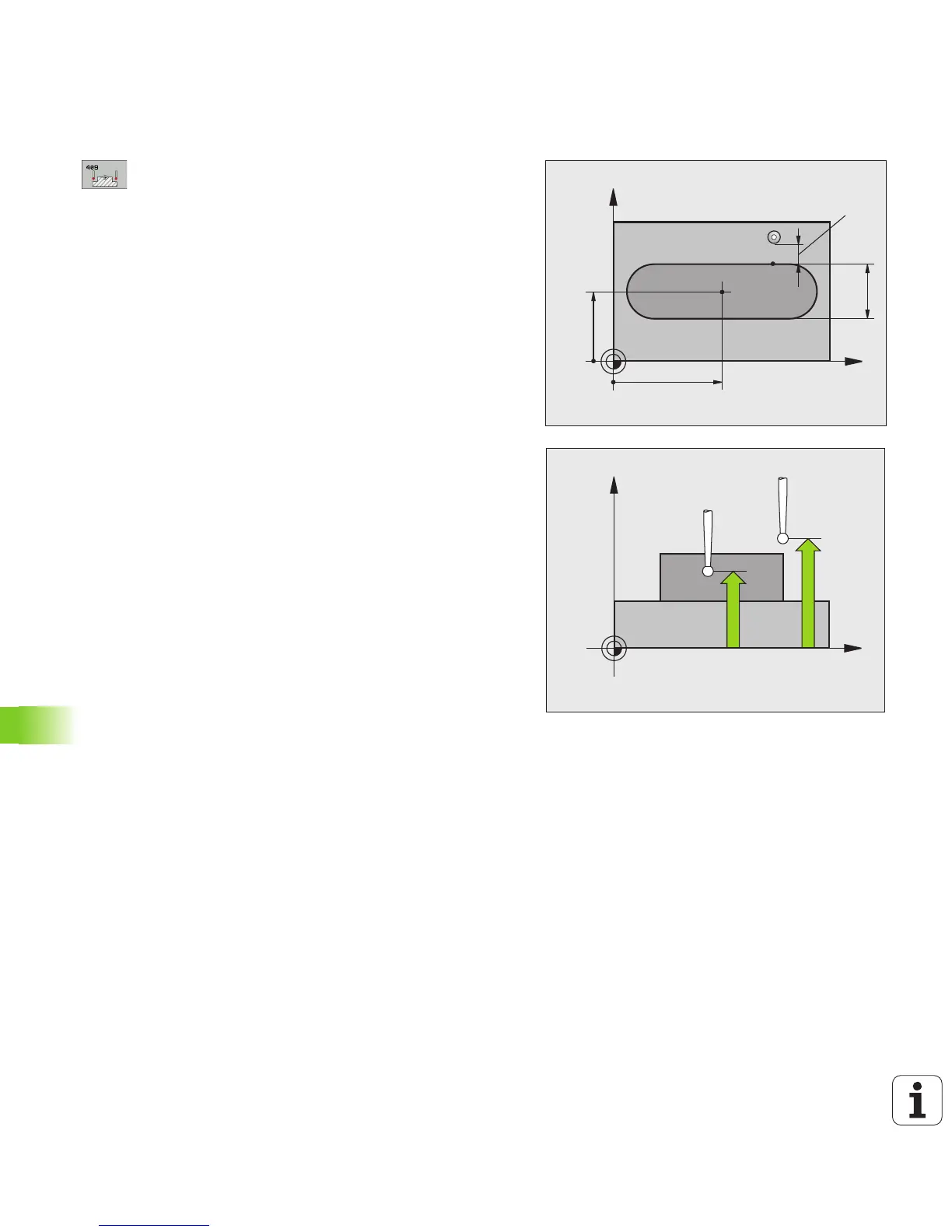

Cycle parameters
U Center in 1st axis Q321 (absolute): Center of the
ridge in the reference axis of the working plane. Input
range -99999.9999 to 99999.9999
U Center in 2nd axis Q322 (absolute): Center of the
ridge in the minor axis of the working plane. Input
range -99999.9999 to 99999.9999
U Width of ridge Q311 (incremental): Width of the
ridge, regardless of its position in the working plane.
Input range 0 to 99999.9999
U Measuring axis (1=1st axis / 2=2nd axis) Q272:
Axis in which the measurement is to be made:
1: Reference axis = measuring axis
2: Minor axis = measuring axis
U Measuring height in the touch probe axis
Q261 (absolute): Coordinate of the ball tip
center (= touch point) in the touch probe axis in
which the measurement is to be made. Input
range -99999.9999 to 99999.9999
U Setup clearance Q320 (incremental): Additional
distance between measuring point and ball tip. Q320
is added to MP6140. Input range 0 to 99999.9999,
alternatively PREDEF
U Clearance height Q260 (absolute): Coordinate in the
touch probe axis at which no collision between touch
probe and workpiece (fixtures) can occur. Input range
-99999.9999 to 99999.9999, alternatively PREDEF
U Number in table Q305: Enter the number in the
datum/preset table in which the TNC is to save the
coordinates of the ridge center. If you enter Q305=0,
the TNC automatically sets the display so that the
new datum is on the slot center. Input range 0 to
2999
U New datum Q405 (absolute): Coordinate in the
measuring axis at which the TNC should set the
calculated ridge center. Default setting = 0. Input
range: -99999.9999 to 99999.9999
