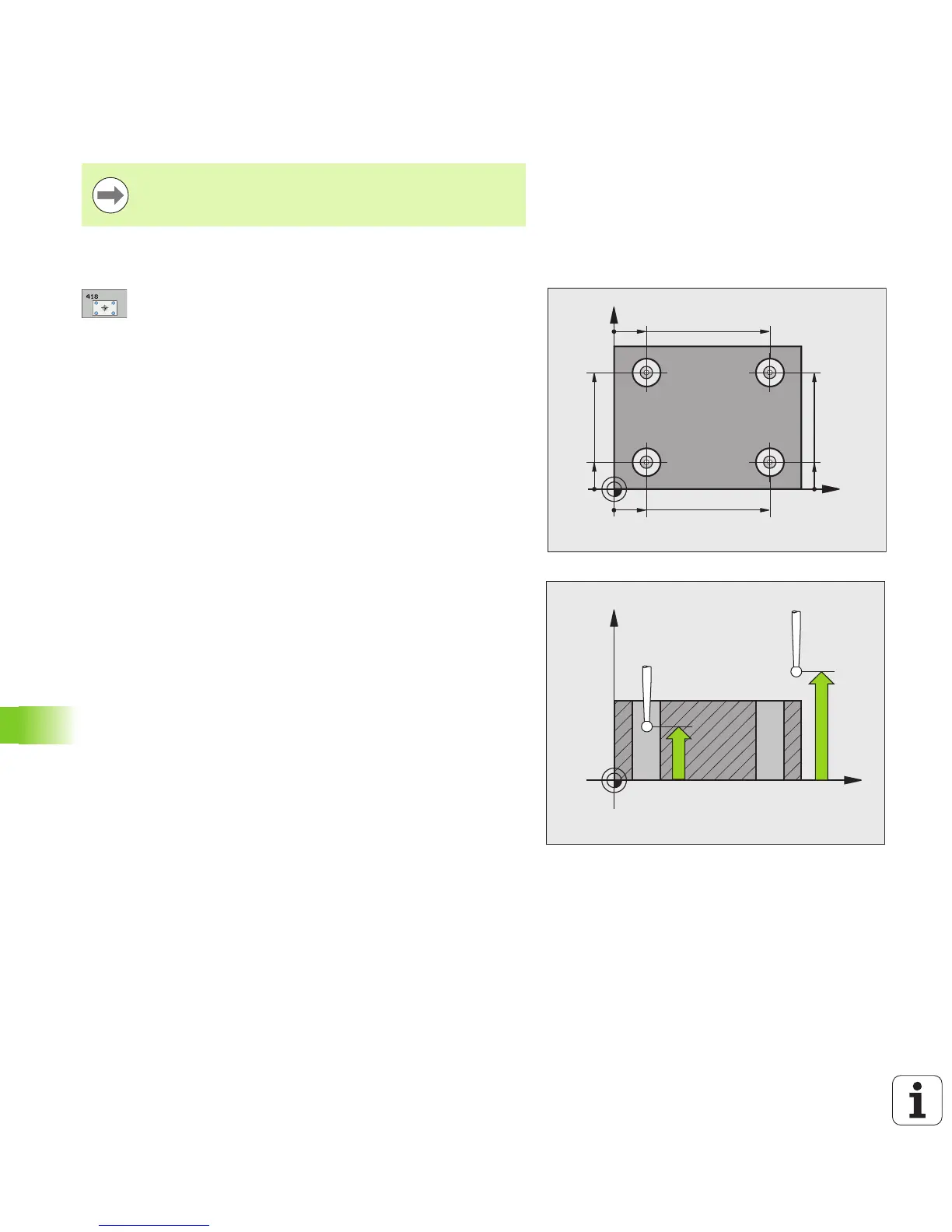

384 Touch Probe Cycles: Automatic Datum Setting
15.12 DATUM AT CENTER OF 4 HOLES (Cycle 418, DIN/ISO: G418)
Please note while programming:
Cycle parameters
U First center in 1st axis Q268 (absolute): center
of the 1st hole in the reference axis of the working
plane. Input range -99999.9999 to 99999.9999
U First center in 2nd axis Q269 (absolute): center
of the 1st hole in the minor axis of the working
plane. Input range -99999.9999 to 99999.9999
U First center in 1st axis Q270 (absolute): center
of the 2nd hole in the reference axis of the
working plane. Input range -99999.9999 to
99999.9999
U First center in 2nd axis Q271 (absolute): center
of the 2nd hole in the minor axis of the working
plane. Input range -99999.9999 to 99999.9999
U First center in 1st axis Q316 (absolute): center
of the 3rd hole in the reference axis of the working
plane. Input range -99999.9999 to 99999.9999
U 3rd center in 2nd axis Q317 (absolute): center
of the 3rd hole in the minor axis of the working
plane. Input range -99999.9999 to 99999.9999
U 4th center in 1st axis Q318 (absolute): center
of the 4th hole in the reference axis of the working
plane. Input range -99999.9999 to 99999.9999
U 4th center in 2nd axis Q319 (absolute): center
of the 4th hole in the minor axis of the working
plane. Input range -99999.9999 to 99999.9999
U Measuring height in the touch probe axis Q261
(absolute): Coordinate of the ball tip center (=
touch point) in the touch probe axis in which the
measurement is to be made. Input range -
99999.9999 to 99999.9999
U Clearance height Q260 (absolute): Coordinate in the
touch probe axis at which no collision between touch
probe and workpiece (fixtures) can occur. Input range
-99999.9999 to 99999.9999, alternatively PREDEF
Before a cycle definition you must have programmed a
tool call to define the touch probe axis.
X
Y
Q269
Q268 Q270
Q317
Q271
Q318 Q316
Q319
X
Z
Q261
Q260
