HEIDENHAIN iTNC 530 435
16.12 MEAS. BOLT HOLE CIRC. (Cycle 430, DIN/ISO: G430)

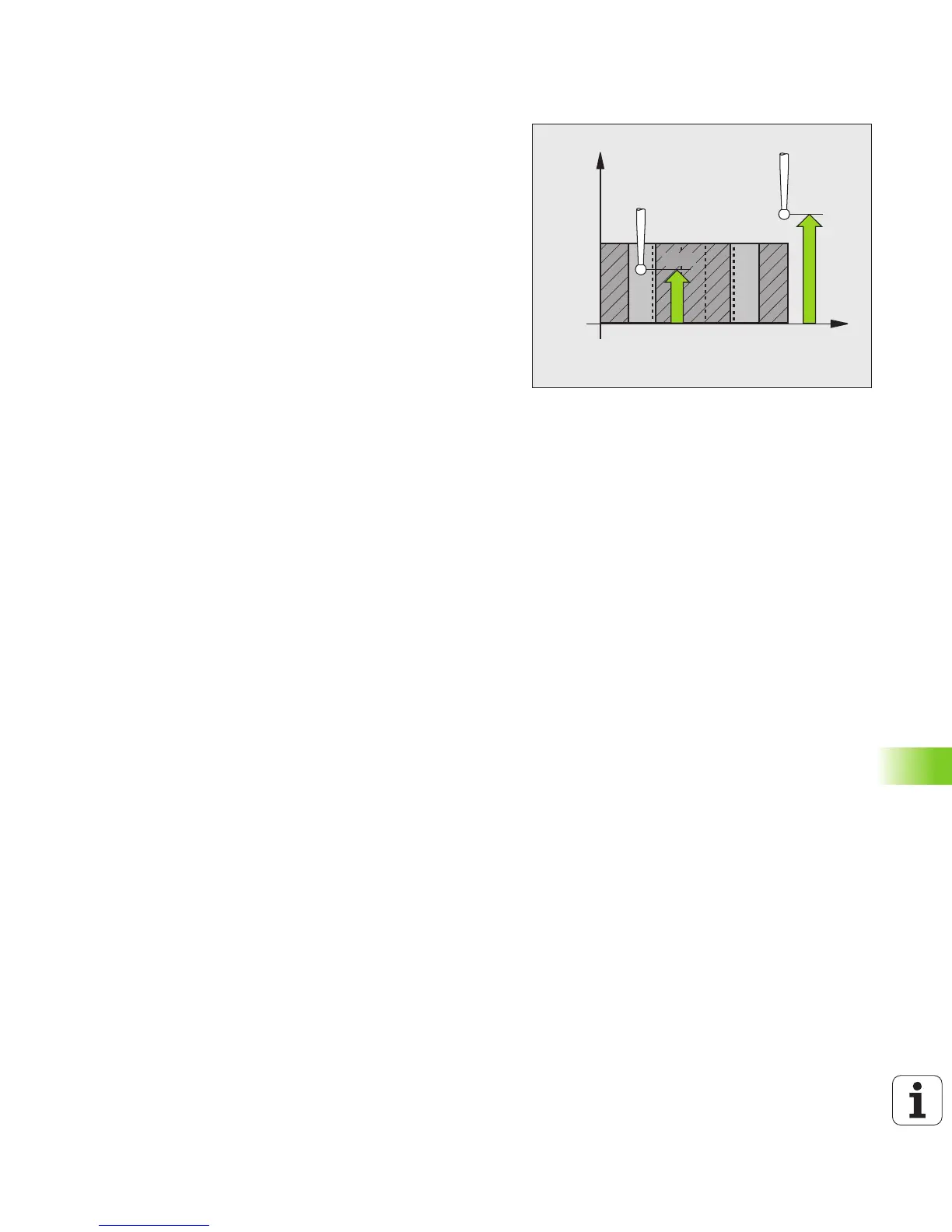

U Measuring height in the touch probe axis
Q261 (absolute): Coordinate of the ball tip
center (= touch point) in the touch probe axis in
which the measurement is to be made. Input
range -99999.9999 to 99999.9999
U Clearance height Q260 (absolute): Coordinate in the
touch probe axis at which no collision between touch
probe and workpiece (fixtures) can occur. Input range
-99999.9999 to 99999.9999, alternatively PREDEF
U Maximum limit of size Q288: Maximum permissible
diameter of bolt hole circle. Input range 0 to
99999.9999
U Minimum limit of size Q289: Minimum permissible
diameter of bolt hole circle. Input range 0 to
99999.9999
U Tolerance for center 1st axis Q279: Permissible
position deviation in the reference axis of the working
plane. Input range 0 to 99999.9999
U Tolerance for center 2nd axis Q280: Permissible
position deviation in the minor axis of the working
plane. Input range 0 to 99999.9999
X
Z
Q260
Q261
