3.6 UNIVERSAL DRILLING (Cycle 203, DIN/ISO: G203)

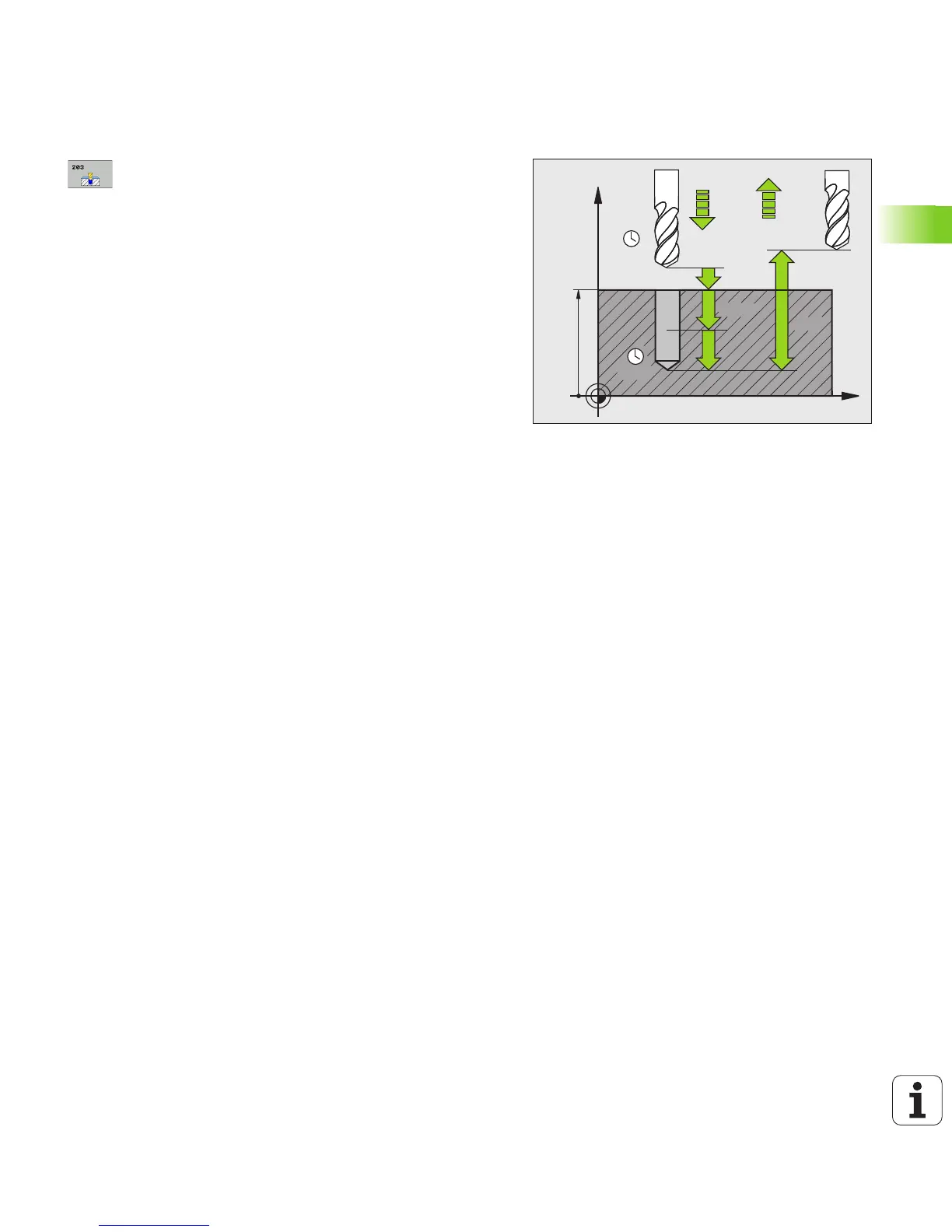

Cycle parameters
U Setup clearance Q200 (incremental): Distance
between tool tip and workpiece surface. Input range
0 to 99999.9999, alternatively PREDEF
U Depth Q201 (incremental): Distance between
workpiece surface and bottom of hole (tip of drill
taper). Input range -99999.9999 to 99999.9999
U Feed rate for plunging Q206: Traversing speed of
the tool during drilling in mm/min. Input range: 0 to
99999.999; alternatively FAUTO, FU.
U Plunging depth Q202 (incremental): Infeed per cut.
Input range 0 to 99999.9999. The depth does not
have to be a multiple of the plunging depth. The TNC
will go to depth in one movement if:
îš„ the plunging depth is equal to the depth
îš„ the plunging depth is greater than the depth and no
chip breaking is defined
U Dwell time at top Q210: Time in seconds that the
tool remains at setup clearance after having been
retracted from the hole for chip release. Input range
0 to 3600.0000, alternatively PREDEF
U Workpiece surface coordinate Q203 (absolute):
Coordinate of the workpiece surface. Input range:
-99999.9999 to 99999.9999
U 2nd setup clearance Q204 (incremental): Coordinate
in the spindle axis at which no collision between tool
and workpiece (fixtures) can occur. Input range 0 to
99999.9999, alternatively PREDEF
U Decrement Q212 (incremental): Value by which the
TNC decreases the plunging depth Q202 after each
infeed. Input range 0 to 99999.9999
