3.2 OPEN /CLOSE SLIDING MANUALLY
In an emergency, the gate can also be operated from the drive unit. To do this the
cover of the motor unit must be opened.
3.2.1 Motor/gate unlocking
 Unlock the cabinet
 Lift the hood vertically off
 Pull the knob and turn it slightly to the left or
right
 The motor falls down and the gate is manually
operated. Close the cabinet again.

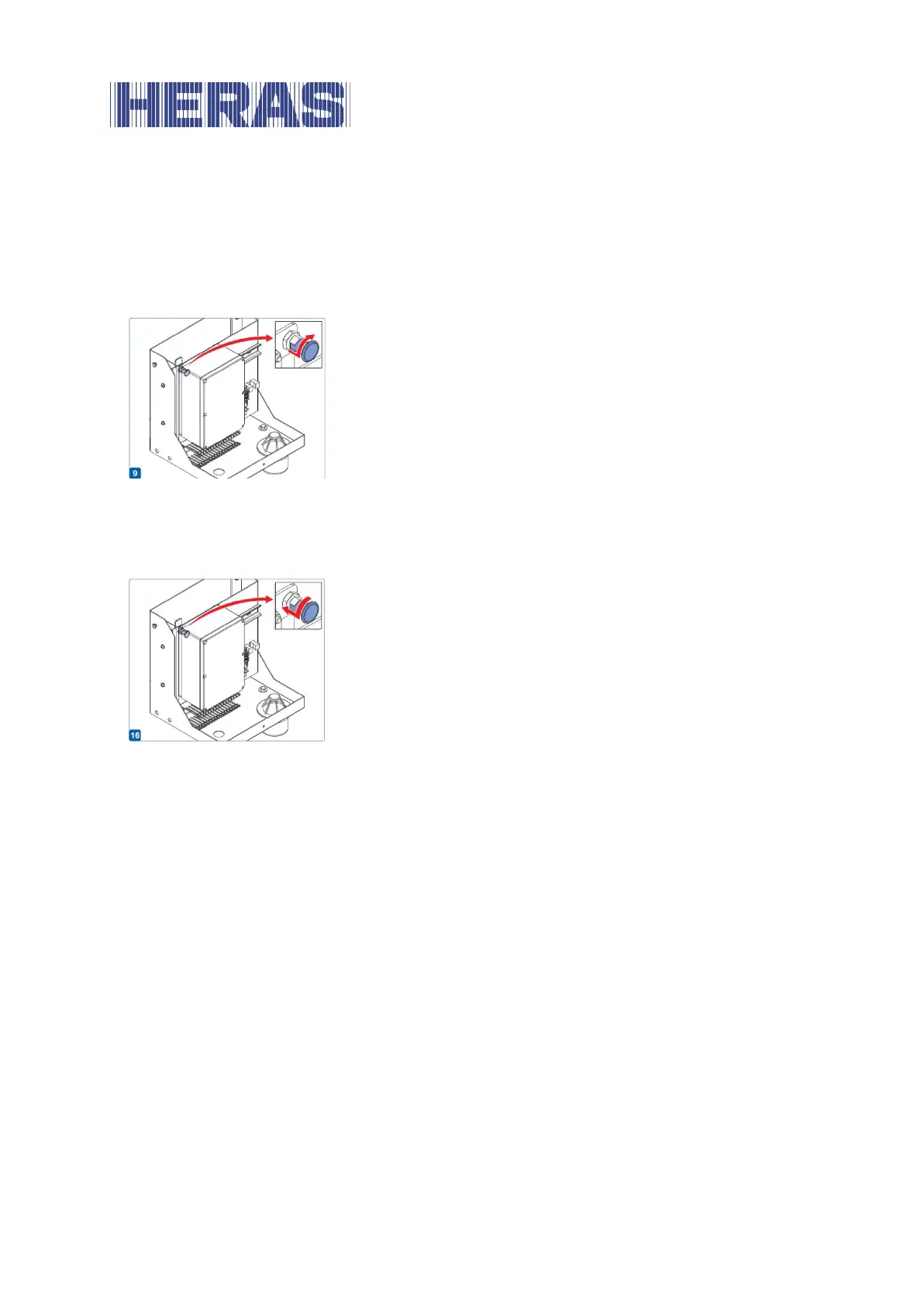

Illustration 3: unlocking motor and gate
3.2.2 Locking the motor/gate
 Unlock the cabinet
 Lift the hood vertically off
 Turn the knob back as shown in the illustration
 Lift the motor until the pin falls in the hole
again
 Close the cabinet, the gate is now electrically
operated again
Illustration 4: locking motor and gate
