The internal conductor of the coaxial cable from the aerial is connected to
the right-hand terminal no.2 (towards the housing side). The shielding of
the aerial cable is connected to the left-hand terminal no. 1 (towards the
centre of the board).

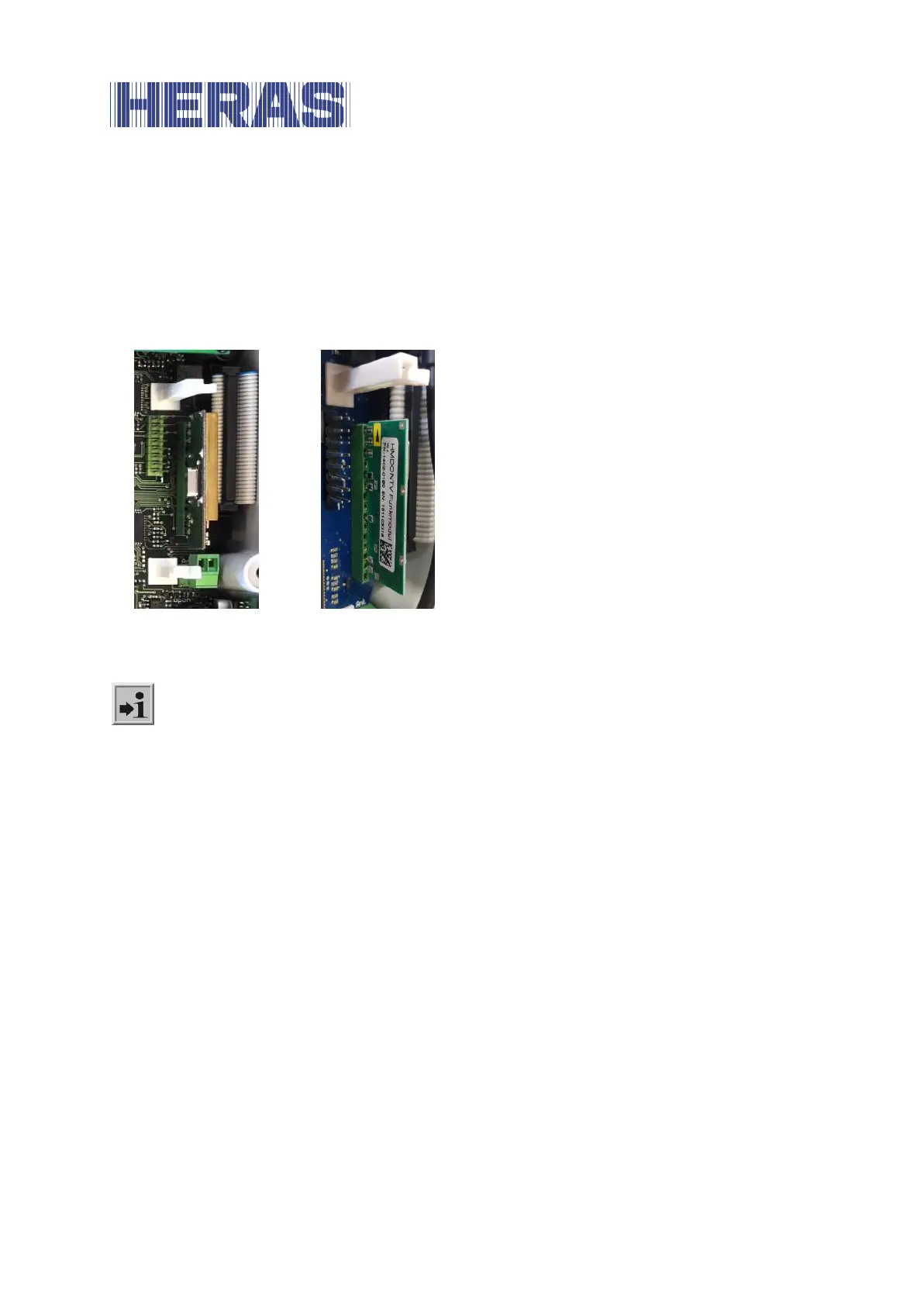

Illustration 13: Electrical connection of radio-frequency receiver module
Information: Only handheld transmitters approved by the manufacturer
can be registered by the control system.
