Digital Video Recorder User Manual
102

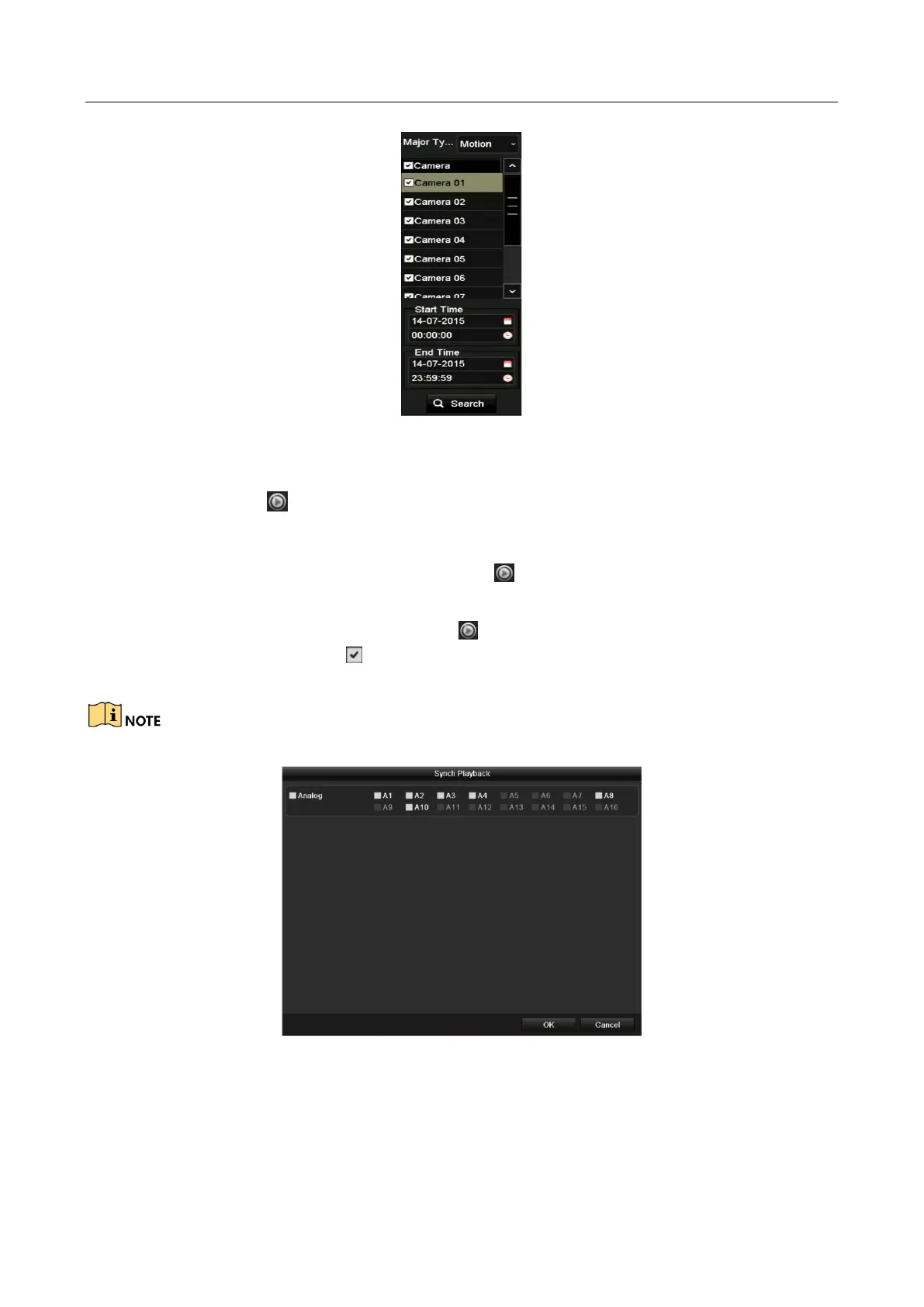

Figure 6-6 Video Search by Motion Detection
Step 4 Click Search, and the record files matching the search conditions will be displayed on a list.
Step 5 Select and click button to play back the record files.
You can click Back button to return to the search interface.
If there is only one channel triggered, clicking button takes you to Full-screen Playback
interface of this channel.
If several channels are triggered, clicking button takes you to the Synchronous
Playback interface. Check checkbox to select one channel for playback or select
multiple channels for synchronous playback.
The maximum number of channels for synchronous playback supported varies to different models.
Figure 6-7 Select Channels for Synchronous Playback
Step 6 On the Event Playback interface, you can select the main stream or sub-stream from the
drop-down list for playback.
To Next Page
