DS-7100HUHI-K1

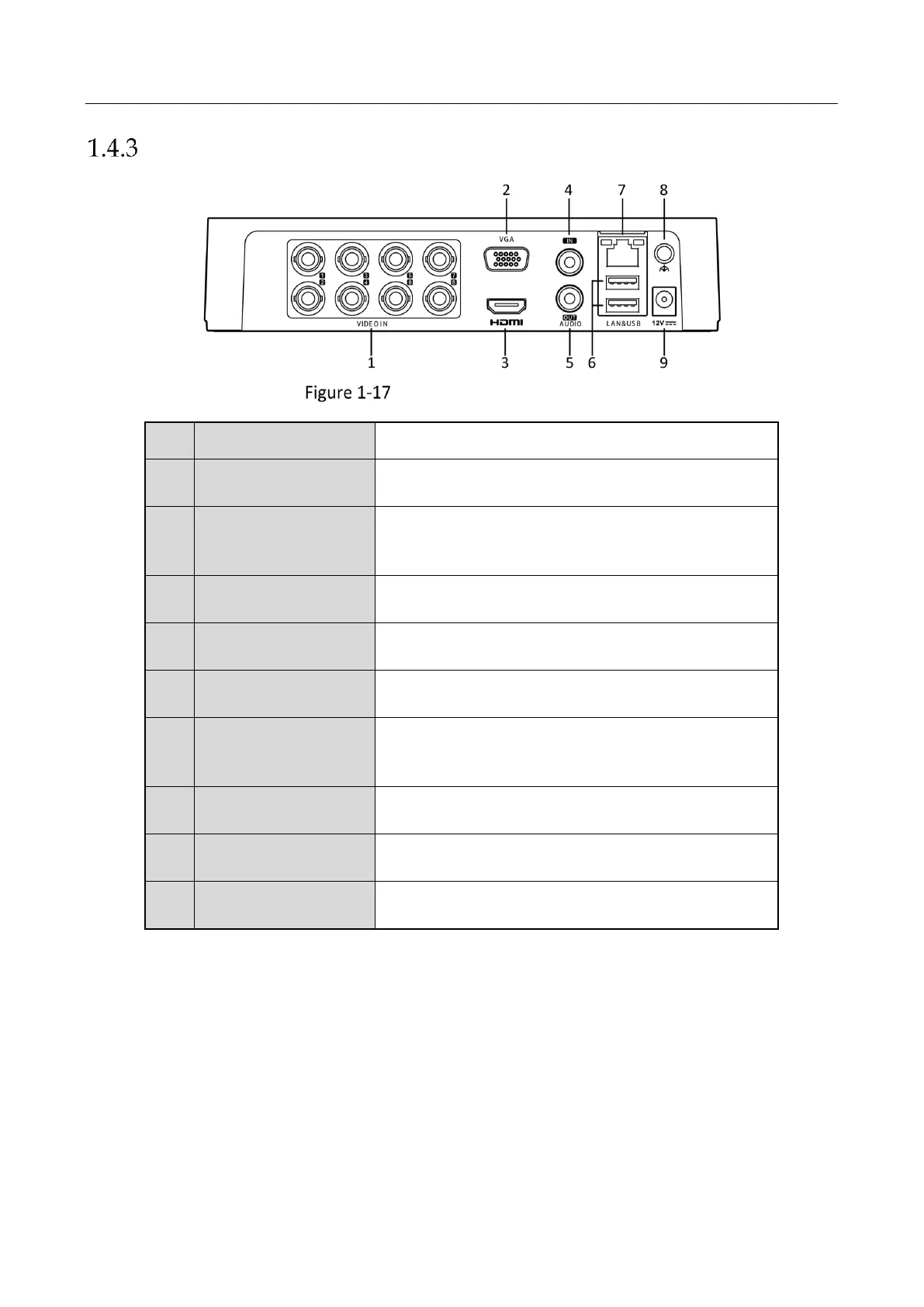

Rear Panel of DS-7100HUHI-K1
No.
Item
Description
1
VIDEO IN
BNC interface for Turbo HD and analog video input.
2
VGA
DB15 connector for VGA output. Display local video
output and menu.
3
HDMI
HDMI video output connector.
4
AUDIO IN
RCA connector
5
AUDIO OUT
RCA connector.
6
USB Interface
Universal Serial Bus (USB) port for additional
devices.
7
Network Interface
Connector for network.
8
GND
Ground.
9
Power Supply
12 VDC power supply.
