HIKVISION DS-7200HGHI-K1 Series

Network Video Recorder User Manual
41

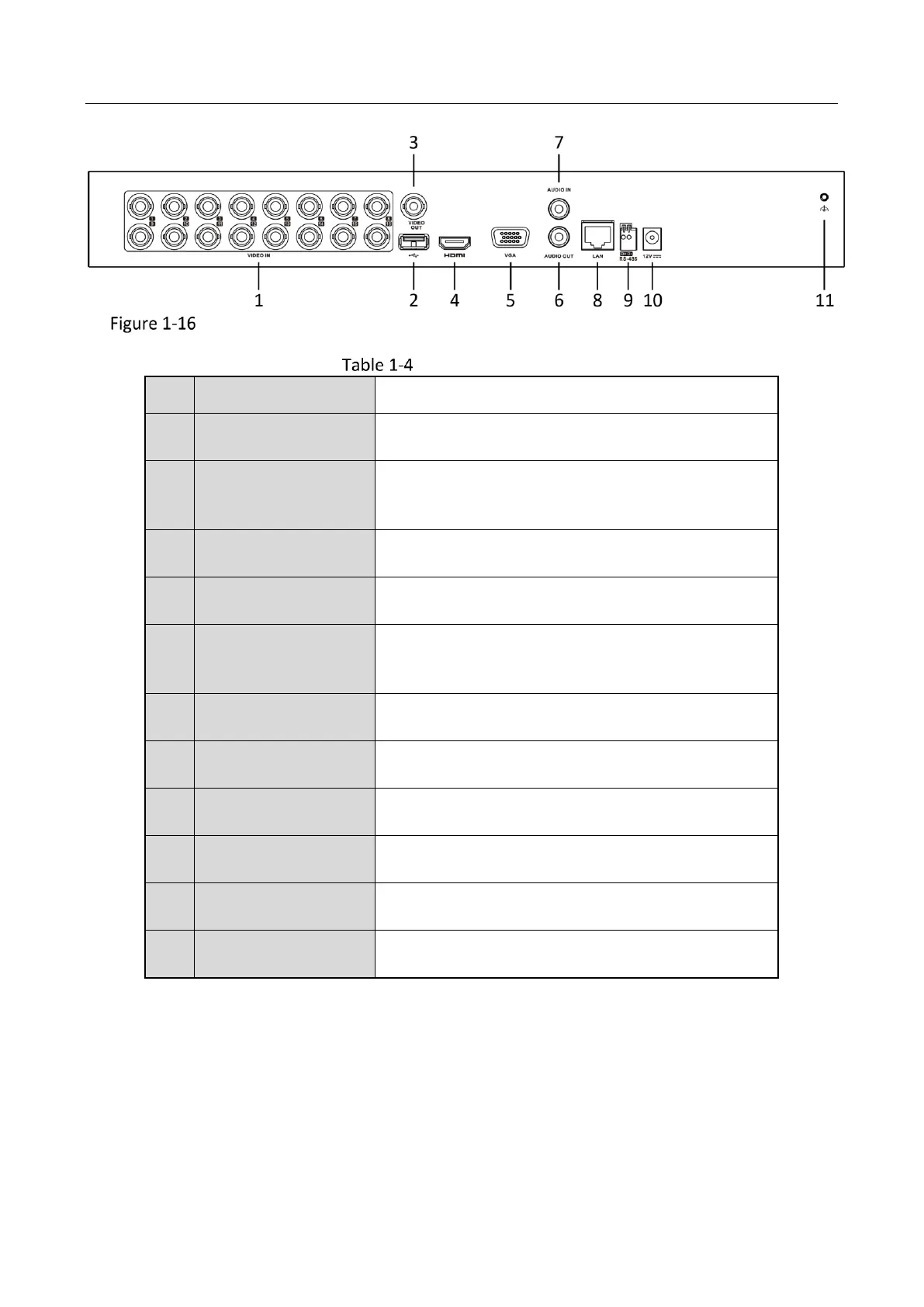

Rear Panel of iDS-7200HQHI-K2/S(B) and iDS-7200HQHI-M2/S (with 16 Video Inputs)
Rear Panel Description
No.
Item
Description
1
VIDEO IN
BNC interface for Turbo HD and analog video input.
2
USB Interface
Universal Serial Bus (USB) port for additional
devices.
3
VIDEO OUT
BNC connector for video output.
4
HDMI
HDMI video output connector.
5
VGA
DB15 connector for VGA output. Display local video
output and menu.
6
AUDIO OUT
RCA connector.
7
AUDIO IN
RCA connector
8
Network Interface
Connector for network.
9
RS-485 Interface
Connector for RS-485 devices.
10
Power Supply
12 VDC power supply.
11
GND
Ground.
