HIKVISION DS-7200HGHI-K1 Series

Network Video Recorder User Manual
45

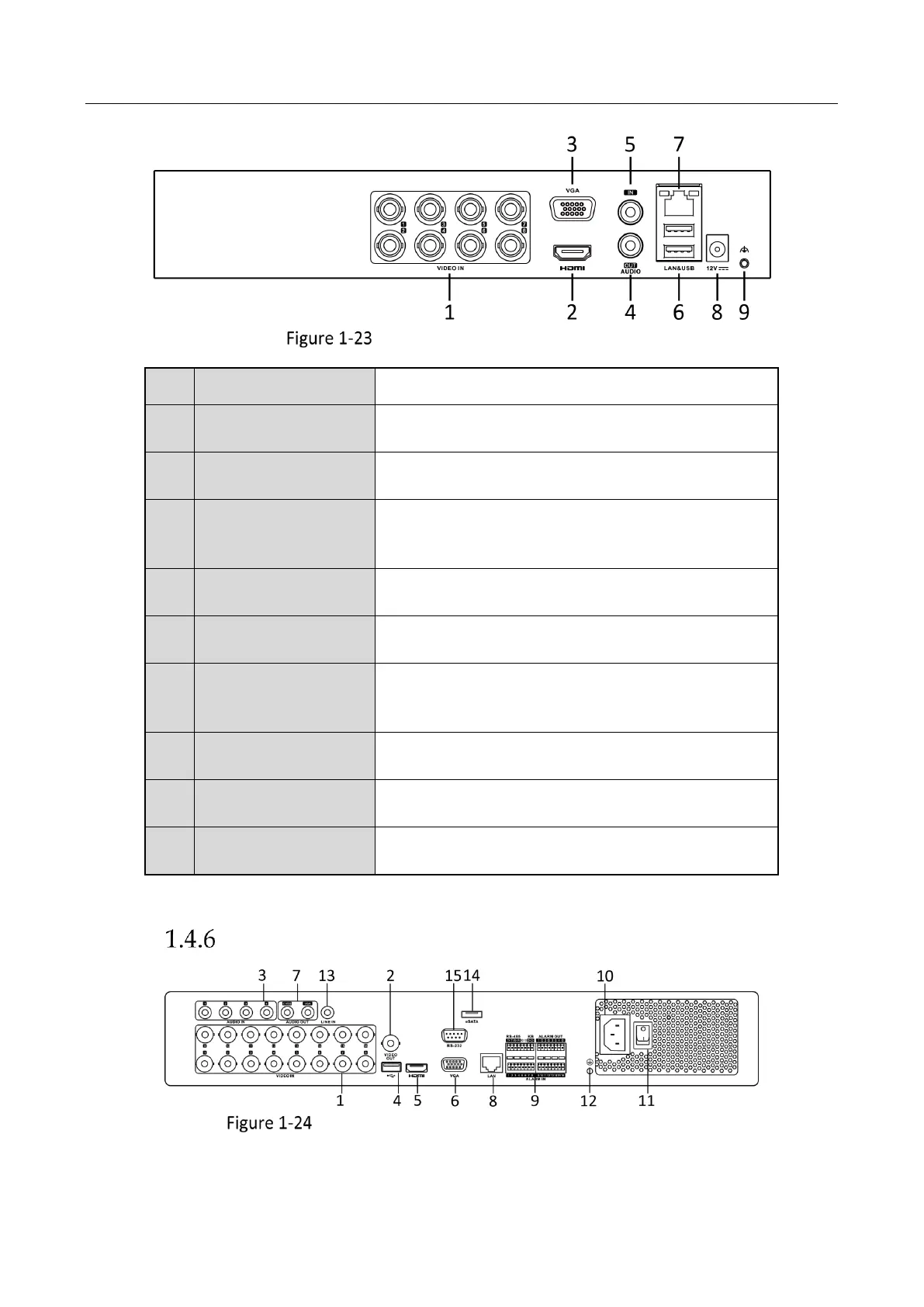

Rear Panel of DS-7200HUHI-K1/ECO
No.
Item
Description
1
VIDEO IN
BNC interface for Turbo HD and analog video input.
2
HDMI
HDMI video output connector.
3
VGA
DB15 connector for VGA output. Display local video
output and menu.
4
AUDIO OUT
RCA connector.
5
AUDIO IN
RCA connector.
6
USB Interface
Universal Serial Bus (USB) port for additional
devices.
7
Network Interface
Connector for network.
8
Power Supply
12 VDC power supply.
9
GND
Ground.
DS-7300HQHI-K
Rear Panel of DS-7300HQHI-K (with 16 Video Inputs)
