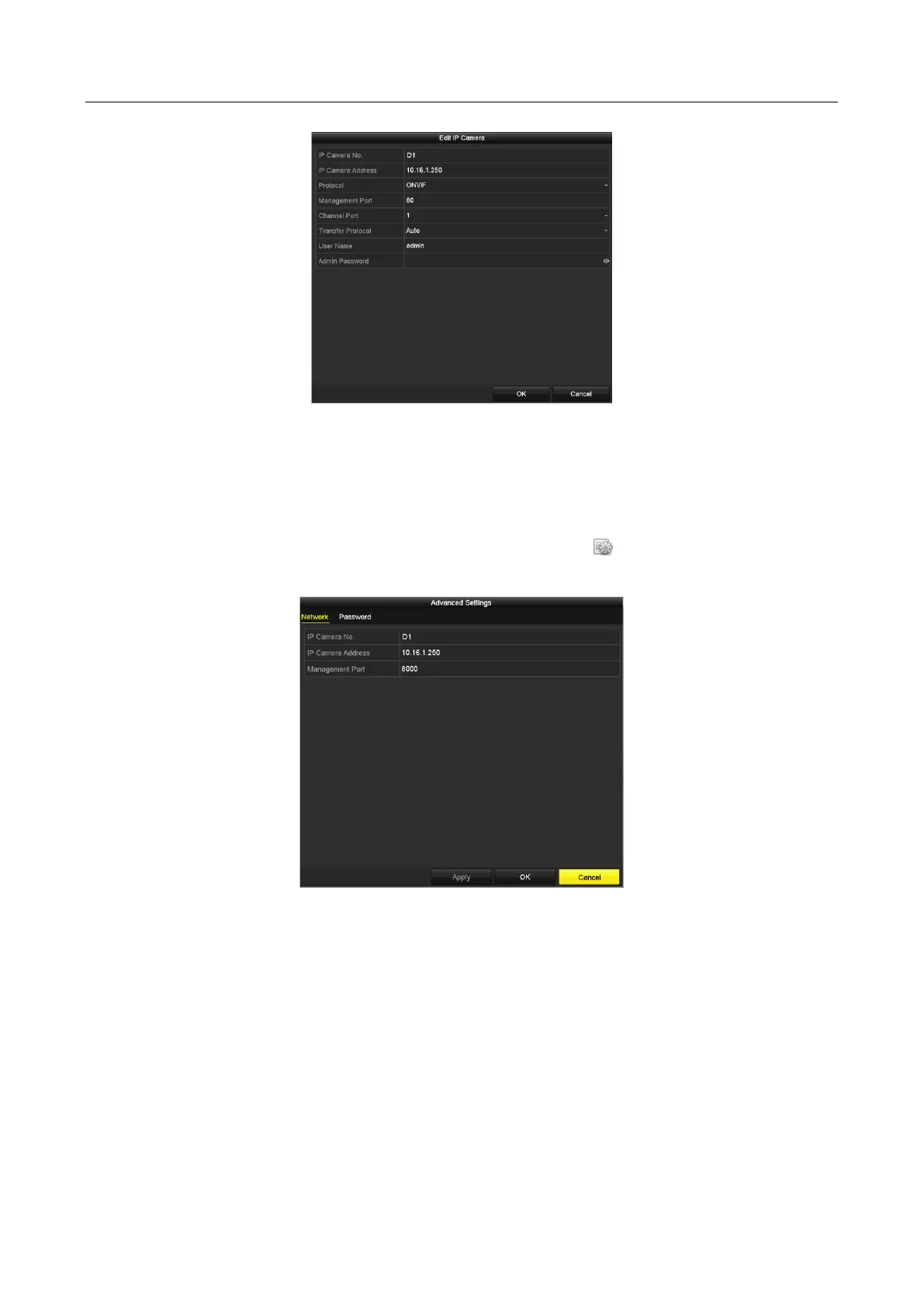

HIKVISION DS-7200HGHI-K1 Series

Network Video Recorder User Manual
51
No.
Item
Description
11
HDMI2 Interface
HDMI2 video output connector.
12
Network
Interface
Connector for network.
13
USB Interface
Universal Serial Bus (USB) port for additional devices.
14
GND
Ground
15
Power Supply
100 to 240 VAC power supply.
16
Power Switch
Switch for turning on/off the device.
17
AUDIO IN
DB26 female head
DS-7200HGHI-K1

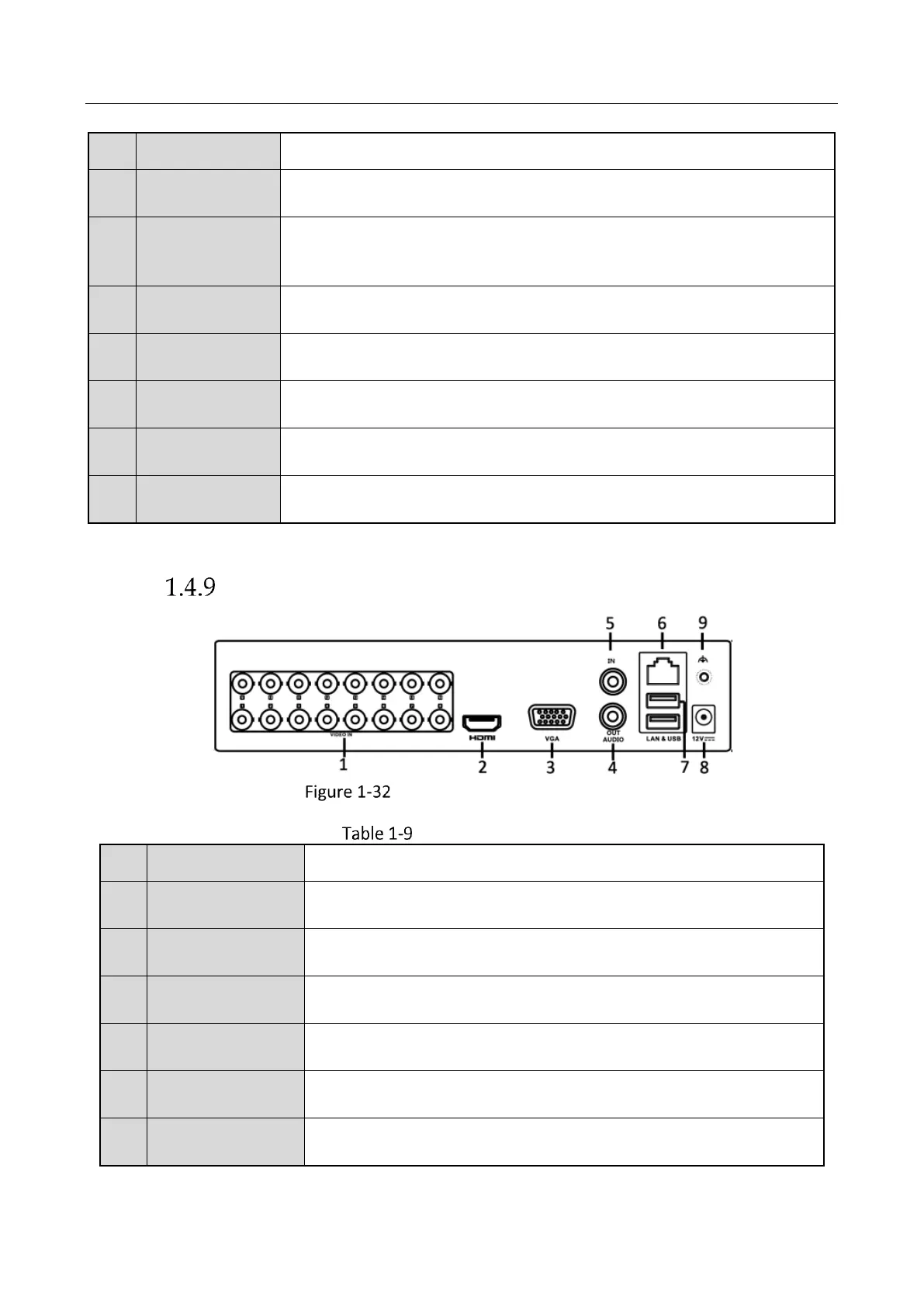

Rear Panel of DS-7200HGHI-K1
Rear Panel Description
No.
Item
Description
1
VIDEO IN
BNC interface for Turbo HD and analog video input.
2
HDMI Interface
HDMI video output connector.
3
VGA Interface
VGA video output connector. Display local video output and menu.
4
AUDIO OUT
RCA connector.
5
AUDIO IN
RCA connector.
6
Network Interface
Connector for network.
