Digital Video Recorder User Manual
196

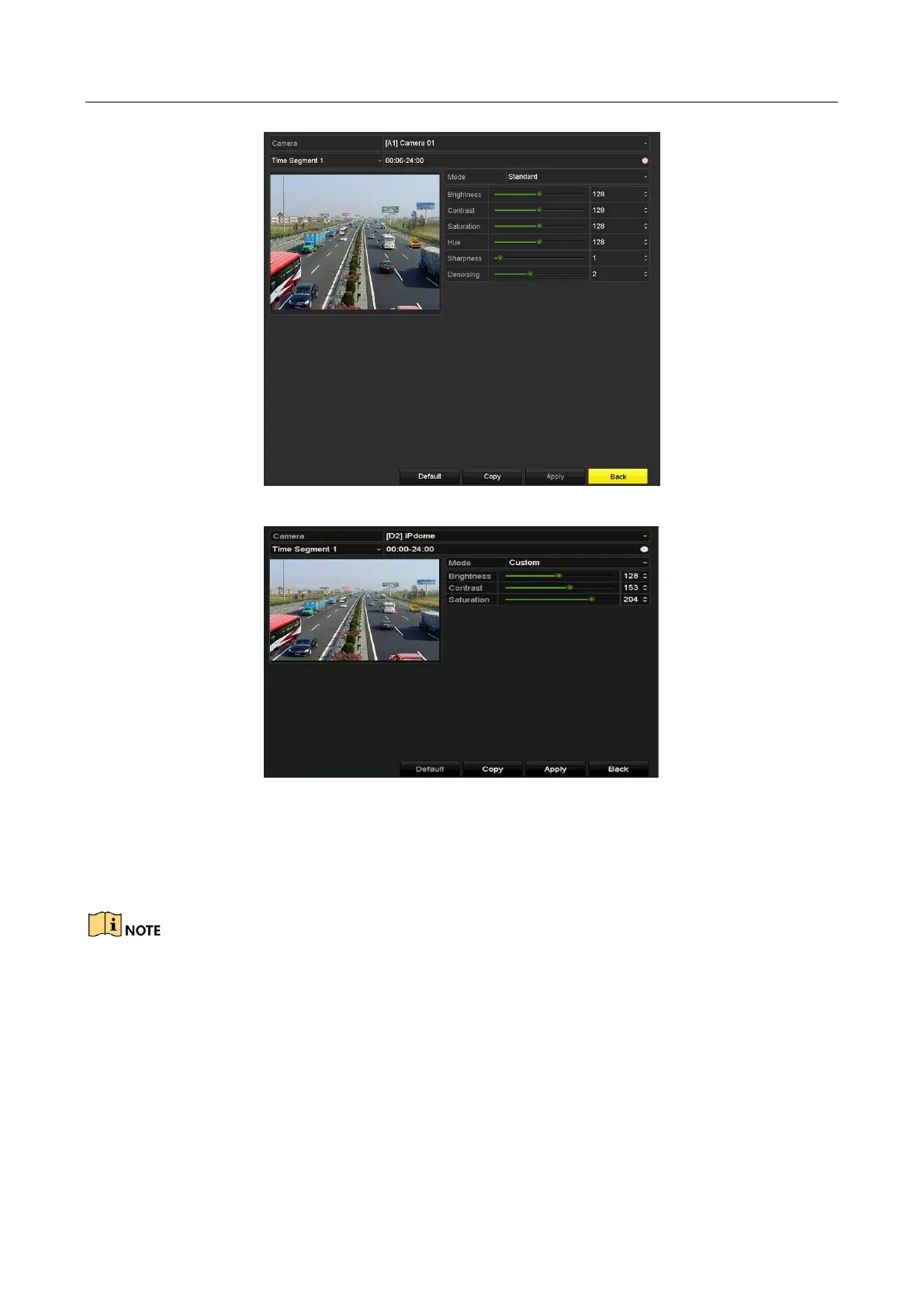

Figure 14-5 Image Settings Interface (Analog Camera)
Figure 14-6 Image Settings Interface (IP Camera)
Step 2 Select the camera to set image parameters.
Step 3 Two periods for different image settings are provided, select the period name in the
drop-down list.
The time periods cannot be overlapped with each other.
Step 4 Select the mode from the drop-down list of Mode, there are four modes selectable for the
analog cameras: Standard, Indoor, Dim Light and Outdoor.
Step 5 Adjust the image parameters according to actual needs. The parameters include Brightness,
Contrast, Saturation, Hue, Sharpness and Denoising for the analog cameras and Brightness,
Contrast and Saturation for the IP cameras. You can also click Restore to set the
parameters to the default settings.
