Digital Video Recorder User Manual
184
Multiple HDDs can be managed in groups. Video from specified channels can be recorded onto a
particular HDD group through HDD settings.
Step 1 Go to Menu > HDD > Advanced.
Step 2 Set the Mode to Group, as shown below.

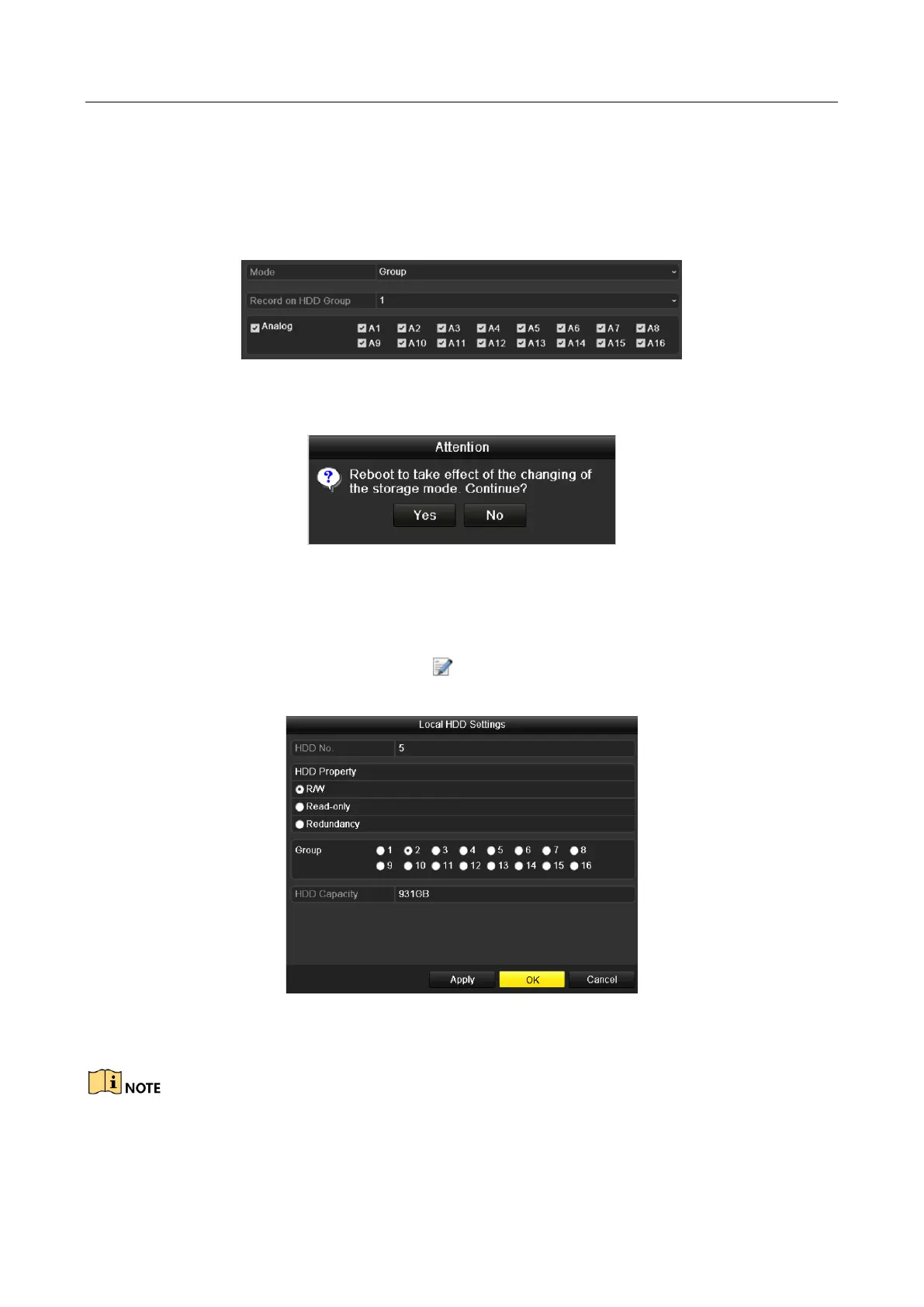

Figure 13-11 Storage Mode Interface
Step 3 Click the Apply button and the following Attention box will pop up.
Figure 13-12 Attention for Reboot
Step 4 Click the Yes button to reboot the device to activate the changes.
Step 5 After reboot of device, go to Menu > HDD > General.
Step 6 Select HDD from the list and click the icon to enter the Local HDD Settings interface,
as shown below.
Figure 13-13 Local HDD Settings Interface
Step 7 Select the Group number for the current HDD.
The default group No. for each HDD is 1.
