Digital Video Recorder User Manual
144

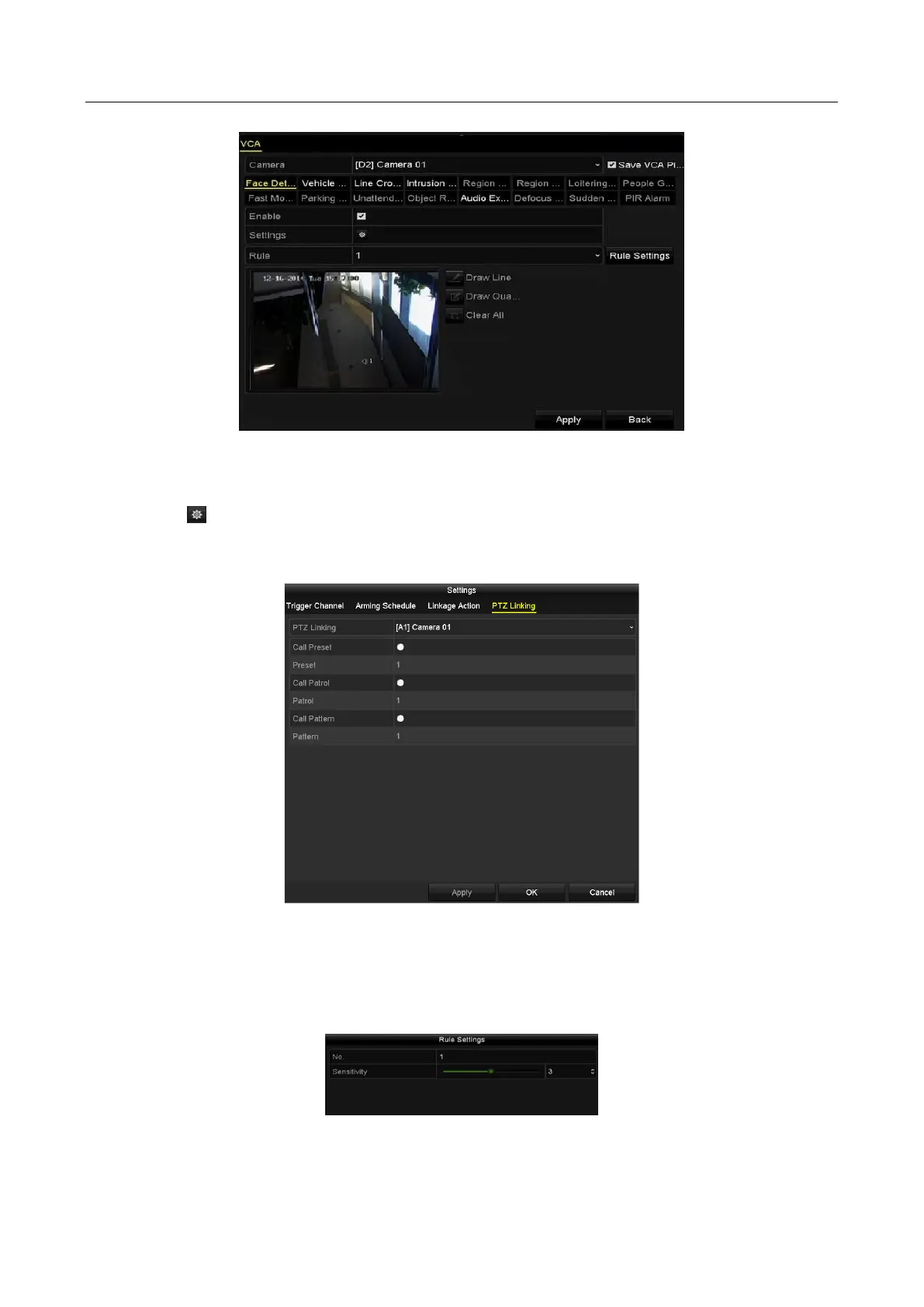

Figure 10-1 Face Detection
Step 3 Select the VCA detection type to Face Detection.
Step 4 Click to enter the face detection settings interface. Configure the trigger channel,
arming schedule, linkage action and PTZ linking for the face detection alarm. Please refer to
step 3 to step 5 of Chapter 8.2 Setting Sensor Alarms for detailed instructions.
Figure 10-2 PTZ Linking
Step 5 Click the Rule Settings button to set the face detection rules. You can drag the slider to set
the detection sensitivity.
Sensitivity: Range [1-5]. The higher the value is, the more easily the face can be detected.
Figure 10-3 Set Face Detection Sensitivity
