HIKVISION DS-7200HGHI-K1 Series

Network Video Recorder User Manual
47
No.
Item
Description
15
RS-232 Interface
Connector for RS-232 devices.
DS-7300HUHI/HTHI-K4, iDS-7316HUHI-K4/16S and
DS-9000HUHI-K8

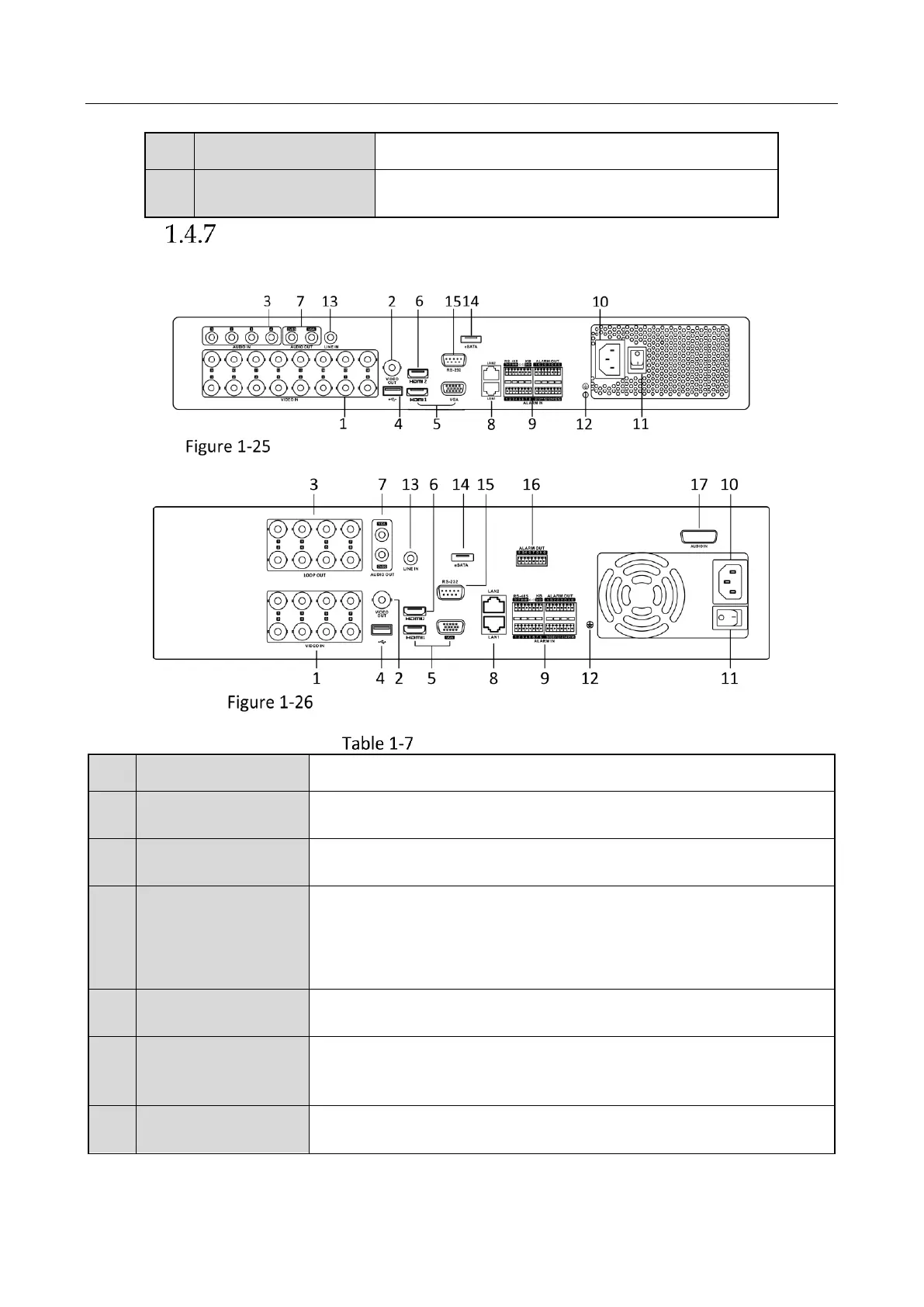

Rear Panel of DS-7300HUHI/HTHI-K4 and iDS-7316HUHI-K4/16S
Rear Panel of DS-9000HUHI-K8 (with 8 Video Inputs)
Rear Panel Description
No.
Item
Description
1
VIDEO IN
BNC interface for Turbo HD and analog video input.
2
VIDEO OUT
BNC connector for video output.
3
AUDIO IN/
LOOP OUT (for DS-
9000HUHI-K8)
RCA connector
4
USB Port
Universal Serial Bus (USB) port for additional devices.
5
HDMI1/VGA
Simultaneous HDMI1/VGA output. Display local video output and
menu.
6
HDMI2
HDMI2 video output connector.
