HIKVISION DS-7200HGHI-K1 Series

Network Video Recorder User Manual
53
No.
Item
Description
10
Power Supply
12 VDC power supply.
11
Power Switch
Switch for turning on/off the device.
12
GND
Ground
DS-8100HTHI-K8

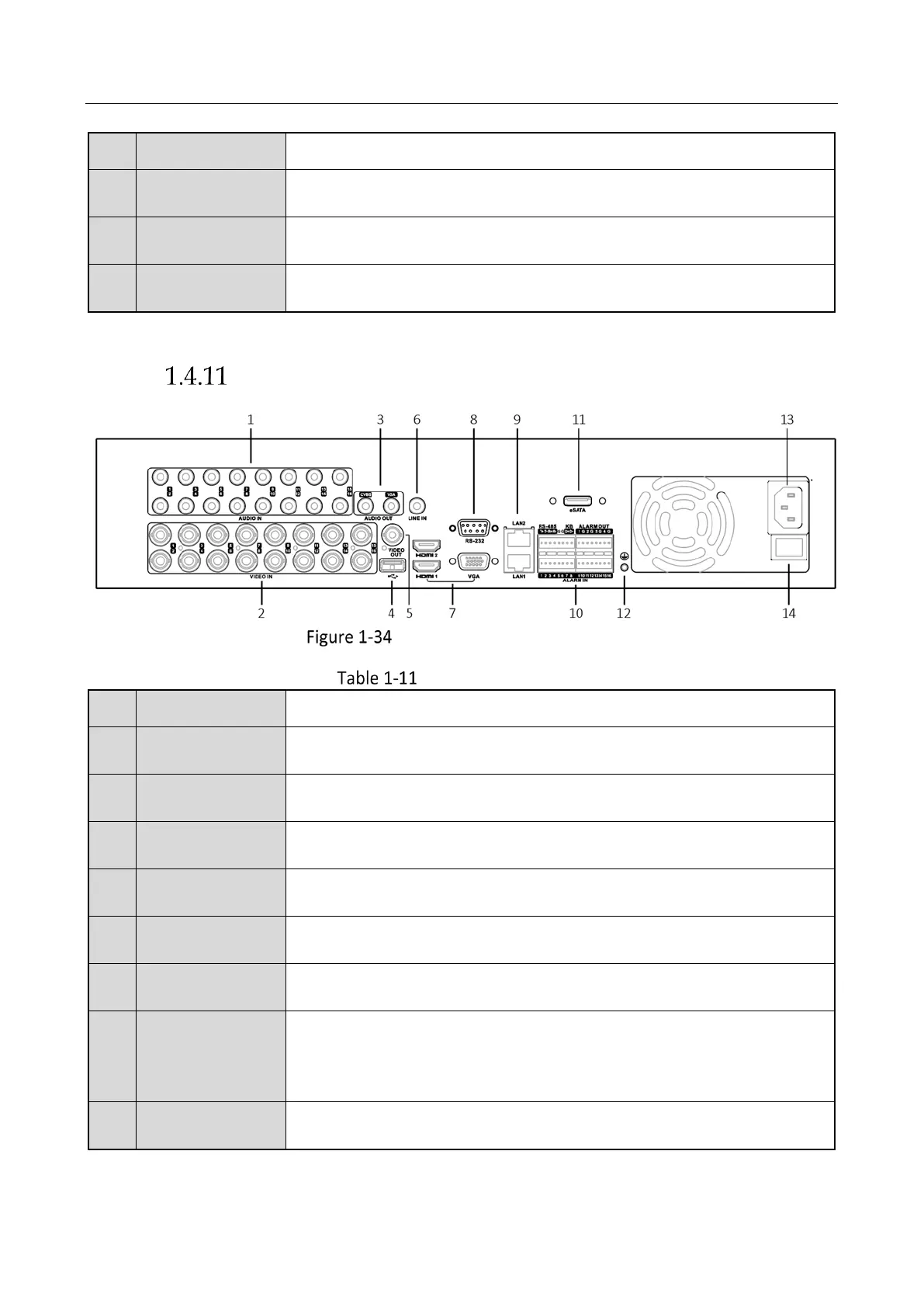

Rear Panel of DS-8100HTHI-K8
Rear Panel Description
No.
Item
Description
1
AUDIO IN
RCA connector.
2
VIDEO IN
BNC interface for Turbo HD and analog video input.
3
AUDIO OUT
RCA connector.
4
USB Interface
Universal Serial Bus (USB) port for additional devices.
5
VIDEO OUT
BNC connector for video output.
6
LINE IN
BNC connector for audio input.
7
HDMI1, HDMI2
and VGA
Interface
HDMI1, HDMI2 and VGA video output connector.
8
RS-232 Interface
Connector for RS-232 devices.
