HIKVISION DS-7200HGHI-K1 Series User Manual

Digital Video Recorder User Manual
29
Table 1-7 Description of Rear Panel 1-5
No.
Item
Description
1
VIDEO IN
BNC interface for Turbo HD and analog video input.
2
AUDIO IN
RCA connector
3
AUDIO OUT
RCA connector.
4
VGA
DB15 connector for VGA output. Display local
video output and menu.
5
HDMI
HDMI video output connector.
6
USB Interface
Universal Serial Bus (USB) port for additional
devices.
7
Network Interface
Connector for network
8
RS-485 Interface
Connector for RS-485 devices.
9
Power Supply
48 VDC or 12 VDC.
10
Power Switch
Switch for turning on/off the device.
11
GND
Ground
12
VIDEO OUT
BNC connector for video output.
13
Alarm In/Out
Connector for alarm input and output.

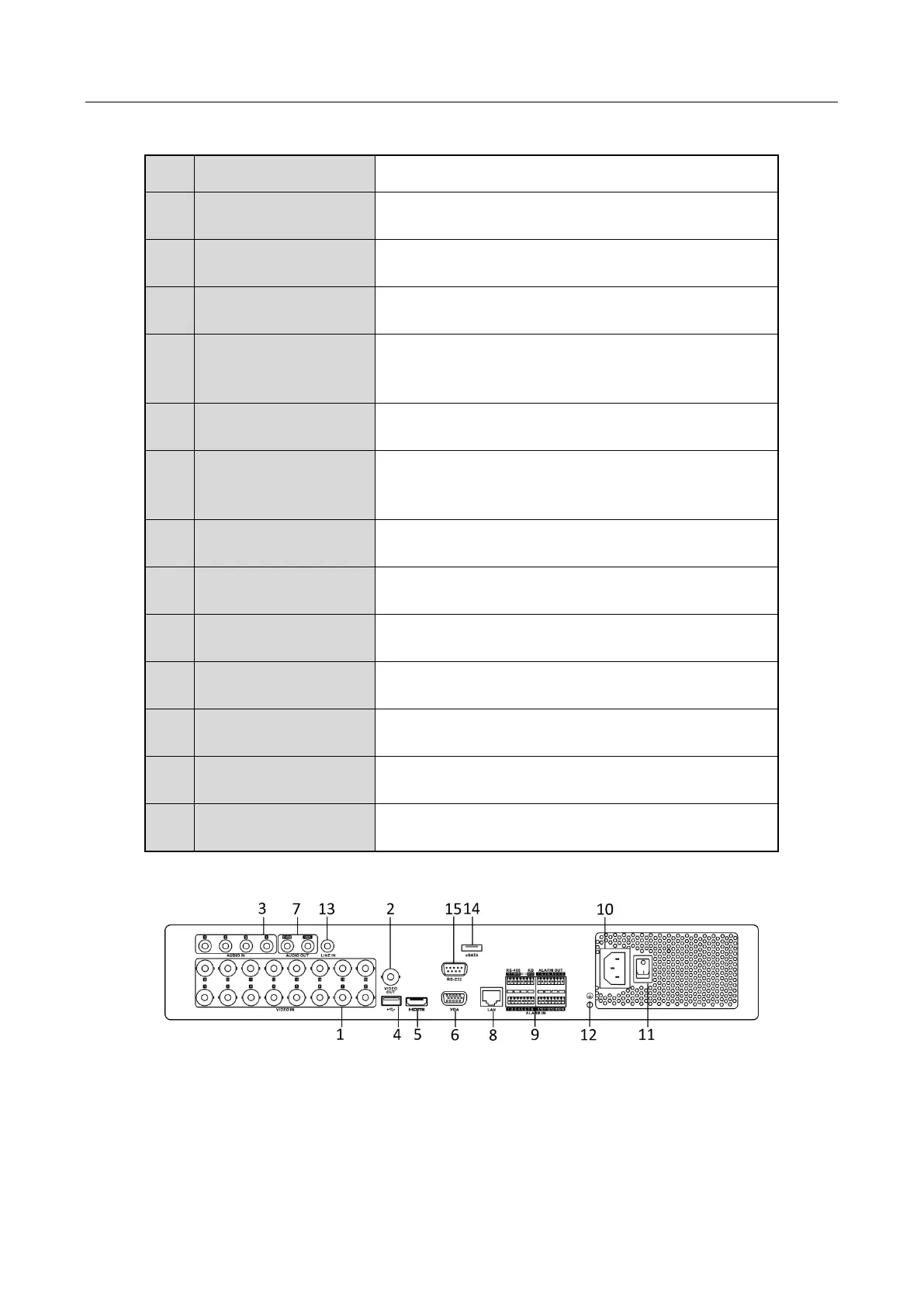

Rear Panel 6:
Figure 1-11 Rear Panel of DS-7300HQHI-K

HIKVISION DS-7200HGHI-K1 Series Specifications

General

Brand	HIKVISION
Model	DS-7200HGHI-K1 Series
Category	DVR
Language	English
