12
Operating Your NVR
There are numerous ways to navigate and operate your NVR. You may use the Front Panel, the IR
(Infrared) Remote, a Mouse and the Soft Keyboard.
Front Panel

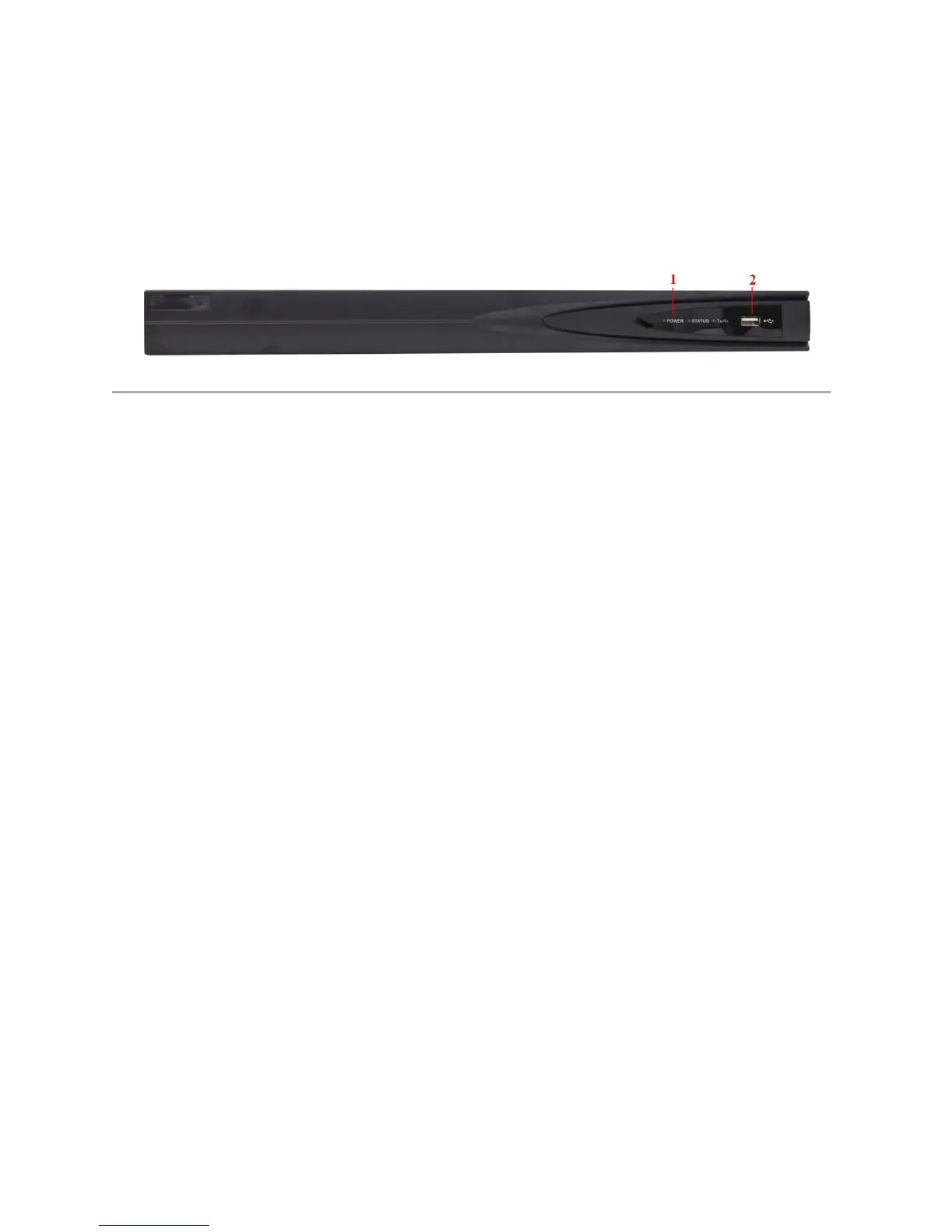

The following figure shows the front panel of DS-7600NI-SE/P:
Figure 4 NVR Front Panel
The items on the front panel include:
1. Status Indicators:
• Power: Power indicator turns yellow when system is running.
• Status: Status indicator blinks red when data is being read from or written to HDD.
• Tx/Rx: Tx/Rx indictor blinks yellow when network connection is functioning properly.
2. USB Ports: Connects USB mouse or USE flash memory devices.
