DS-7600 Series NVR User’s Manual
72

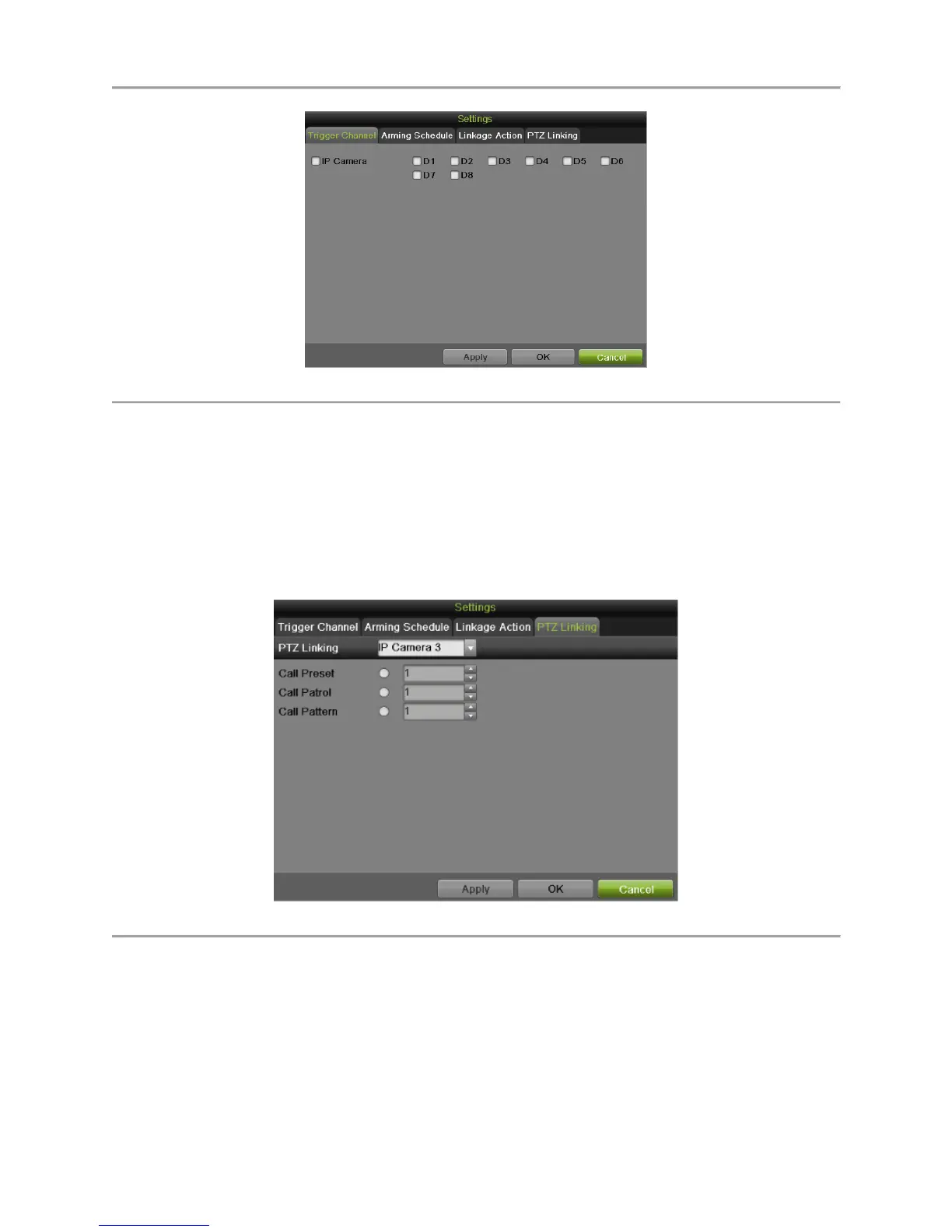

Figure 70 Trigger Channel Settings Menu
1) Select the Trigger Channel tab and check the checkbox of channels which you want the
alarm to trigger recording. Click Apply to save the settings.
2) Select the Arming Schedule tab. Choose one day in a week and set an arming schedule. If the
schedule can also be applied to other days, click Copy. Click Apply to save the settings.
3) Select the Linkage Action tab which is same as Figure 67 to set other actions. Click Apply to
save the settings.
4) Select the PTZ Linking tab, as shown in Figure 71, to set the PTZ actions (only if a PTZ
camera is configured on the NVR). Only one PTZ action can be selected per alarm input.
Click Apply to save the settings.
Figure 71 PTZ Linking Settings Menu
8. If the same settings can be applied to other alarm inputs, click the Copy button to copy the
settings to others.
9. Click Apply to save the settings.
10. You can check the alarm input status in the Alarm Input Status list on the Alarm Input Interface.
Configuring Alarm Outputs
If the camera supports alarm output, there will trigger an alarm output when an alarm is triggered. To
configure alarm output:
