DS-7600 Series NVR User’s Manual
39
Note:
You must click the Apply button after adjusting the configuration of each tab before you move on to
adjust another one.
Note:
Event recordings are recordings that are triggered from motion detection and/ or from an external alarm
(See Configuring Alarms and Exceptions on Page 69).
Note:
If an event occurs during Continuous recording, the frame rate will automatically switch to that set for
Event recording.
Note:
For holiday settings, you can refer to Page 44.
Note:
At least 2 hard disks must be installed when you want to set a HDD to Redundancy mode and one of them
with R/W property.
Configuring Record Schedule
A record schedule allows you to schedule multiple time periods per day for recording. Setting up a record
schedule will allow you to further conserve disk space by recording only during the time periods you
would like to record at.
Steps:
1. Enter the Schedule menu, shown in Figure 30 by going to Menu > Recording Configuration >
Schedule.

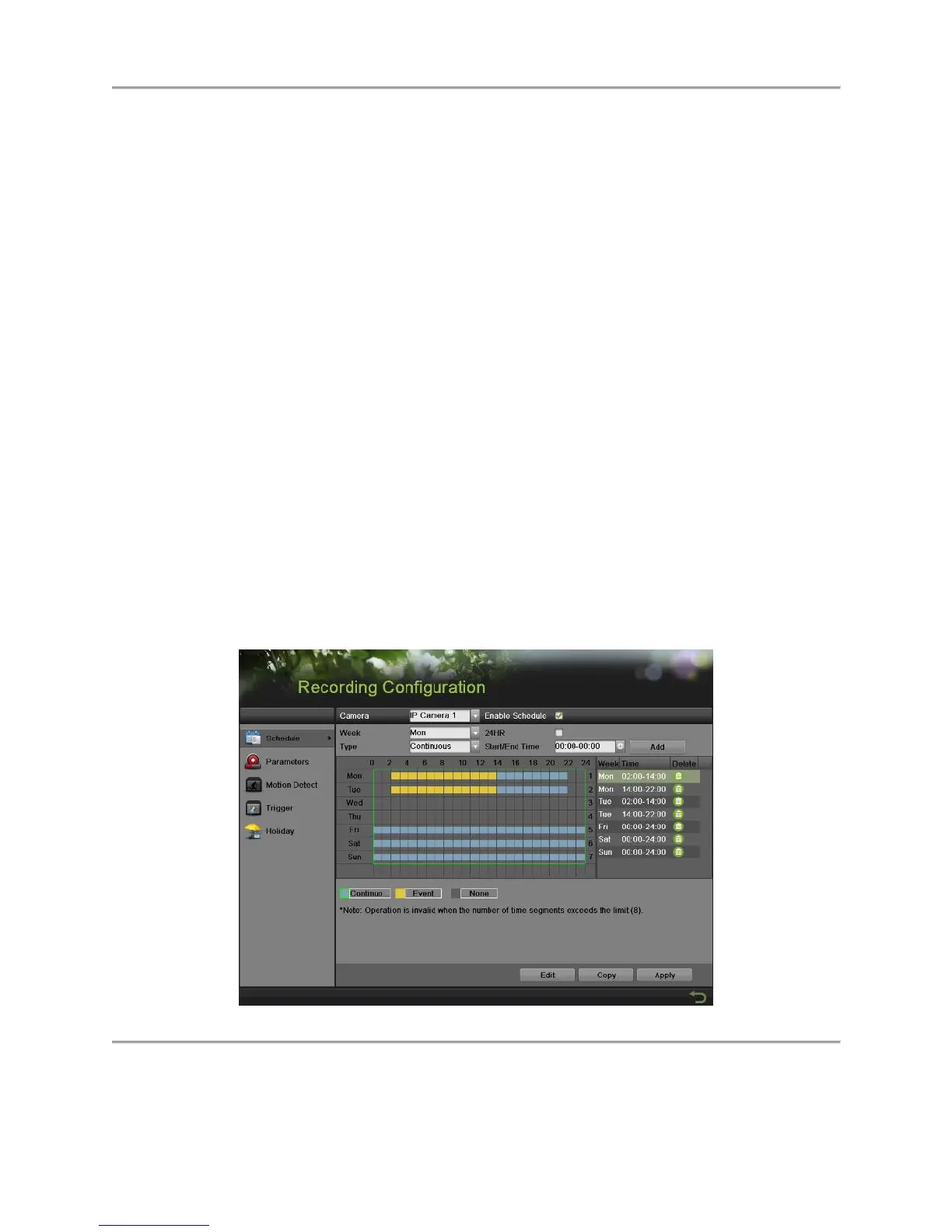

Figure 30 Record Schedule Configuration Menu
2. Select the camera to configure from the camera dropdown list.
3. Check the Enable Schedule checkbox to enable the record schedule. If the checkbox is
unchecked, the record schedule will be disabled.
To Next Page
