DS-7600 Series NVR User’s Manual
82
Configuring Video Loss
Video loss detection can be enabled on any of the channels on your NVR to detect the loss of video.
To configure video loss detection:
1. Enter the Video Loss menu, shown in Figure 92 by going to Menu > Cameras Setup > Video
Loss.

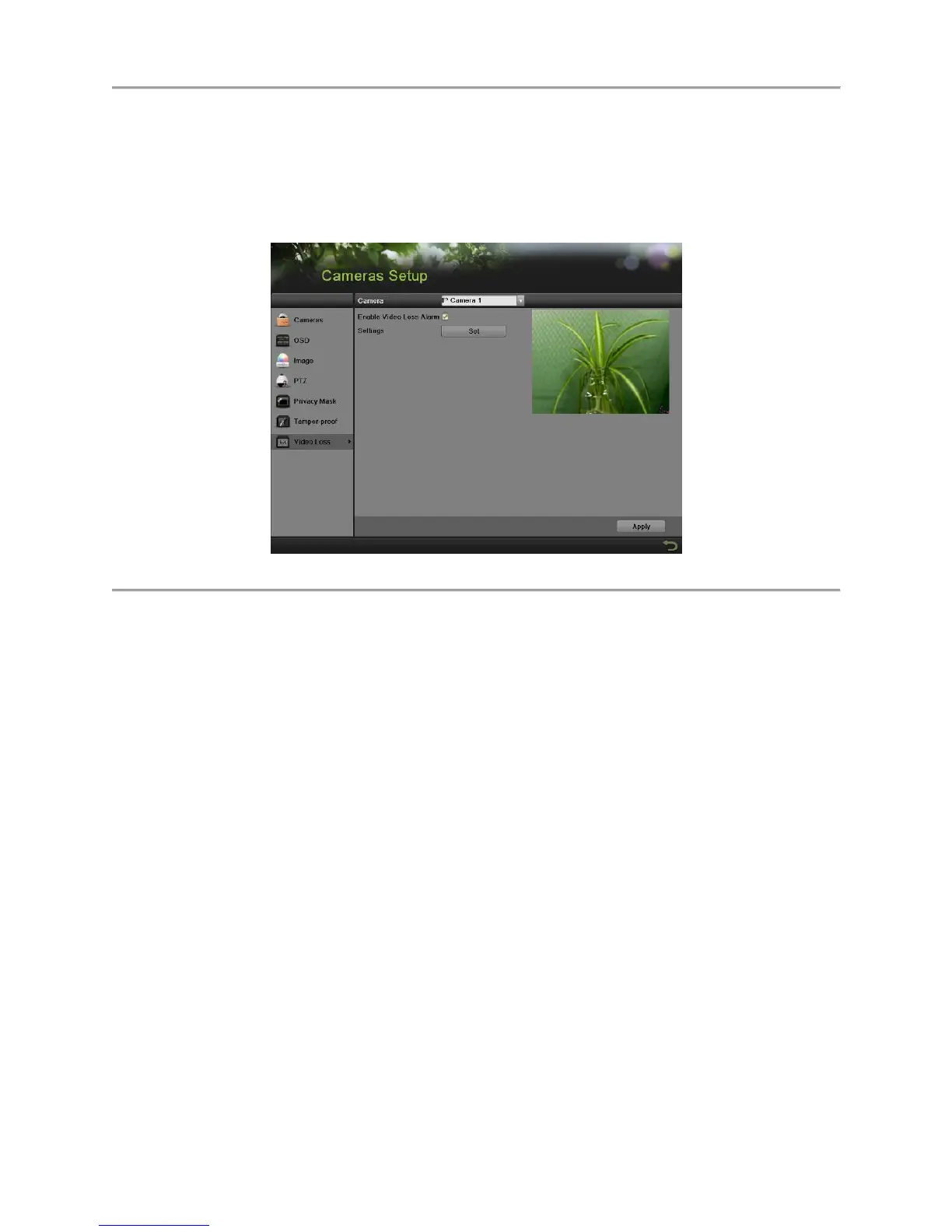

Figure 82 Video Loss Detection Menu
2. Select the camera to setup video loss detection in using the camera dropdown list.
3. Check the Enable Video Loss Detection checkbox.
4. Press the Set button to set up linkage action.
1) Select the Arming Schedule tab to set the arming schedule. Up to 8 periods can be
configured. If the same schedule can be applied in other days, click Copy.
2) Select the Linkage Action tab to set the actions to take if tamper-proof is detected. The detail
instruction of the actions, please refer to Page 70.
5. Click the Apply button to save the settings. Click OK to back to the previous menu.
6. Click the Apply button on the Video Loss interface to save the settings.
Configuring OSD Settings
On Screen Display (OSD) settings can be configured in the OSD menu. The OSD is shown in each
display in Live Feed and Playback mode.
To configure OSD settings:
1. Enter the OSD menu, shown in Figure 83 by going to Menu > Cameras Setup > OSD.
