DS-7600 Series NVR User’s Manual
65
Configuring PTZ Cameras
Configuring Basic PTZ Settings
Settings for a PTZ camera must be configured before it can be used. Before proceeding, verify that the
PTZ camera is connected properly.
To configure PTZ settings:
1. Enter the PTZ menu, shown in Figure 60 by going to Main Menu > Cameras Setup > PTZ.

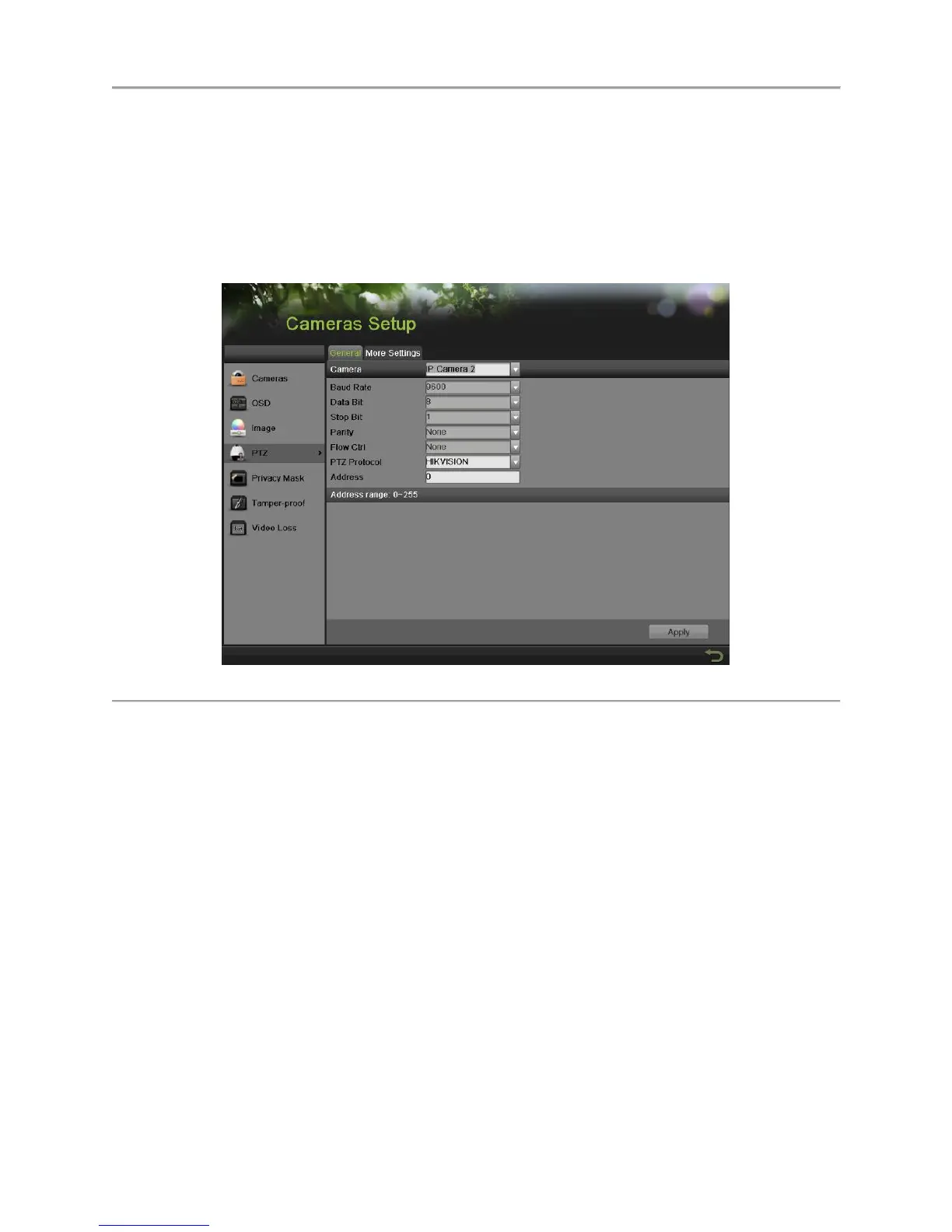

Figure 60 General Settings of PTZ Configuration
2. Select the General tab.
3. Select the PTZ camera to configure in the Camera dropdown list.
4. Configure PTZ settings, including those of Baud Rate, Data Bit, Stop Bit, Parity, Flow Ctrl, PTZ
Protocol and Address according to the parameters of the PTZ camera(s).
5. Click the Apply button to save the settings.
Note:
All the parameters should be exactly the same as the PTZ camera parameters. For example, if the PTZ
camera uses the protocol of Hikvision, you should select Hikvision in the PTZ Protocol field.
To test and verify PTZ settings:
1. Enter the PTZ Configuration menu by going to Menu > Cameras Setup > PTZ.
2. Select the More Settings tab, shown in Figure 61.
