DS-KV8x13-WME1 Video Intercom Villa Door Station User Manual
UM DS-KV8x13-WME1 Villa Door Station 062321NA 14
NOTE: Terminal NC1/COM1 is set as default for accessing magnetic lock/electric bolt.
Terminal NO1/COM1 is set as default for accessing electric strike.
To connect electric lock in terminal NO2/COM2/NC2, it is required to set the output of
terminal NO2/COM2/NC2 to be electric lock with the iVMS-4200 client software.
Door Contact Wiring

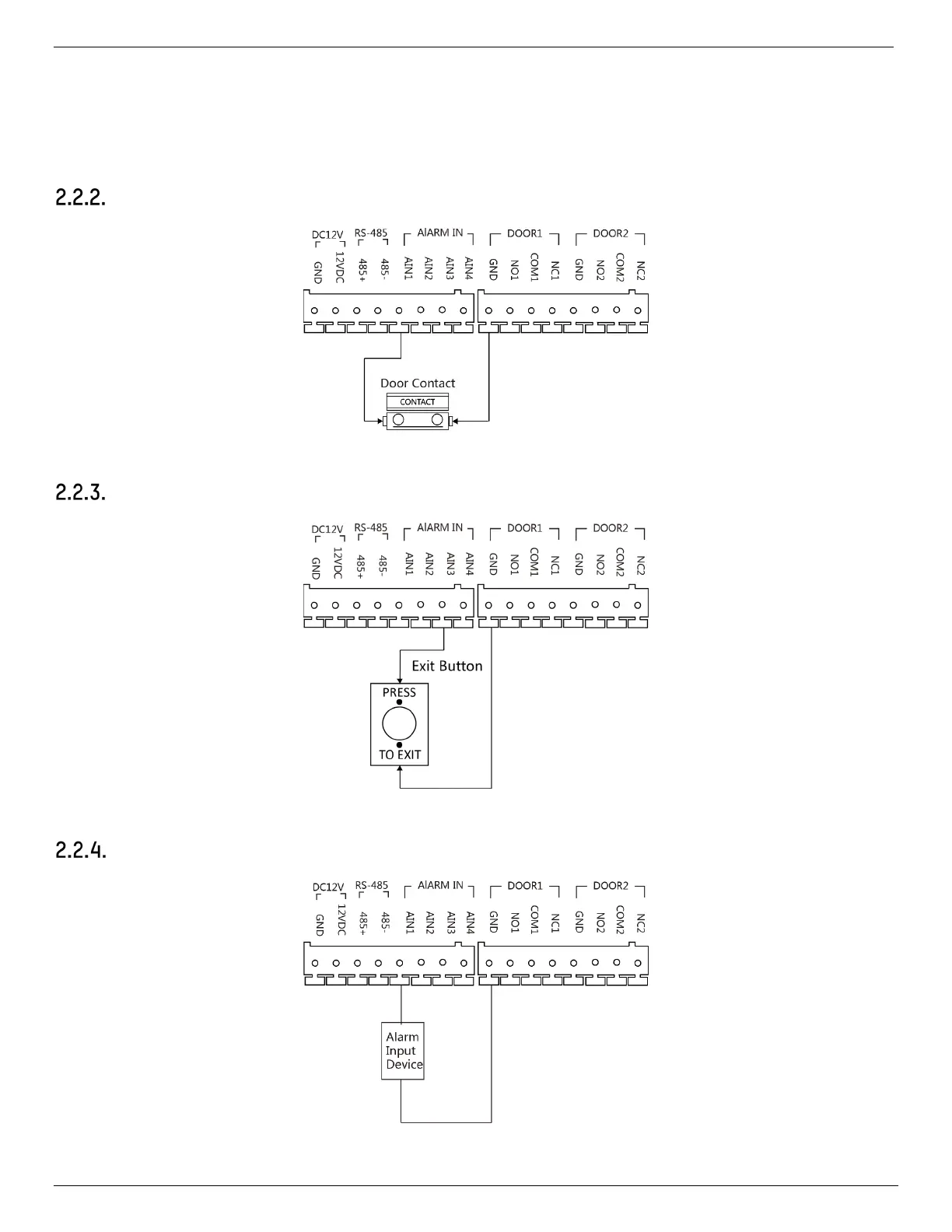

Figure 6, Door Contact Wiring
Exit Button Wiring
Figure 7, Exit Button Wiring
Alarm Input Device Wiring
Figure 8, Alarm Input Device Wiring
