DS-KV8x13-WME1 Video Intercom Villa Door Station User Manual
UM DS-KV8x13-WME1 Villa Door Station 062321NA 23
5.5.
System Settings
Follow the instructions below to configure the system settings, include System Settings, Maintenance,
Security, User Management, etc.
Click System to enter the settings page.
Basic Information: Click System Settings Basic Information to enter the settings page. On the page,
you can edit Device Name and Device No. Set the Language and System Type according to your needs.
Click Save to enable the settings.
Time Settings: Click System Settings Time Settings to enter the settings page. Select the Time Zone of
your location from the drop-down list.
Enable NTP, set the Server Address, NTP Port, and Interval.
Enable Manual Time Sync., set the time manually or check the Sync. with computer time.
Click Save to enable the settings.
DST: Click System Settings DST to check Enable DST. Set the parameters according to your needs and
click Save to enable the settings.
About: Click System Settings About and click Open Source Software Licenses to view the details.
Maintenance: Click Maintenance Upgrade & Maintenance to enter the settings page.

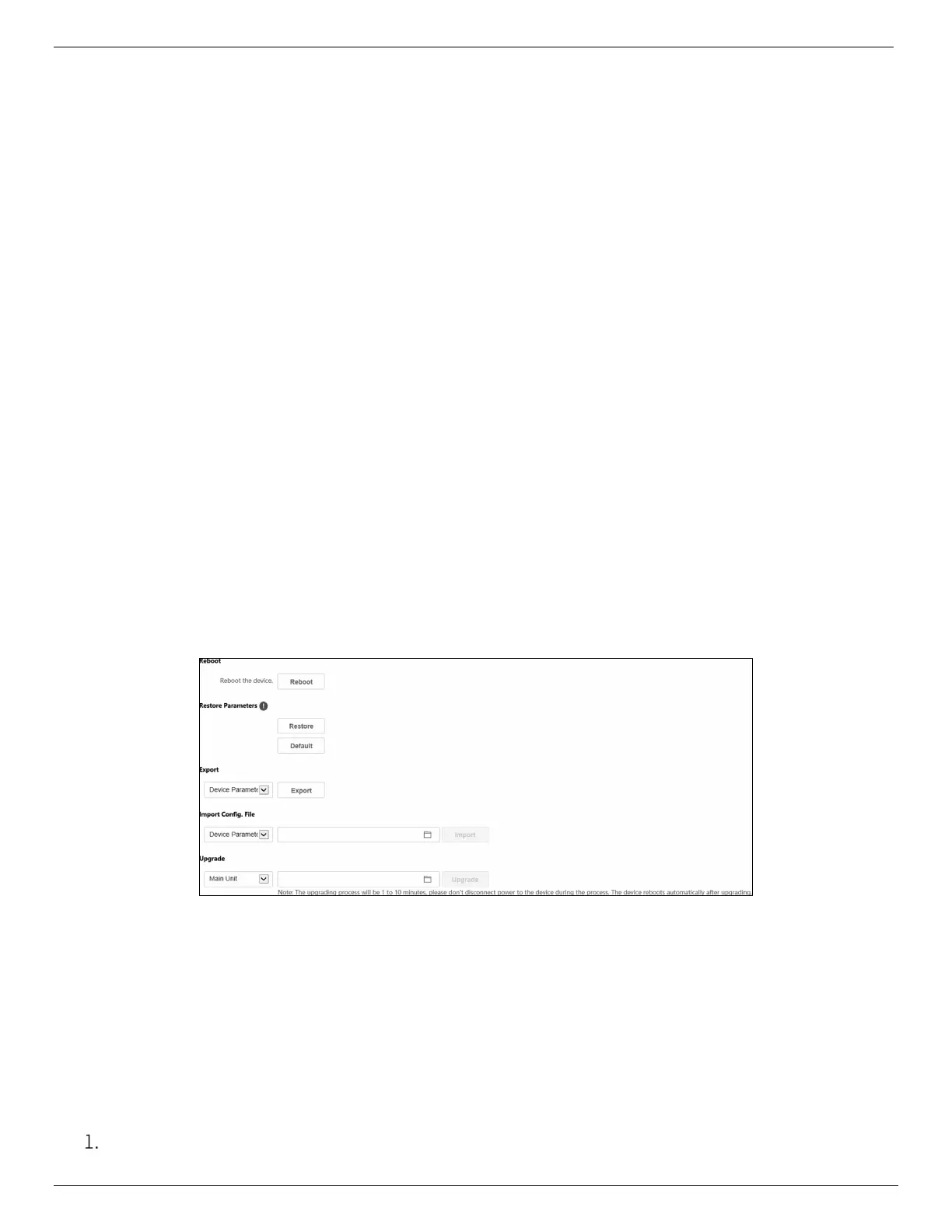

Figure 18, Maintenance
Reboot: Click Reboot to reboot the device.
Restore: Click Restore to reset all the parameters, except the IP parameters and user information, to
the default settings.
Default: Click Default to restore all parameters to the default settings.
Export parameters:
Select Device Parameters, and click Export to pop up the dialog box.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-KV8213-WME1 and is the answer not in the manual?

HIKVISION DS-KV8213-WME1 Specifications

General IconGeneral
Color-
Relay inputs1
SpeakerphoneYes
Number of buttons2 buttons
Connectivity technologyWired
Megapixel2 MP
Maximum frame rate30 fps
Supported video modes480p, 1080p
Viewing angle, vertical75 °
Maximum video resolution1920 x 1080 pixels
Viewing angle, horizontal129 °
Voice codecsG.711u
LED typeIR
Night vision distance3 m
Outdoor unit power typeDC
Power consumption (typical)10 W
Display diagonal- \
Operating temperature (T-T)-40 - 53 °C
Operating relative humidity (H-H)10 - 95 %
IK codeIK08
Proper useOutdoor
Product colorGray
International Protection (IP) codeIP65
Package depth120 mm
Package width140 mm
Package height220 mm
Indoor unit includedNo
Networking standardsIEEE 802.3af
Ethernet LAN data rates10, 100 Mbit/s
Ethernet interface typeFast Ethernet
Supported network protocolsTCP/IP, RSTP
Operating system installedLinux
Weight and Dimensions IconWeight and Dimensions
Weight385 g
