HIKVISION DS-KV8213-WME1 User Manual

DS-KV8x13-WME1 Video Intercom Villa Door Station User Manual
UM DS-KV8x13-WME1 Villa Door Station 062321NA 16

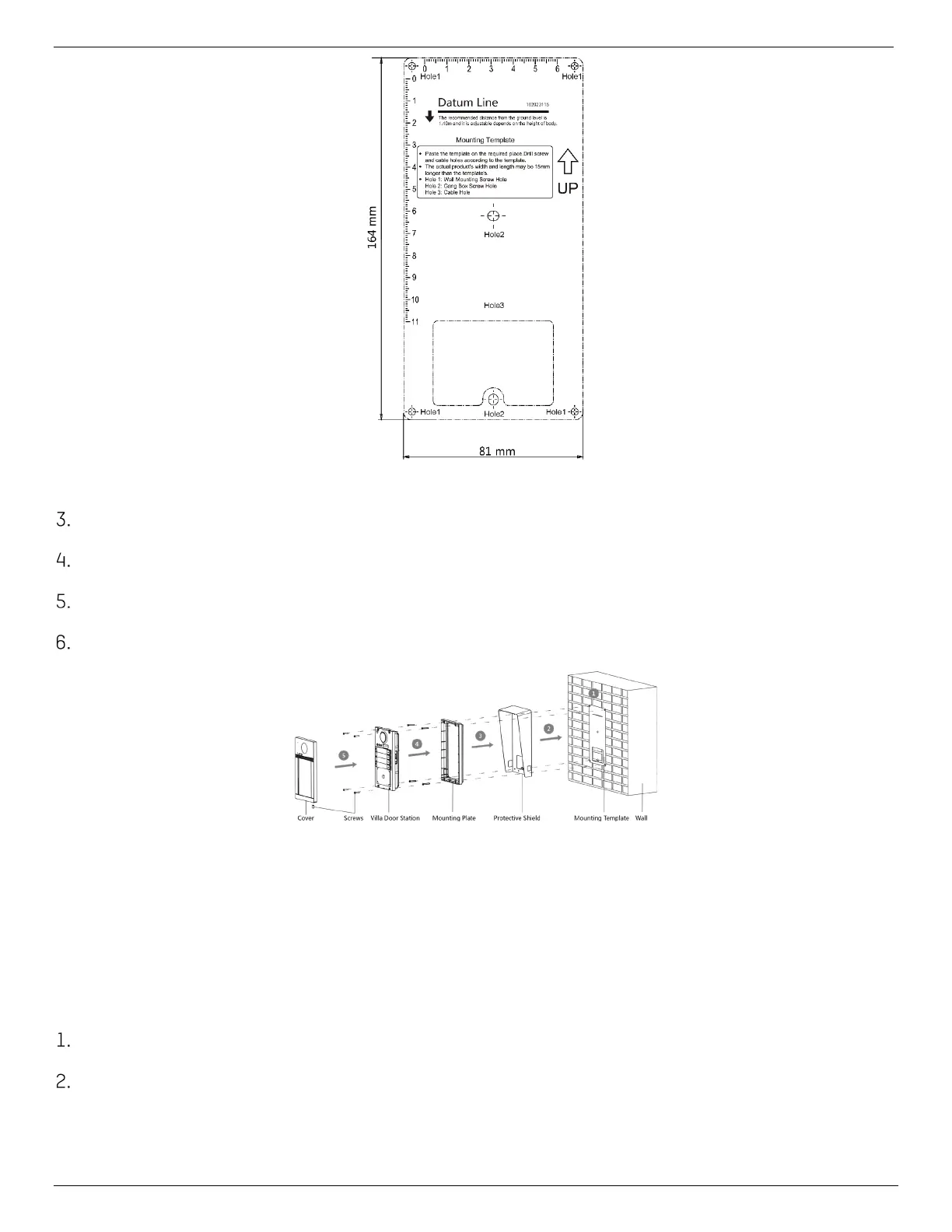

Figure 10, Mounting Template
Align the protective shield with the mounting template.
Secure the mounting plate on the wall with four supplied screws according to the screw holes.
Secure the device on the mounting plate with the four supplied set screws.
Affix the cover onto the device with the screw.
Figure 11, Surface Mounting with Protective Shield
3.3. Surface Mounting without Protective Shield
Before You Start
Tools that you need to prepare for installation: Drill (ø2.846) and gradienter.
Steps
Stick the mounting template on the wall. Drill screw holes according to the mounting template.
Remove the template from the wall.

HIKVISION DS-KV8213-WME1 Specifications

General

Color	-
Relay inputs	1
Speakerphone	Yes
Number of buttons	2 buttons
Connectivity technology	Wired
Megapixel	2 MP
Maximum frame rate	30 fps
Supported video modes	480p, 1080p
Viewing angle, vertical	75 °
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	129 °
Voice codecs	G.711u
LED type	IR
Night vision distance	3 m
Outdoor unit power type	DC
Power consumption (typical)	10 W
Display diagonal	- \
Operating temperature (T-T)	-40 - 53 °C
Operating relative humidity (H-H)	10 - 95 %
IK code	IK08
Proper use	Outdoor
Product color	Gray
International Protection (IP) code	IP65
Package depth	120 mm
Package width	140 mm
Package height	220 mm
Indoor unit included	No
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, RSTP
Operating system installed	Linux

Weight and Dimensions

Weight	385 g
