DS-KV8x13-WME1 Video Intercom Villa Door Station User Manual
UM DS-KV8x13-WME1 Villa Door Station 062321NA 25
• Arming/Disarming Information
Click User Management → Arming/Disarming Information to view the information.
Click Refresh to get the present information.
Network Settings TCP/IP Settings
TCP/IP settings must be properly configured before you operate the device over a network. The device
supports IPv4.
Steps
Click Network → Basic Settings → TCP/IP to enter the settings page.

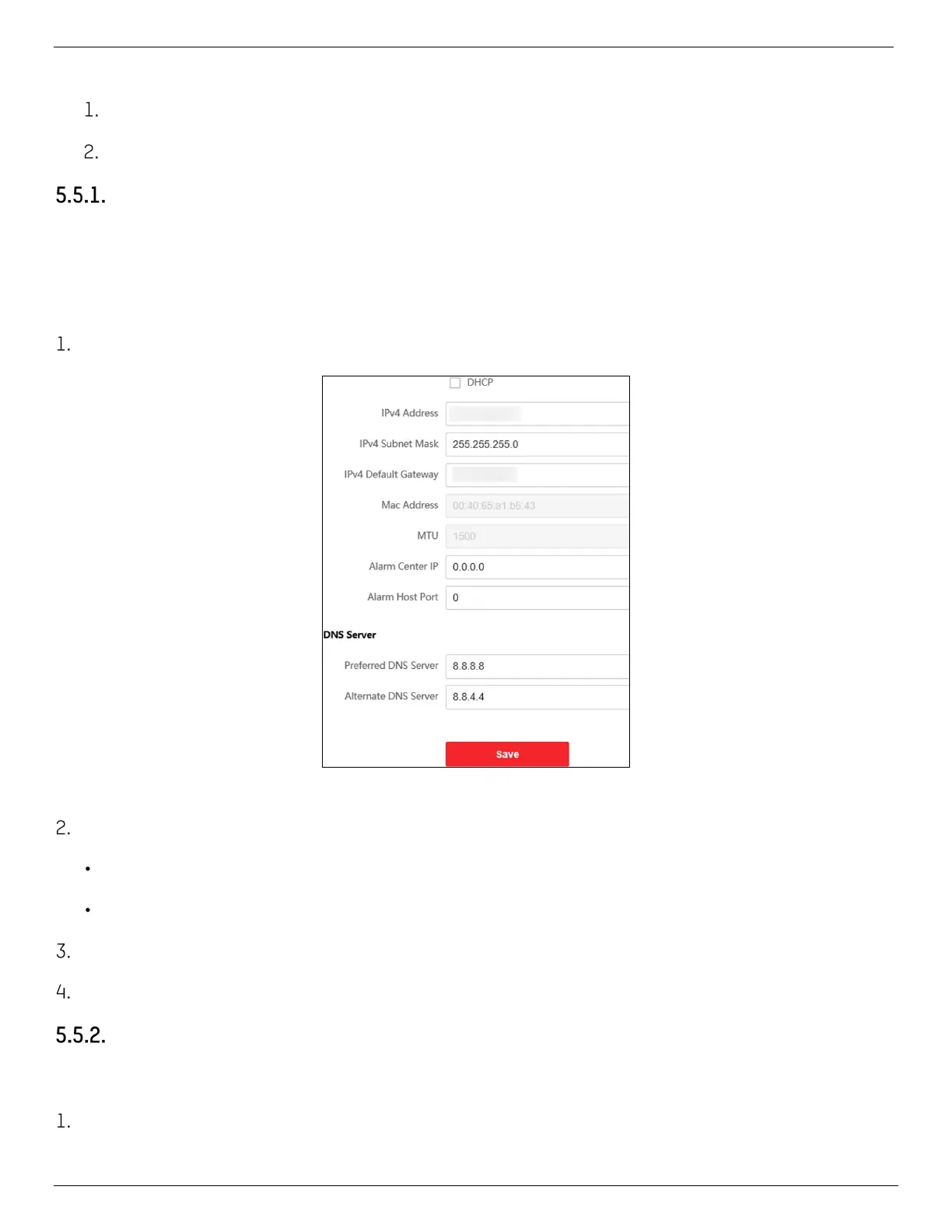

Figure 20, TCP/IP Settings
Configure the network parameters.
Check DHCP, the device will get the parameters automatically.
Set the IPv4 Address, IPv4 Subnet Mask, and IPv4 Default Gateway manually.
Configure the corresponding DNS server parameters.
Click Save to enable the settings.
Port Settings
Steps
Click Network → Basic Settings → Port to enter the settings page.

HIKVISION DS-KV8213-WME1 Specifications

General

Color	-
Relay inputs	1
Speakerphone	Yes
Number of buttons	2 buttons
Connectivity technology	Wired
Megapixel	2 MP
Maximum frame rate	30 fps
Supported video modes	480p, 1080p
Viewing angle, vertical	75 °
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	129 °
Voice codecs	G.711u
LED type	IR
Night vision distance	3 m
Outdoor unit power type	DC
Power consumption (typical)	10 W
Display diagonal	- \
Operating temperature (T-T)	-40 - 53 °C
Operating relative humidity (H-H)	10 - 95 %
IK code	IK08
Proper use	Outdoor
Product color	Gray
International Protection (IP) code	IP65
Package depth	120 mm
Package width	140 mm
Package height	220 mm
Indoor unit included	No
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, RSTP
Operating system installed	Linux

Weight and Dimensions

Weight	385 g
