HIKVISION HWP-N2404IH-DE3 User Manual

Network Speed Dome User Manual
48

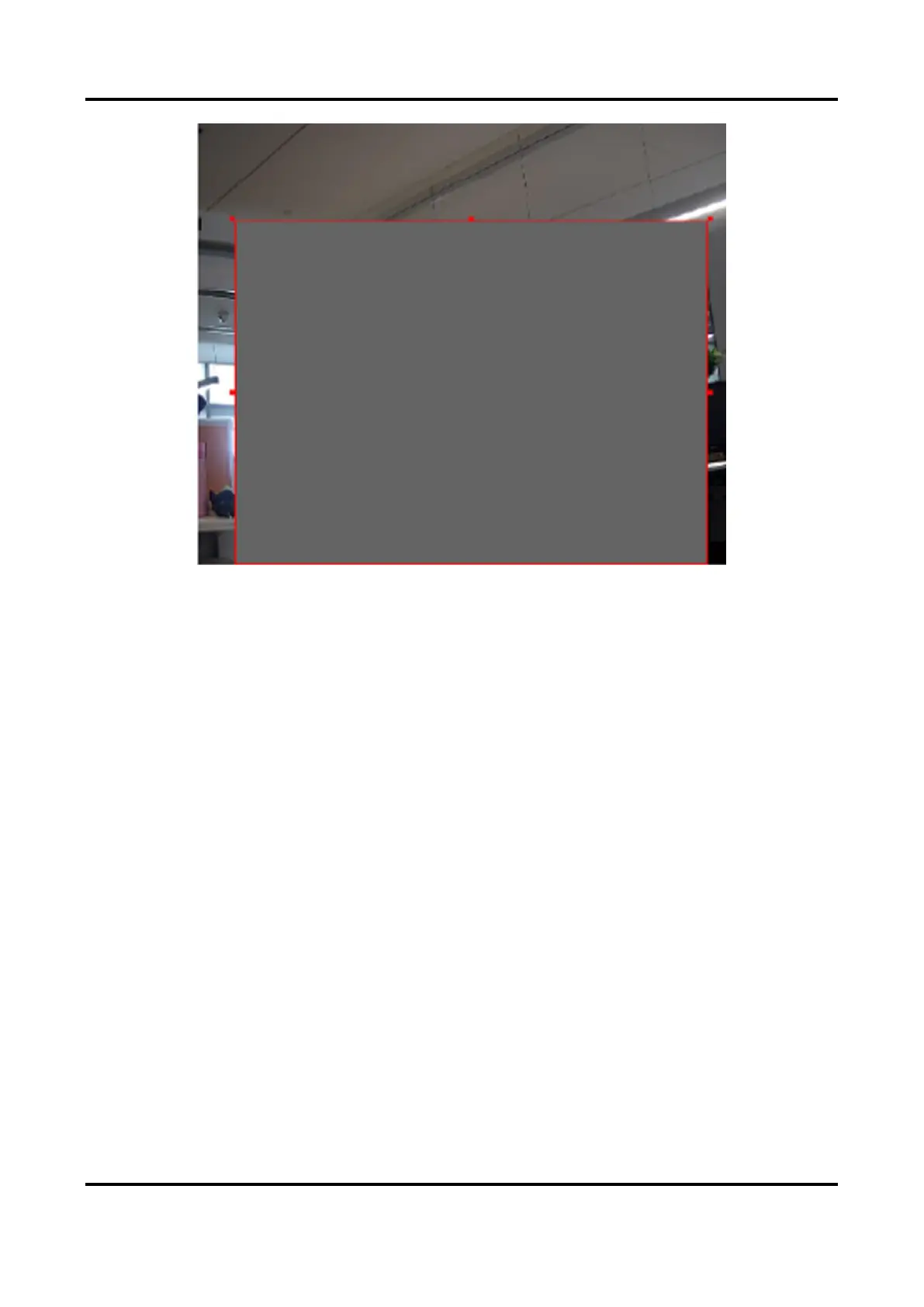

Figure 7-3 Set Video Tampering Area
5. Refer to Set Arming Schedule for setting scheduled time. Refer to Linkage Method Settings for
setting linkage method.
6. Click Save.
7.1.3 Set Exception Alarm
Exception such as network disconnection can trigger the device to take corresponding action.
Steps
1. Go to Configuration → Event → Basic Event → Exception.
2. Select Exception Type.
HDD Full
The HDD storage is full.
HDD Error
Error occurs in HDD.
Network
Disconnected
The device is offline.
IP Address Conflicted
The IP address of current device is same as that of other device in the
network.
Illegal Login
Incorrect user name or password is entered.
3. Refer to Linkage Method Settings for setting linkage method.

HIKVISION HWP-N2404IH-DE3 Specifications

General

Brand	HIKVISION
Model	HWP-N2404IH-DE3
Category	Security Camera
Language	English
