7.2 Displaying Trends
95
Chapter 7 Monitoring Fluctuations in Measured Val-
7
Displayed items and channels
Allows you to select the displayed item and channel. Which channels
are available depends on the selected displayed item.
• For, Freq, Uunb, and Iunb, you can select a detailed measurement item, rather than a channel.
• AVG indicates the average value for channels 1 through 3 (varies with connection).
• Sum indicates the sum for channels 1 through 3 (varies with connection).

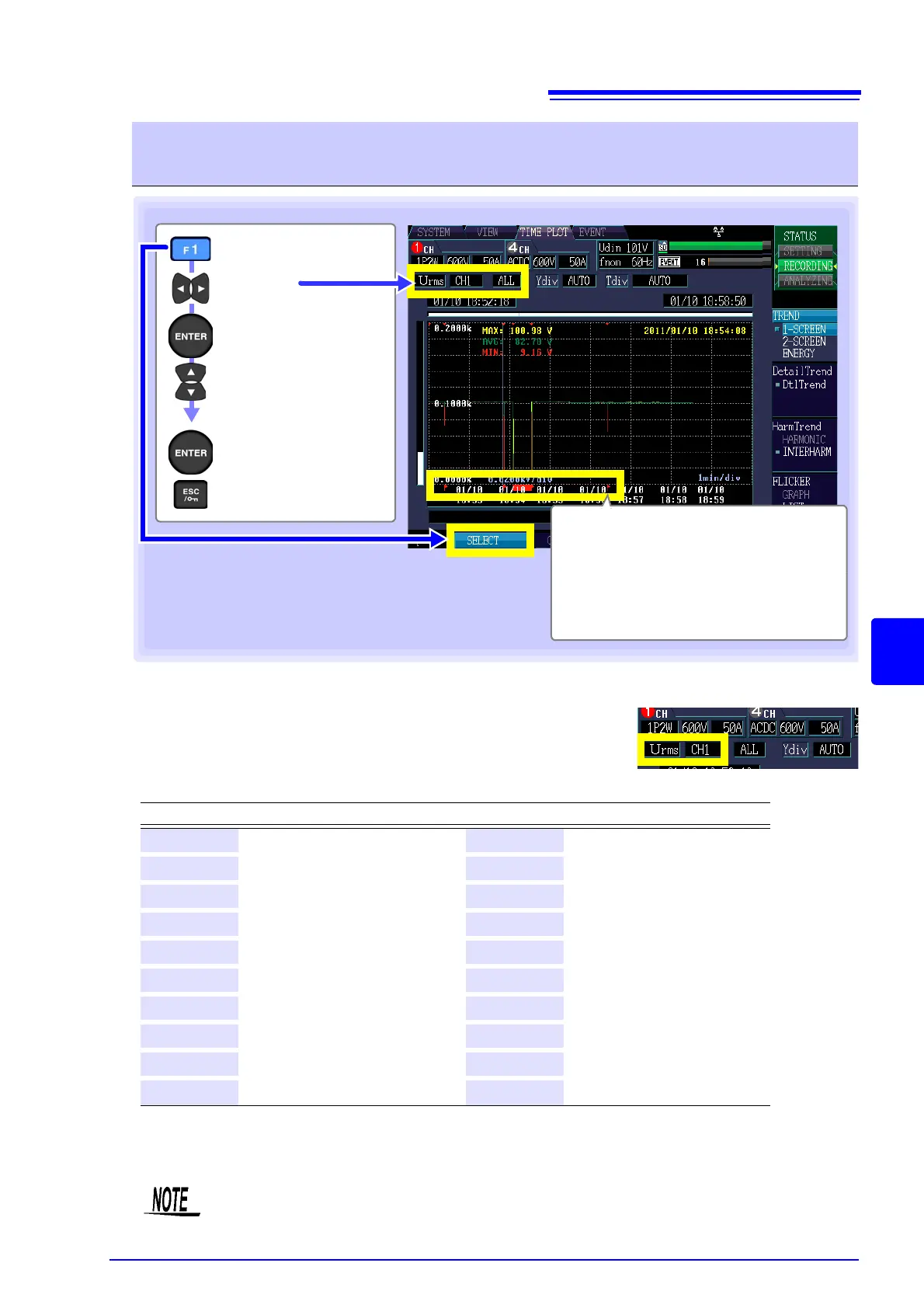

Changing the displayed items, channels, waveforms, or measured
value ([1-SCREEN] and [2-SCREEN] screen)
Display the
pull-down menu
Select a setting
Accept the setting
Cancel
[SELECT]
Select
Flag
Indicates that a dip, swell, or interruption oc-
curred during the displayed TIMEPLOT inter-
val based on IEC61000-4-30 flag conversion.
A flag indicates that integrated values may be
unreliable.
See: "Flags" (p.100)
Settings:( : Default)
Displayed item Displayed channel Displayed item Displayed channel
Freq Freq
f10s Ipk-
CH1
CH2 CH3 CH4
Urms
CH1
CH2 CH3 CH4 AVG Idc
CH4
Upk+
CH1
CH2 CH3 CH4 Iunb
unb
unb0
Upk-
CH1
CH2 CH3 CH4 IharmH
CH1
CH2 CH3 CH4
Udc
CH4
Ithd
CH1
CH2 CH3 CH4
Uunb
unb
unb0 P
CH1
CH2 CH3 sum
UharmH
CH1
CH2 CH3 CH4 S
CH1
CH2 CH3 sum
Uthd
CH1
CH2 CH3 CH4 Q
CH1
CH2 CH3 sum
Irms
CH1
CH2 CH3 CH4 AVG PF
CH1
CH2 CH3 sum
Ipk+
CH1
CH2 CH3 CH4 KF
CH1
CH2 CH3 CH4
The channels available for selection vary with the connection mode setting.
