7.3 Displaying detailed trends
105
Chapter 7 Monitoring Fluctuations in Measured Val-
7
During recording, the X- and Y-axis are automatically scaled so that the full time series graph fits on the
screen. Once recording has stopped and the X- and Y-axis scale has been changed so that the waveforms do
not fit on the screen, you can scroll through the time series graph by moving left, right, up, and down.

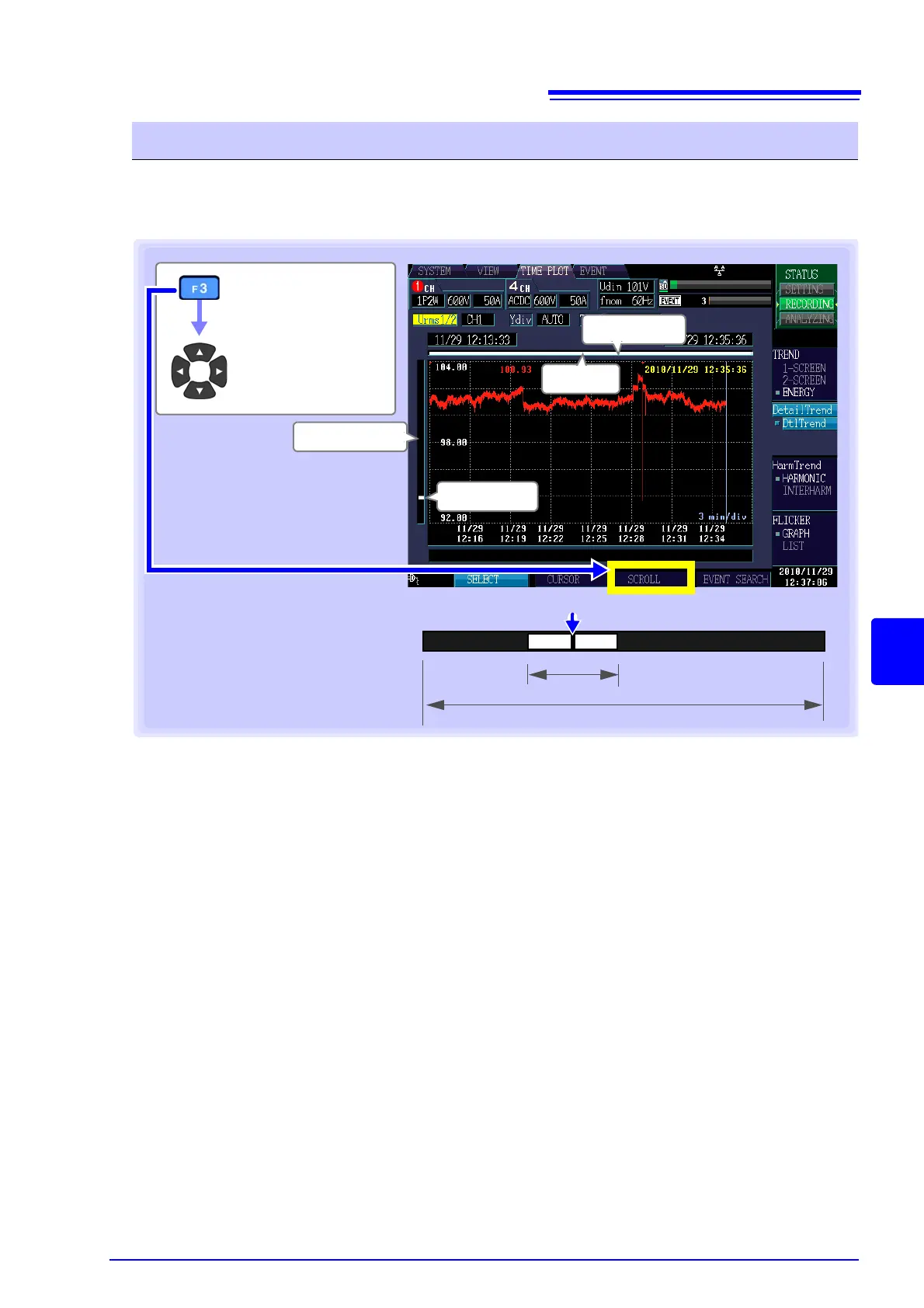

Scrolling through display data
[SCROLL]
Scroll through the
graph
Scroll bar
Scroll bar
Scroll bar
Display scope
All measurement data
Display scope
Display scope
Cursor position
• The display scope on the scroll bar
(shown in white) illustrates which
range of all measurement data is
being shown on the screen.
• The cursor on the scroll bar shows
where the cursor is located relative to
all measurement data.
