7.5 Displaying Flicker Values in Graph and List Form
117
Chapter 7 Monitoring Fluctuations in Measured Val-
7

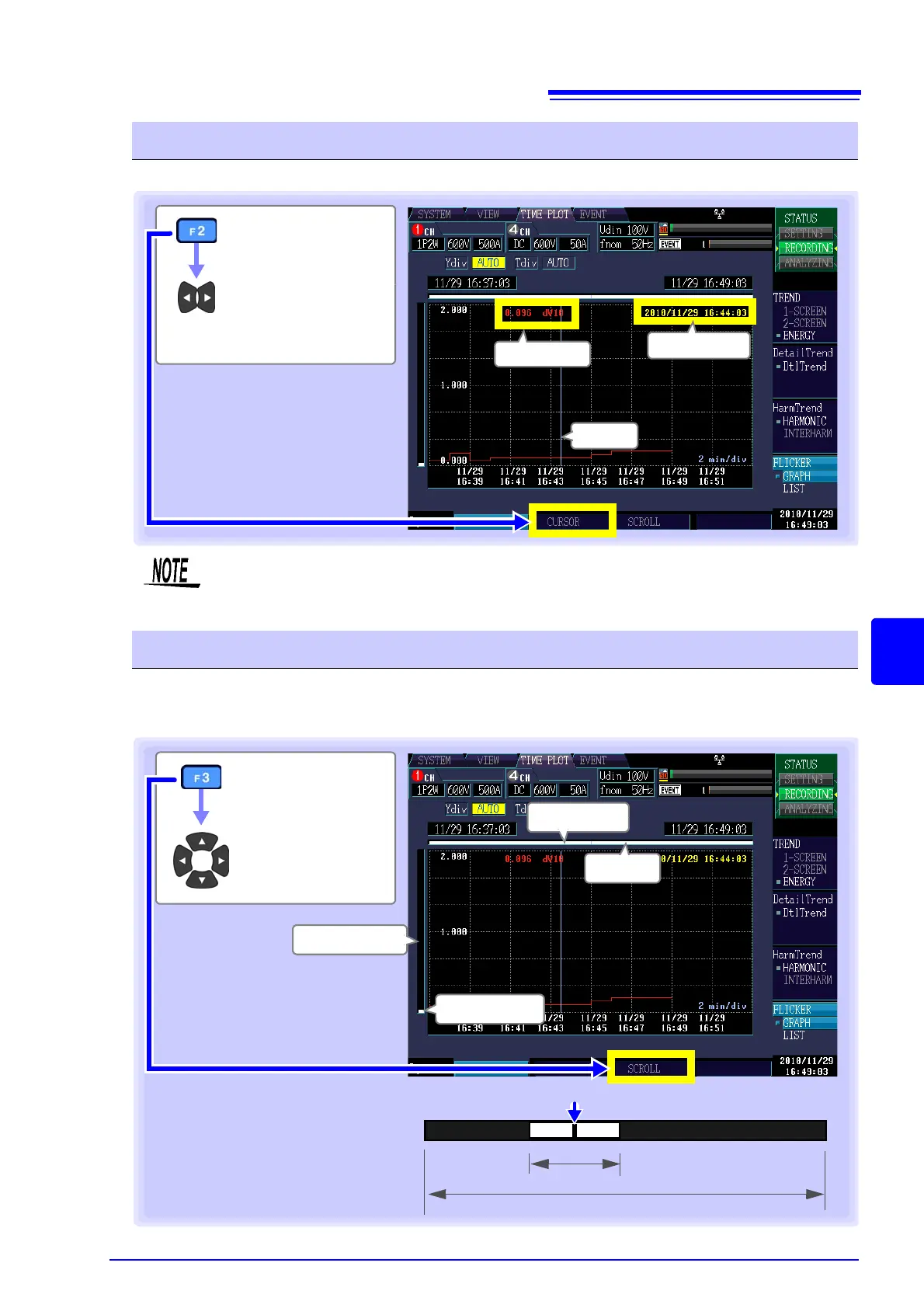

This section describes how to read the V10 flicker measured value once a minute.
During recording, the X- and Y-axis are automatically scaled so that the full time series graph fits on the
screen. Once recording has stopped and the X- and Y-axis scale has been changed so that the waveforms do
not fit on the screen, you can scroll through the time series graph by moving left, right, up, and down.
Reading the value above the cursor (Cursor measurements)
[CURSOR]
Move the vertical
cursor left and
right to read the
display value.
Cursor value
Left: Measured value
Right: V10
Cursor
Cursor time
Cursor value
The time displayed during cursor measurement is based on the CH1 voltage (U1). The
event time shown on the event list and the time displayed during cursor measurement
may not agree.
Scrolling through waveforms
[SCROLL]
Scroll through the
graph
Scroll bar
Scroll bar
Display scope
Display scope
Scroll bar
Display scope
All measurement data
Cursor position
• The display scope on the scroll bar
(shown in white) illustrates which
range of all measurement data is
being shown on the screen.
• The cursor on the scroll bar shows
where the cursor is located relative to
all measurement data.
To Next Page
