8.3 Analyzing the Measurement Line Status When Events Occur
125
Chapter 8 Checking Events (EVENT screen)
8
You can change to the event generation screens (DF1 [WAVE], DF2 [HARMONICS], DF3
[DMM], and DF4 [EVENT]) by pressing a DF key from the event waveform screen.

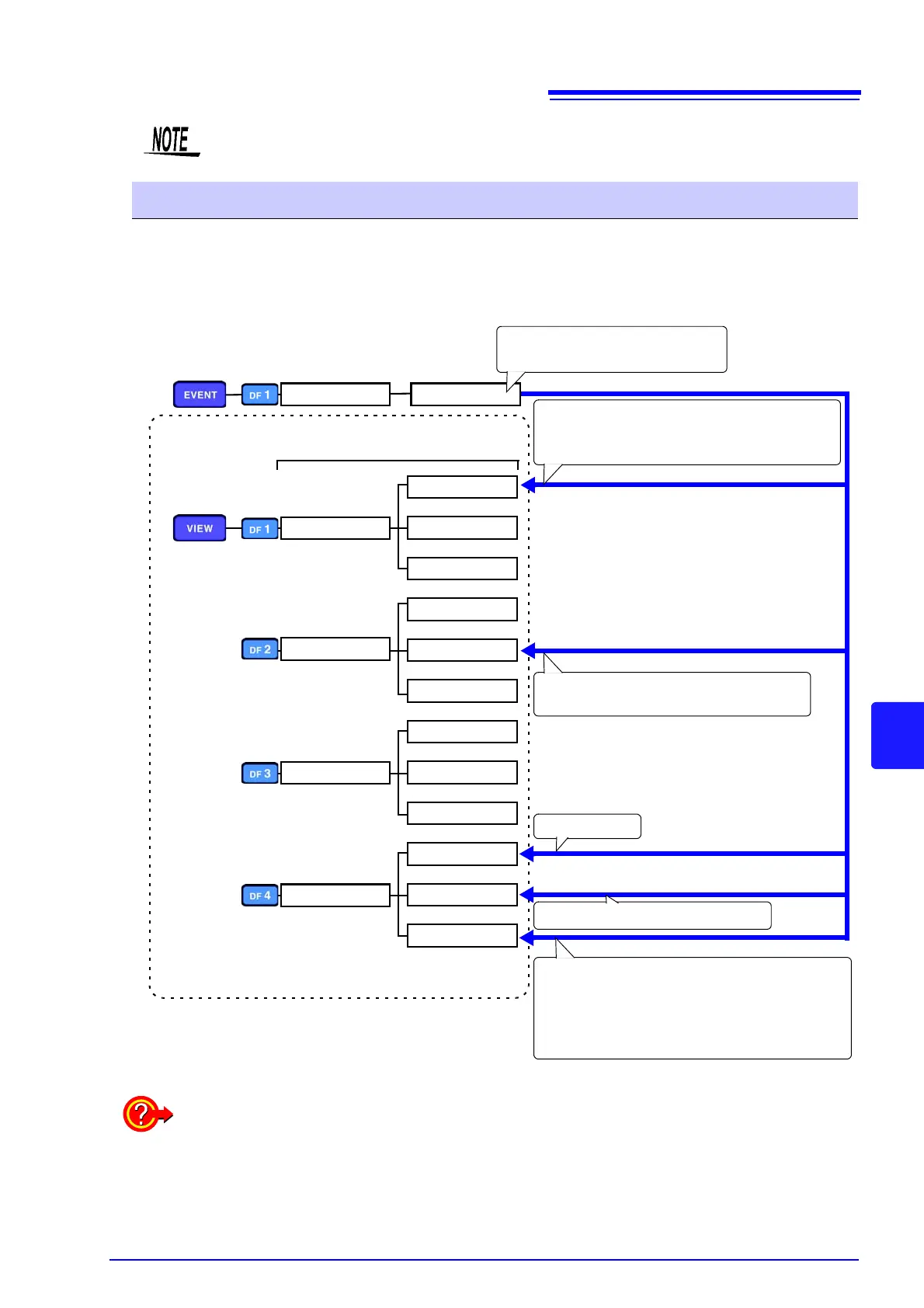

Screen transitions and measurement data when events occur
[ANALYZING]
mode
Screen display switching with DF
keys
Displays the instant the event occurred.
TRANSIENT
HARMONIC
DMM
EVENT
TrendData
HHarmonic
CURRENT
VOLTAGE
POWER
LIST
GRAPH
VECTOR
WAVE
VOLTAGE
CURRENT
VOLT/CURR
EVENT LIST
Event jump function
Moving the cursor to the event you wish to view on the event list and pressing the ENTER key displays the measurement data
for that time. The screen displayed initially varies with the event that occurred. Subsequently, you can press a DF key to display
the desired screen and check measurement data.
Frequency, one frequency cycle, voltage, current,
power, power factor, unbalance factor, distortion fac-
tor, waveform comparison, timer, continuous, and ex-
ternal events
Harmonic voltage, harmonic current, harmonic
power, and K factor events
Transient events
Swell, dip, interruption, and inrush current IN events
Note1: For OUT events, the display jumps to the [VOLT/
CURR] screen.
Note2: When a series of swell, dip, interruption, or inrush
current IN events occur, there may be no fluctua-
tion data.
High-order harmonic component events
Move the cursor to the event you wish to
view and press the ENTER key.
How can event waveforms be recorded?
See: "Appendix 4 Recording TIMEPLOT Data and Event Waveforms" (p.A14)
