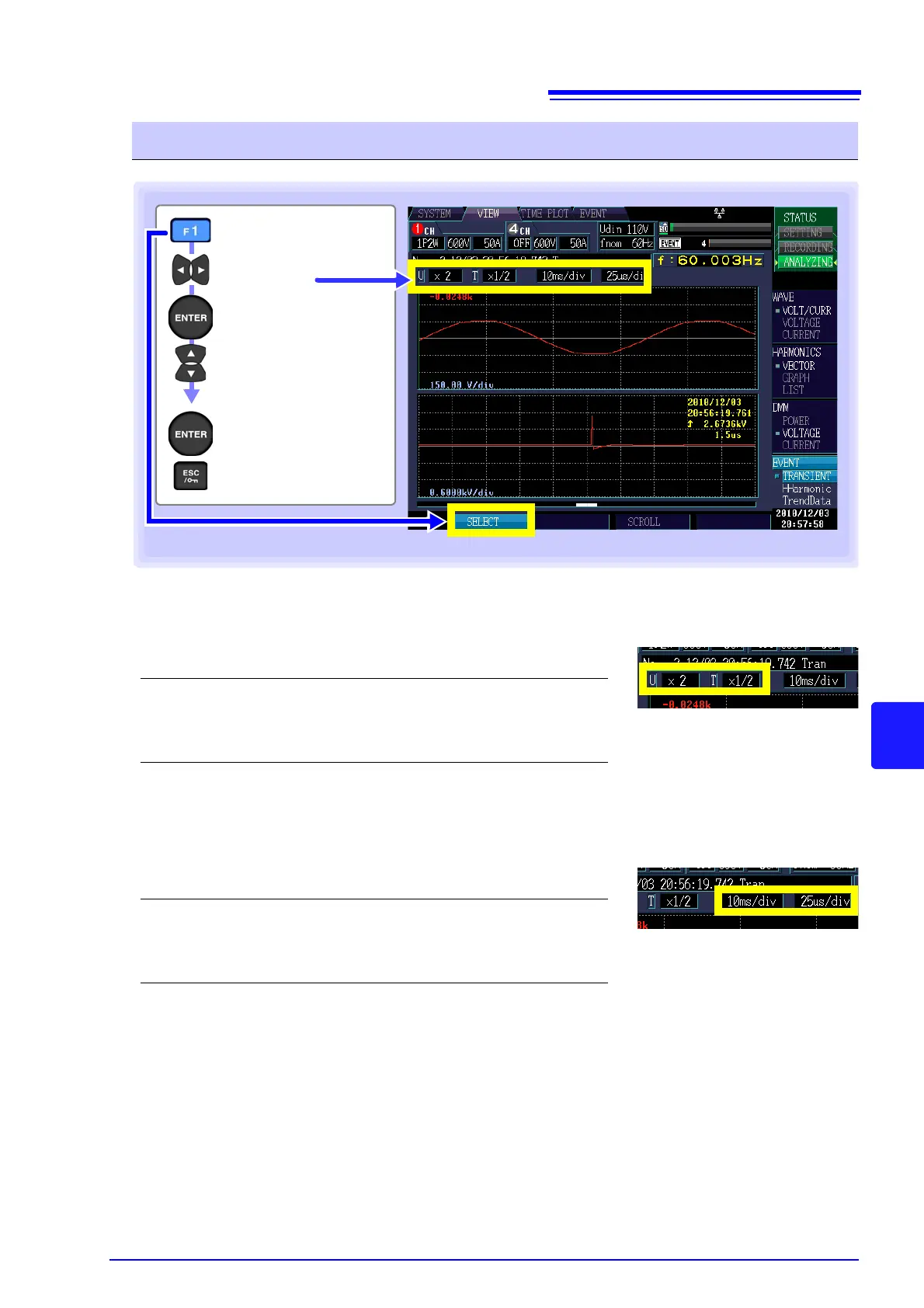

8.4 Analyzing Transient Waveforms
127
Chapter 8 Checking Events (EVENT screen)
8
Y-axis range
To reduce the waveform, increase the voltage value per division.
To enlarge the waveform, reduce the voltage value per division.
X-axis range (Tdiv)
(left: voltage waveform range; right: transient waveform range)
Selects the X-axis scale.
Enlarging and reducing the transient waveform
Display the
pull-down menu
Select the setting
Accept setting
Cancel
[SELECT]
Select the setting
Setting Contents:(  : Default setting)
Voltage waveform range (U)
x1/3, x1/2, x1
, x2, x5, x10, x20, x50
Transient waveform range (T)
x1/2
, x1, x2, x5, x10, x20
Setting Contents:(  : Default setting)
Voltage waveform range:
5ms/div, 10ms/div, 20ms/div, 40ms/div
Transient waveform range:
25s/div, 50s/div, 100s/div, 200s/div, 400s/div
