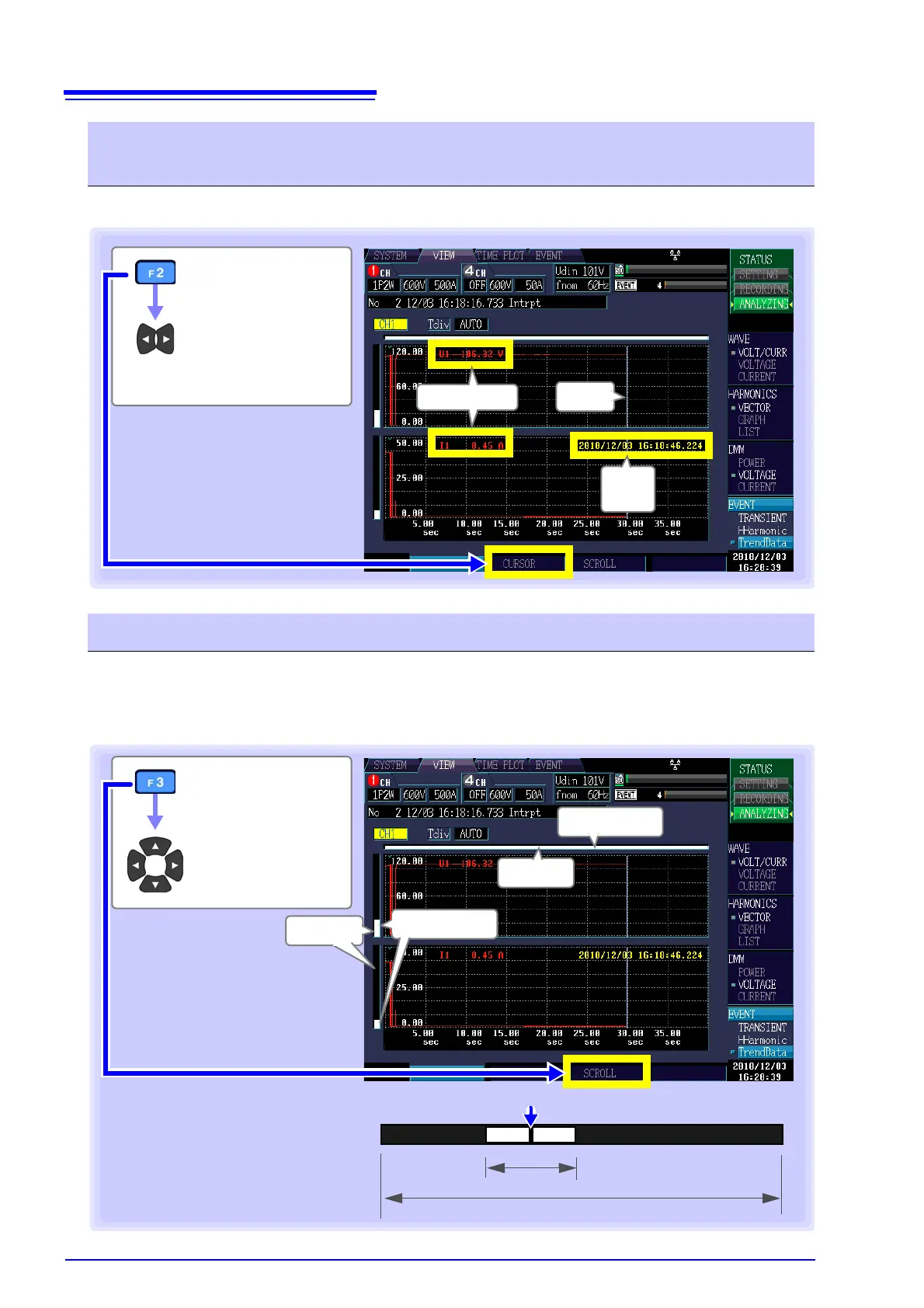

8.6 Checking Fluctuation Data

134

You can read the value and time at the cursor position on time series graphs.

During recording, the X-axis and Y-axis are automatically scaled so that the full time series graph fits on

the screen. Once recording has stopped and the X-axis or Y-axis scale has been changed so that the

waveforms do not fit on the screen, you can scroll through the time series graph by moving left, right, up,

and down.

Viewing the value and time at the cursor position (Cursor measure-

ments)

[CURSOR]

Move the vertical

cursor left and

right to read the

display value.

Cursor color

Red: CH1

Yellow: CH2

Blue: CH3

Gray: CH4

Cursor

time

Cursor value

Scrolling the waveform

[SCROLL]

Scroll through the

graph

Scroll bar

Display scope

• The display scope on the scroll bar

(shown in white) illustrates which

range of all measurement data is being

shown on the screen.

• The cursor on the scroll bar shows

where the cursor is located relative to

all measurement data.

Scroll bar

Display scope

All measurement data

Cursor position
