8.6 Checking Fluctuation Data
133
Chapter 8 Checking Events (EVENT screen)
8
Displayed channel
X-axis scale (Tdiv)
When you want to reduce the graph, make the scale smaller.
When you want to enlarge the graph, make the scale larger.
• Data can be recorded regardless of the recording item settings (p.62) and the TIME-
PLOT interval settings (p.63) (SYSTEM-DF1 [RECORDING]).
• When an event occurs while 30 s of fluctuation data is being recorded, fluctuation data is
only recorded for the first event.
• Ultimately, data can be analyzed in detail and reports generated using the 9624-50 PQA
Hi-View Pro software.

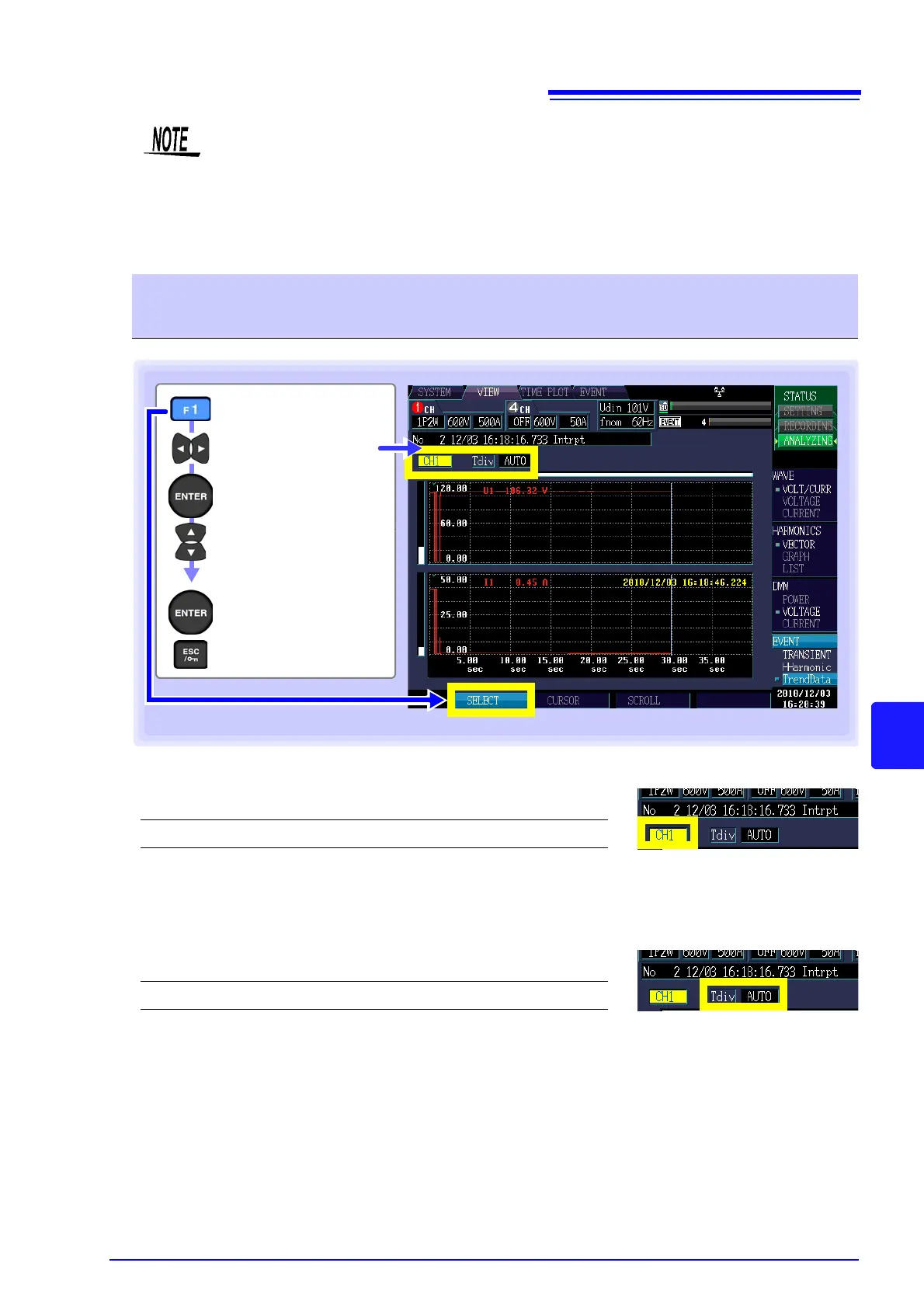

Changing the displayed channel and enlarging or reducing the graph
(changing the X-axis scale)
Display the
pull-down menu
Select the setting
Accept setting
Cancel
[SELECT]
Select the setting
Setting Contents:( : Default setting)
CH1/ CH2/ CH3/ CH4 (varies with connection)
Setting Contents:( : Default setting)
AUTO, x5, x2, x1, x1/2, x1/5, x1/10
To Next Page
