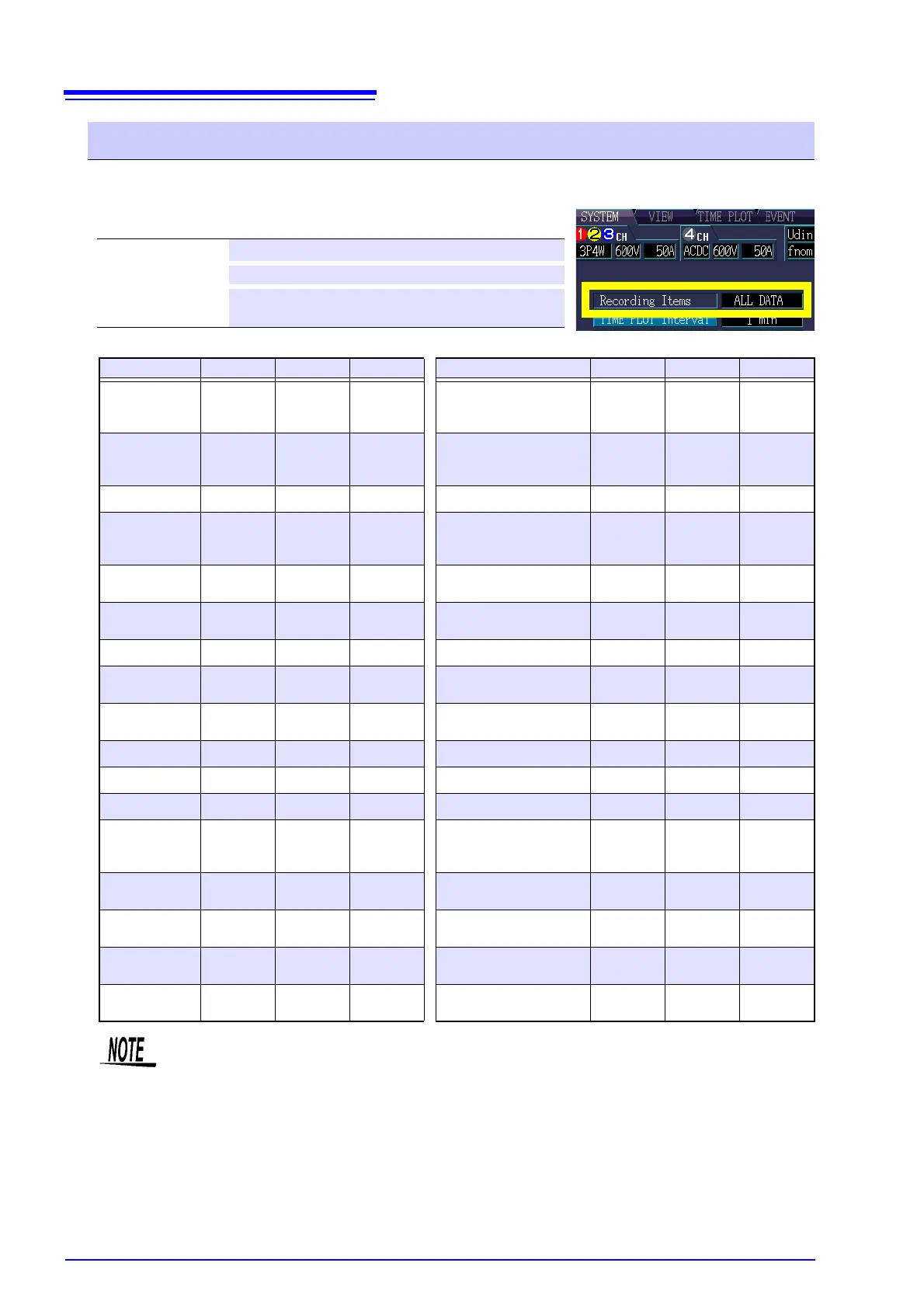

5.3 Changing the Recording Settings
62
Sets the type of measurement data.
See:"Key operation during configuration" (p.61)
Note: If 400 Hz is selected, ALL DATA can not be selected.
Recording Items
Setting Contents:(  : Default setting)
ALL DATA
Records all the calculation values.
P&Harm Records all calculation values except inter-harmonics.
Power
Records all calculation values except harmonics and
inter-harmonics.
Recording items Power P&Harm ALL DATA Recording items Power P&Harm ALL DATA
RMS voltage
refreshed each
half-cycle

Harmonic voltage


RMS current
refreshed each
half-cycle
  
Harmonic current

 
Frequency

Harmonic power


Frequency wave
  
Phase difference of
harmonic voltage and
harmonic current

 
10-sec
frequency

High-order harmonic
voltage phase angle


Voltage RMS
  
High-order harmonic
current phase angle

 
Current RMS

Voltage
waveform peak
  
Inter-harmonic voltage
 

Current
waveform peak

Inter-harmonic current


Active power
  
THD Voltage Percentage
  
Apparent Power

THD current percentage

Reactive Power
  
Power factor/
displacement
power factor

High-order harmonic
voltage component

Voltage
unbalance factor
  
High-order harmonic
current component
  
Current
unbalance factor

K factor

Instantaneous
flicker value
  
Integral power

Flicker
(DV10/Pst,Plt)

Detailed trend graphs are always displayed with maximum and minimum values.
