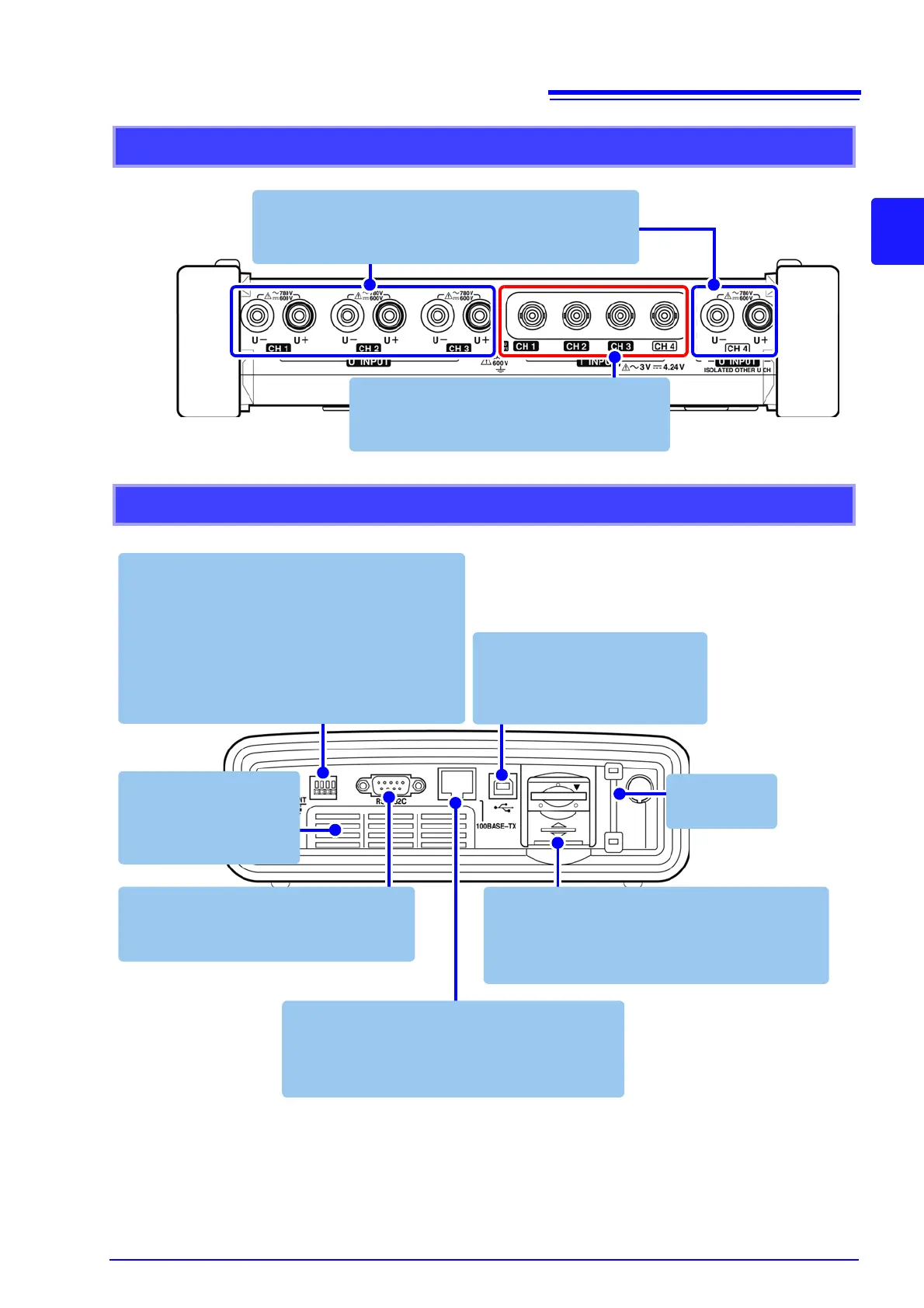

2.1 Names and Functions of Parts
17
Chapter 2 Names and Functions of Parts Basic Operations & Screens
Upper side
Current input jacks
Connect optional clamp sensors here.
See: (p.34)
Voltage input jacks
Connect the included L1000 Voltage Cord here.
See: (p.34)
Right side
LAN interface
Connect a computer here using the optional
9642 LAN Cable.
See: (p.160)
RS-232C interface
Connect a GPS box or printer using an
RS-232C cable.
External control terminal
IN : Allows use of external input as an event
trigger.
OUT : Outputs a signal when an internal event
occurs.
GND : Serves as the ground terminal for the
external event input and output terminals.
See: (p.149)
Air vents
Do not block these
vents.
See: (p.6)
USB interface
Connect a computer here using
the included USB cable.
See: (p.156)
Strap eyelet
See: (p.28)
SD memory card slot
Insert an SD memory card here. Be sure to close
the cover when recording.
See: (p.32)
