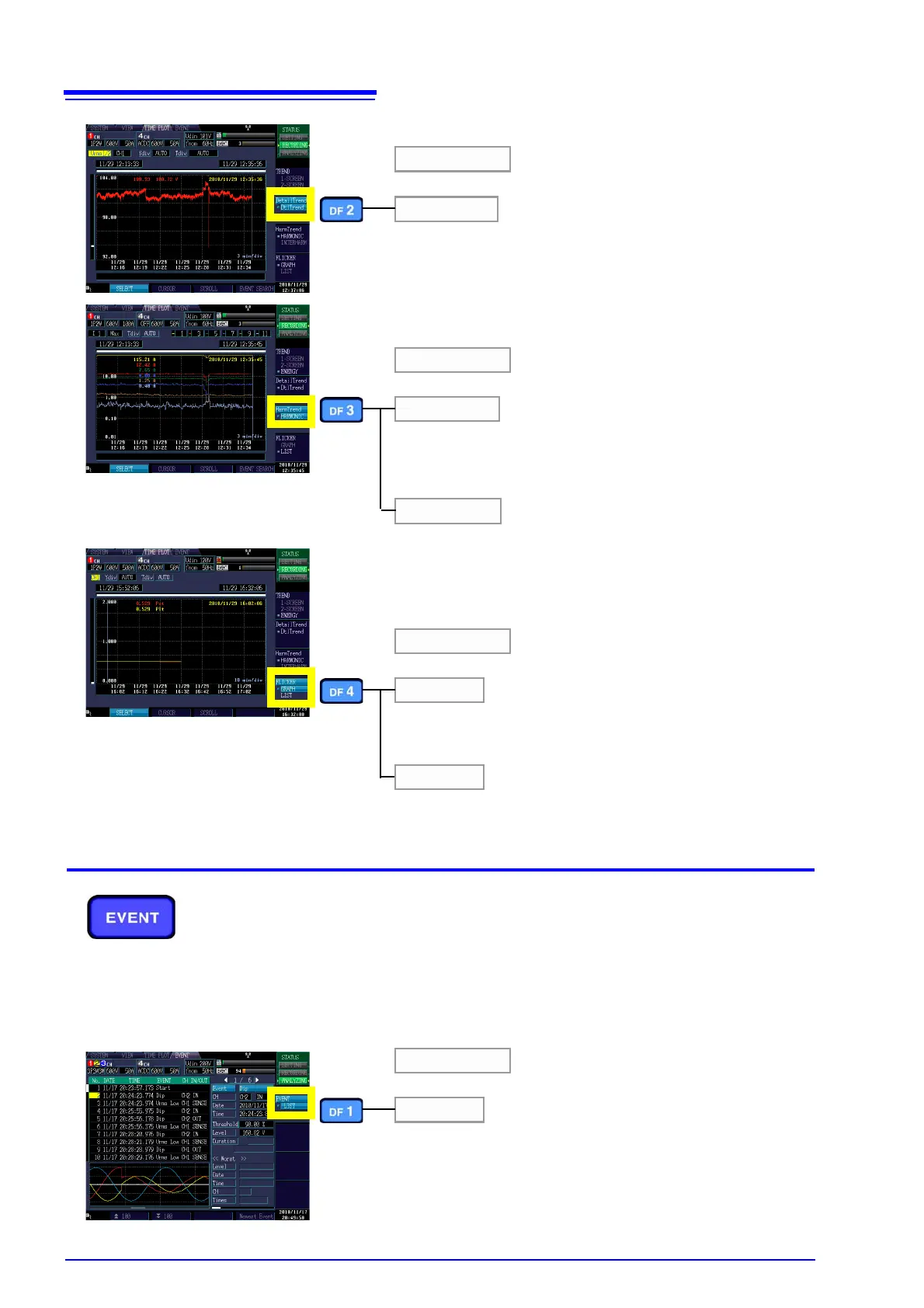

2.3 Display Items and Screen Types
26
DtlTrend
DetailTrend
Displays the maximum and minimum values during the TIME-
PLOT interval for RMS voltage refreshed each half-cycle, inrush
current, S (t), frequency cycle, or other characteristics measured
in half-cycle or one-cycle units.
See: 7.3 (p.101)
HARMONIC
INTERHARM
HarmTrend
Can display 6 orders of harmonics. Displays the average value or
maximum, minimum, and average value during the TIMEPLOT
interval as a time series. (You can select voltage, current, power,
or phase to be displayed.)
Can display 6 orders of inter-harmonics. Displays the average
value or the maximum, minimum, and average values during the
TIMEPLOT interval as a time series. (You can select voltage or
current to be displayed.)
See: 7.4 (p.107)
GRAPH
FLICKER
Displays 10V (instantaneous values) or Pst and Plt values as a
time series. You can select either 10V flicker or IEC flicker to be
displayed.
Displays 10V (instantaneous values) or Pst and Plt values as a
list. You can select either 10V flicker or IEC flicker to be dis-
played.
See: 7.5 (p.111)
LIST
LIST
EVENT
Displays a list of events in the order of their occurrence. Detailed
information and the waveform at the time of the event occurrence
are also shown for the event selected on the list. You can also an-
alyze instantaneous values, waveforms, and other information at
the time of the event's occurrence on the [VIEW] screen.
See: Chapter 8 (p.119)
Monitor event occurrence
(EVENT screen)
The [EVENT] screen is used to view a list of
events that have occurred. In addition to checking
whether a given event has occurred and the num-
ber of times it has occurred, if any, you can view
high-order harmonic measured values.
Press the EVENT key to display the [EVENT]
screen.
