5.1 Changing Measurement Conditions
57
Chapter 5 Changing Settings (as necessary)
5

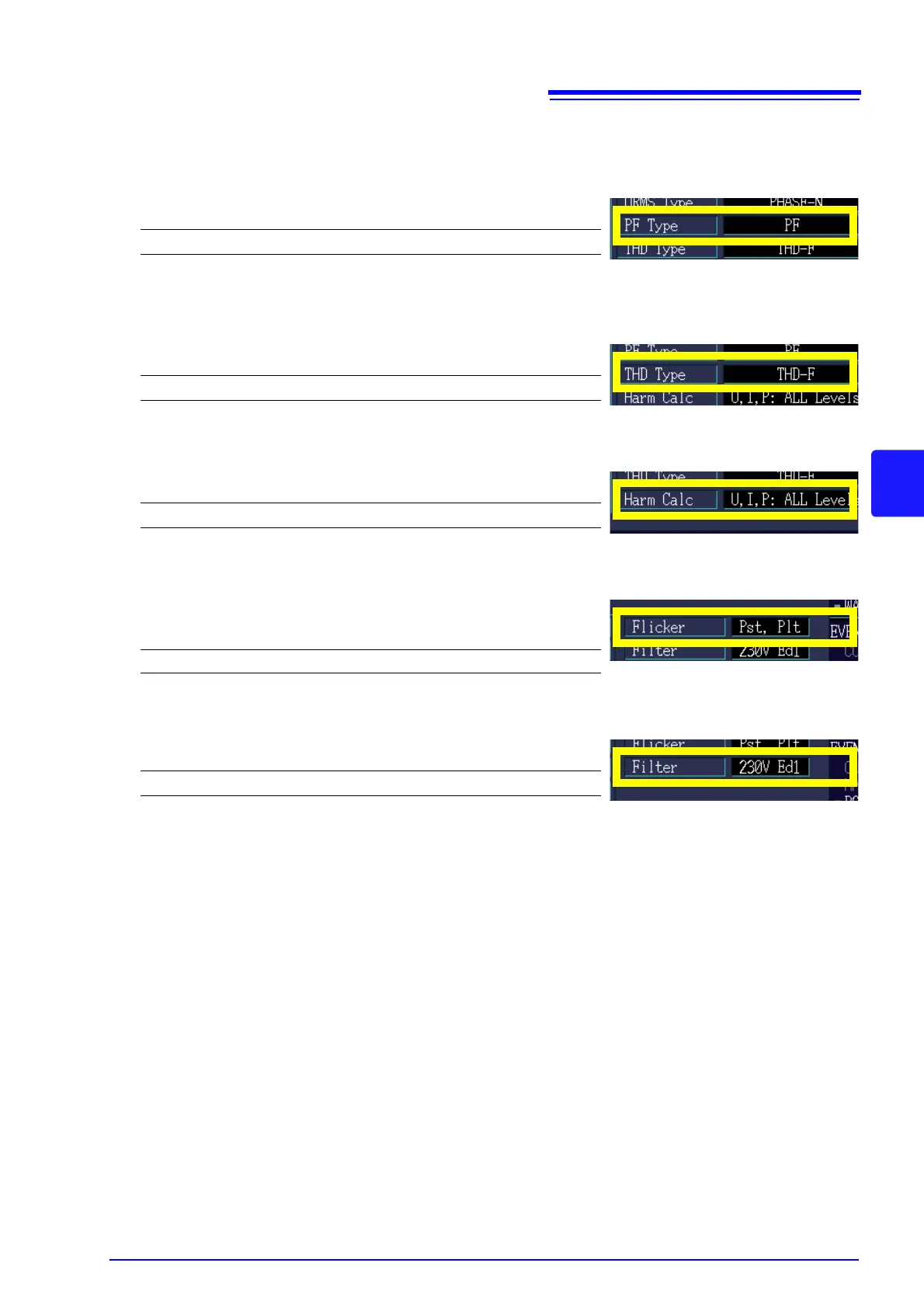

PF Type
Selects the power factor calculation method. You can select either PF (calculate using RMS values) or
DPF (calculate using fundamental wave only). The displacement power factor (DPF) is generally used for
power systems, while power factor (PF) is used when evaluating device efficiency.
THD Type
Selects the total harmonic distortion (THD) calculation method. You can select either THD-F (distortion
component/fundamental wave) or THD-R (distortion component/RMS value).
Harm Calc
Selects the harmonic calculation method.
Flicker
Selects the flicker measurement type.
Filter
Sets the lamp system when Pst and Plt are selected for flicker measurement.
Setting Contents:( : Default setting)
PF/DPF
Setting Contents:( : Default setting)
THD-F / THD-R
Setting Contents:( : Default setting)
U,I,P: All Levels/U,I,P: All % of FND/U,P: %, I: Level
Setting Contents:(Default setting: V10 when the language
is set to Japanese; otherwise, Pst, Plt)
Pst,Plt /DV10
Setting Contents:( : Default setting)
230V Ed1/120V Ed1/230V Ed2/120V Ed2
To Next Page
